Panasonic DP-C305 - Page 106

106
DP-C405/C305/C265
FEB 2008Ver. 1.1

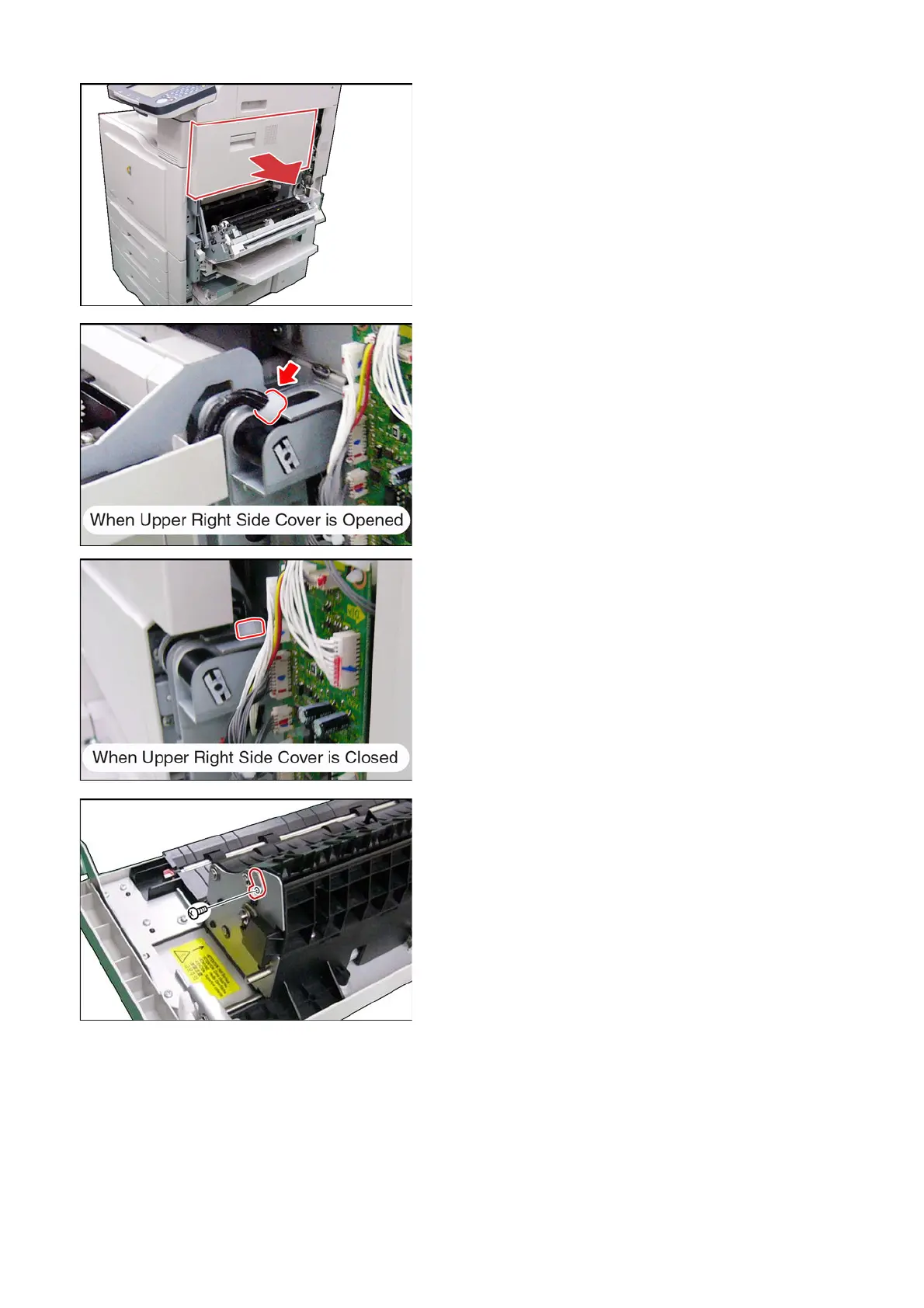

(15) Remove the ADU.
Note:
When reinstalling the ADU, make sure that the
Harnesses are reinstalled properly as illustrated.
(16) Remove 1 Screw (X5).
(17) Remove the Exit Guide Bracket (2308).
