692
DP-C405/C305/C265
FEB 2008Ver. 1.1

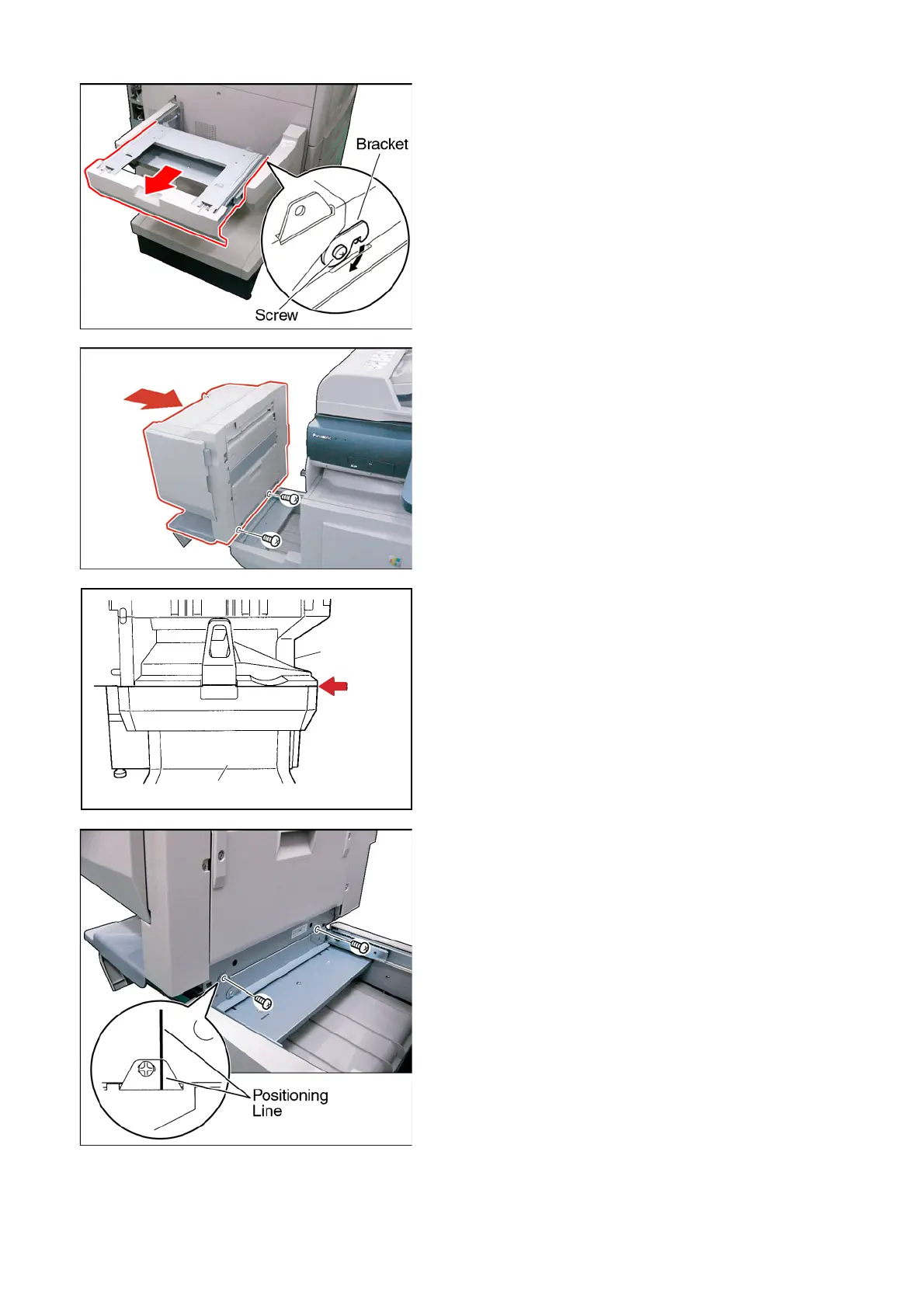

(2) Slide the Slider of the Stand outward, loosen the
Screws securing the Bracket, then secure the
Slider.
(3) Place the Finisher on the Slider of the Stand, and
loosely secure it with 2 Screws (M4 x 7).
Caution:
When mounting the Finisher in place, be sure to
insert the lower tabs of the Finisher into the holes
on top of the Slider. Ensure that there is no gap
between the Finisher, and the Stand. A gap would
indicate the Finisher is overlapping. Remove, and
re-mount the Finisher correctly.
(4) Align the positioning lines of the Finisher, and the
Stand. Keep checking the alignment by moving
the Finisher back and forth, and tighten
2 Screws when they are aligned.
No Gap
Finisher
Stand
To Next Page
