Panasonic DP-C305 - Removing the Stack Delivery Roller (Lower);Delivery Belt

828
DP-C405/C305/C265
FEB 2008Ver. 1.1

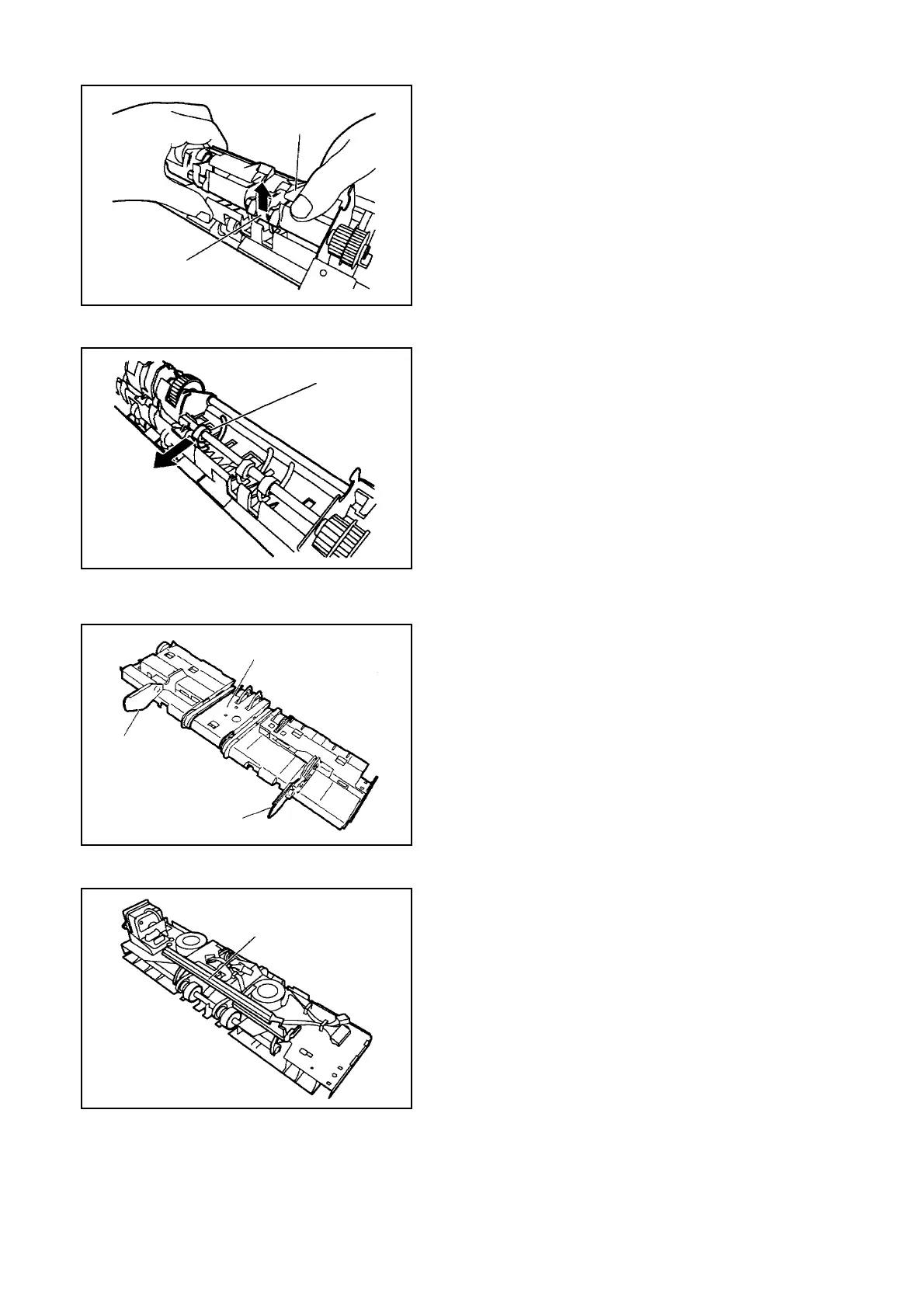

Fig. 3-062
(5) Push up the Safety Guide [4] from below to free
the Safety Guide [4] from the Shaft [5].
Fig. 3-063
(6) Remove the Paddle [6] in the direction of the
arrow.
(7) Likewise, remove the other Paddle.
Fig. 3-064
2-12. Removing the Stack Delivery Roller (lower)/
Delivery Belt
(1) Remove the Paddle Assembly, and separate it
from the Processing Tray Assembly. (See
Removing the Saddle Unit)
(2) Slide the Aligning Plate (front) [2] and the
Aligning Plate (rear) [3] of the Processing Tray
Assembly [1] by sliding them to the outside.
Fig. 3-065
(3) Remove the Processing Tray Stopper [4].
[4]
[5]
[1]
[1]
[3]
[2]
[4]
