Panasonic DP-C305 - Hole Position

758
DP-C405/C305/C265
FEB 2008Ver. 1.1
Hole Position

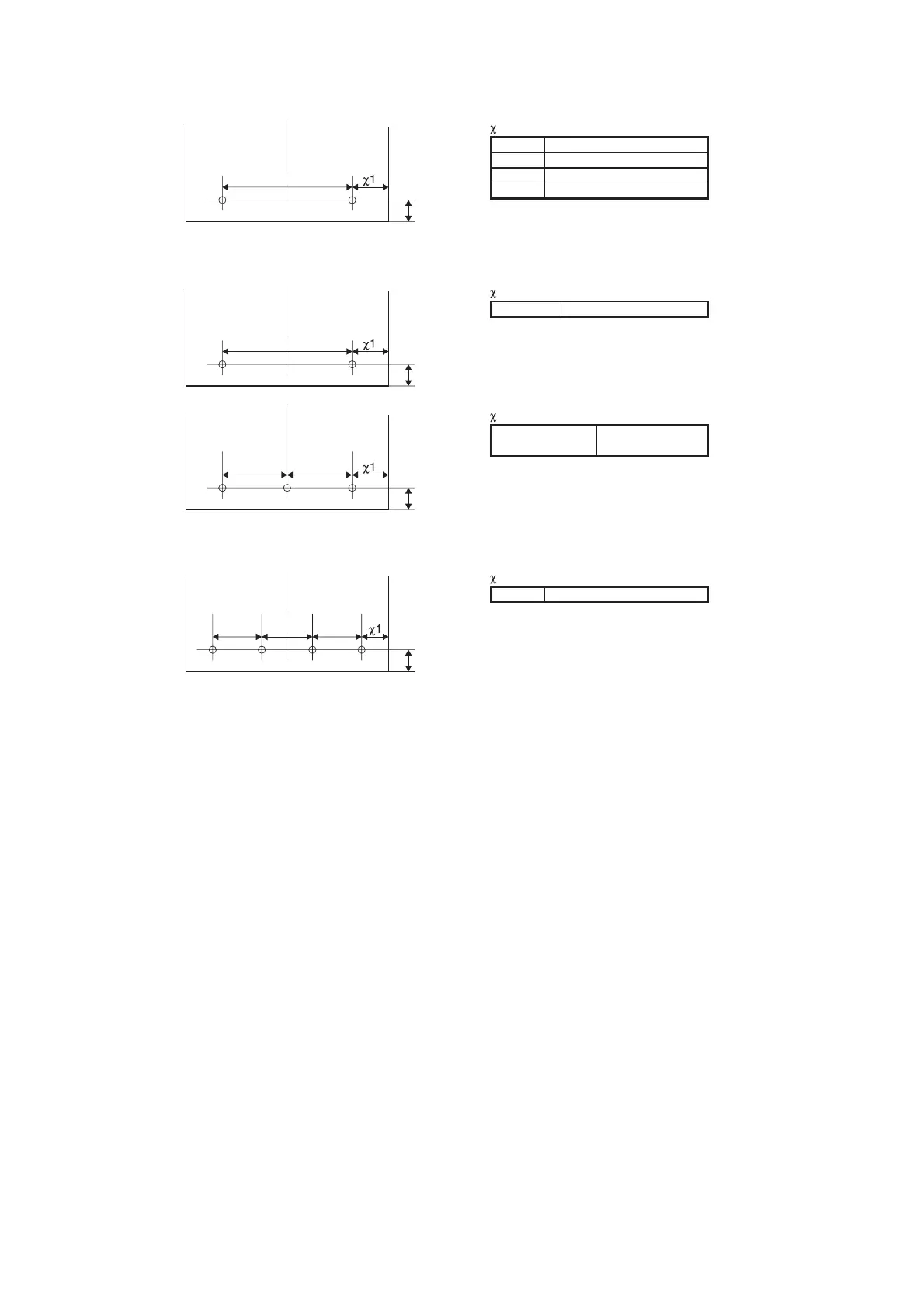

Fig. 1-003
4.27±0.12 in (108.5±3 mm)
3.48±0.12 in (88.5±3 mm)
2.56±0.12 in (65±3 mm)
2.01±0.12 in (51±3 mm)
A3/A4
B5/B4
A4-R
B5-R
1.12±0.12 in (28.5±3 mm)A3/A4
1.24±0.12 in
(31.5±3 mm)
LDR/LTR
2.87±0.12 in (73±3 mm)LGL/LTR-R
1
1
1
1
3.15±0.04 in (80±1 mm)
0.47±0.12 in
(12±3 mm)
2.76±0.04 in (70±1 mm)
0.47±0.12 in
(12±3 mm)
4.25±0.04 in
(108±1 mm)
4.25±0.04 in
(108±1 mm)
0.47±0.12 in
(12±3 mm)
3.15±0.04 in
(80±1 mm)
0.47±0.12 in
(12±3 mm)
3.15±0.04 in
(80±1 mm)
3.15±0.04 in
(80±1 mm)
[1] 2-Holes (Puncher Unit-J1)
[2] 2-/3-Holes (Puncher Unit-K1)
[3] 4-Holes (Puncher Unit-G1)
