Panasonic DP-C305 - Installing the Paper Transport Unit (DA-FK350)

677
DP-C405/C305/C265
FEB 2008Ver. 1.1
9.7. Installing the Paper Transport Unit (DA-FK350)

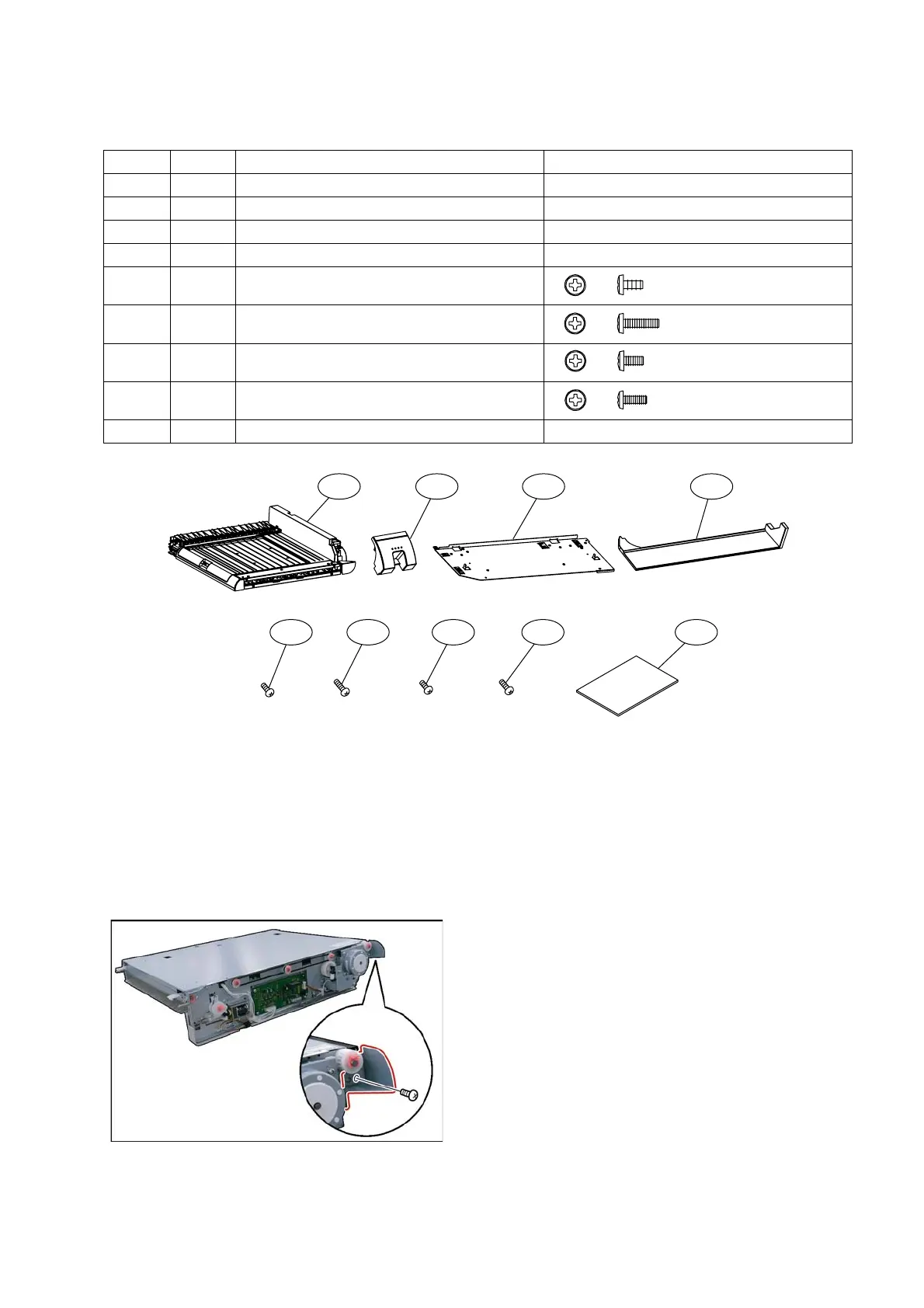

9.7.1. Contents
Note:
Refer to the Parts Manual for Part Number(s), Packing, and Accessories detail.
9.7.2. Installation
CAUTION!
Turn the Power Switch on the Left Side, and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
No. Qty. Description Remarks
1 1 Paper Transport Unit
2 1 Front Cover
31Bracket
41Bracket Cover
5 1 Screw (Short A) [M3 x 6] 0.39 N•m (4 kgf•cm)
6 1 Screw (Long) [M3 x 16] 0.59 N•m (6 kgf•cm)
7 3 Screw (Short B) [M3 x 6] 0.79 N•m (8 kgf•cm)
8 2 Screw (Medium) [M3 x 8] 0.59 N•m (6 kgf•cm)
9 1 Installation Instructions This document
Note:
1. For Finisher Option (DA-FSxxx), skip to step (3).
2. For Exit Tray (Outer) (DA-XT320), follow the
steps below.
(1) Remove 1 Screw.
(2) Remove the Gear Cover Bracket.
1
2 3
5
4
8
7
9
6
