Panasonic DP-C305 - Middle 2-Point Stapling; Middle 2-Point Stapling (Bind Mode)

784
DP-C405/C305/C265
FEB 2008Ver. 1.1

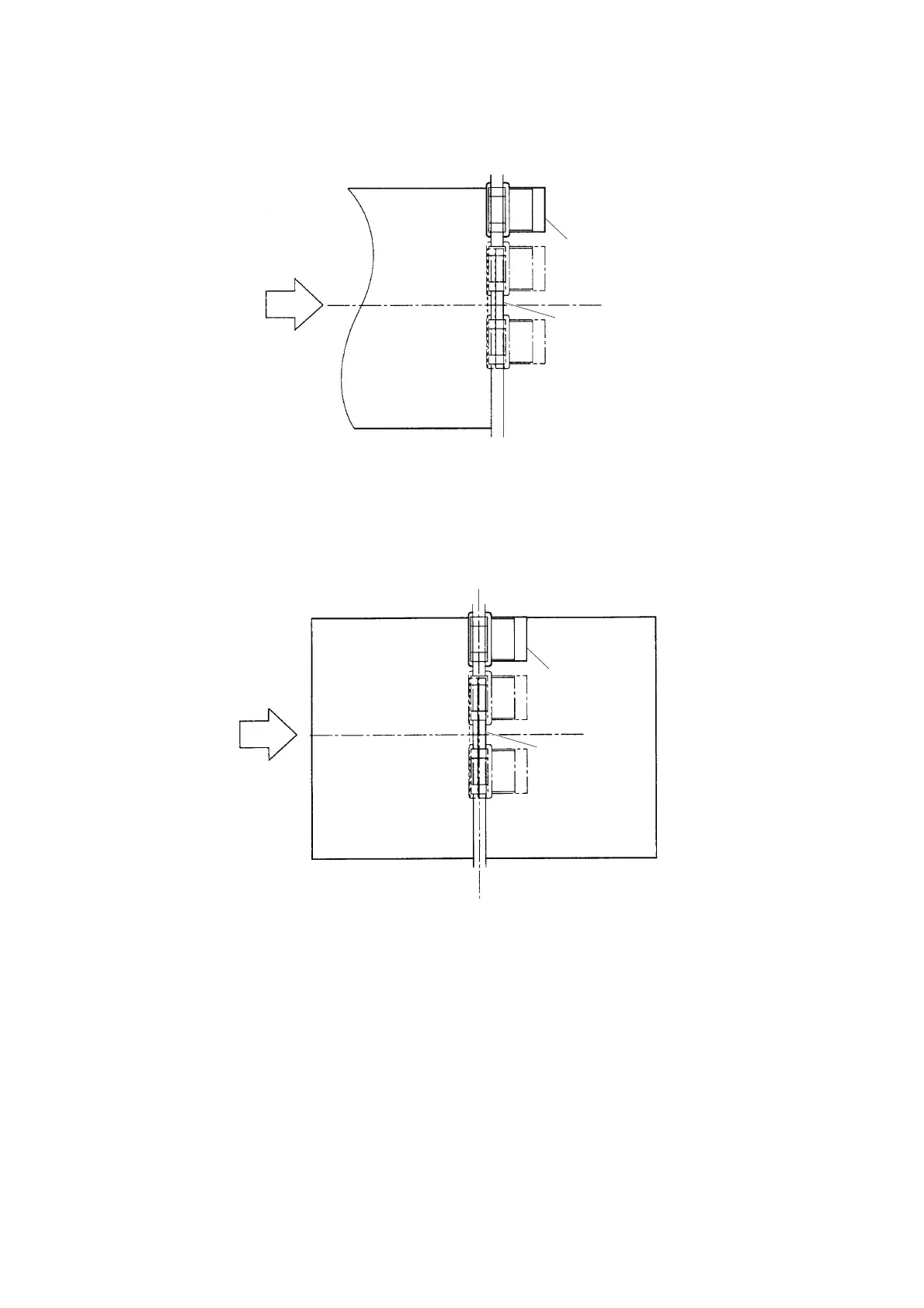

c. Middle 2-Point Stapling
The Stapler waits at the back. The Stapler moves to and returns from the stapling position for each
stapling operation. The Stapler first staples a paper stack at the rear stapling position, and then
staples it at the front stapling position.
Fig. 2-032
d. Middle 2-Point Stapling (Bind Mode)
The Stapler waits at the back. The stapler moves to and returns from the stapling position for each
stapling operation. The stapler first staples a paper stack at the rear stapling position, and then
staples it at the front stapling position.
Fig. 2-033
Feed direction
Standby position
Stapling position
Stapling position
Stapler
Stopper
Feed direction
Standby position
Stapling position
Stapling position
Stapler
Stopper
