760
DP-C405/C305/C265
FEB 2008Ver. 1.1

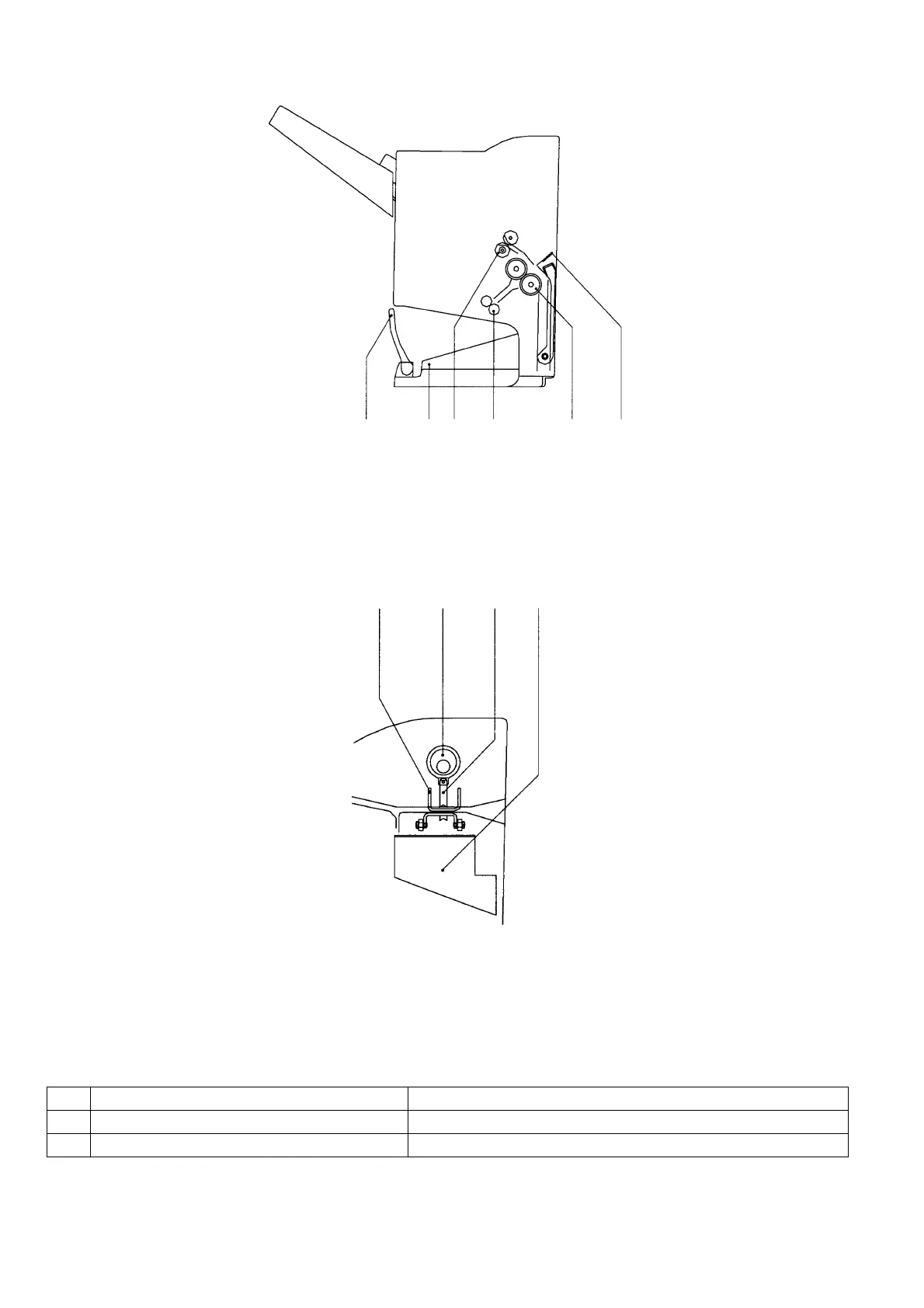

2. Saddle Unit
Fig. 1-005
3. Punch Unit (Option)
Fig. 1-006
12.1.1.4. Routine Maintenance by the User
Table 1-003
[1] Bind Stopper [2] Bind Tray
[3] Stack Feed Roller [4] Bind Delivery Roller
[5] Paper Fold Roller [6] Paper Pushing Plate
(1) Die (2) Cam
(3) Hole Puncher (Punch Blade) (4) Punch Waste Case
No. Item Timing
1 Staple Cartridge (Replacement) When prompted (indicator on host machine control panel)
2 Punch Waste Removal (Optional) When prompted (indicator on host machine control panel)
[1] [2] [3] [4] [5] [6]
[1] [2] [3] [4]
To Next Page
