9.13. Installing the Mechanical Counter (PJWEF2170PU)
(Supplied as a Service Part for PU version (USA and Canada, etc.))
9.13.1. Contents
Note:
Refer to the Parts Manual for Part Number(s), Packing, and Accessories detail.
9.13.2. Installation
CAUTION!
Turn the Power Switch on the Left Side, and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
Two (2) Mechanical Counters can be installed as Counter 1 and 2.

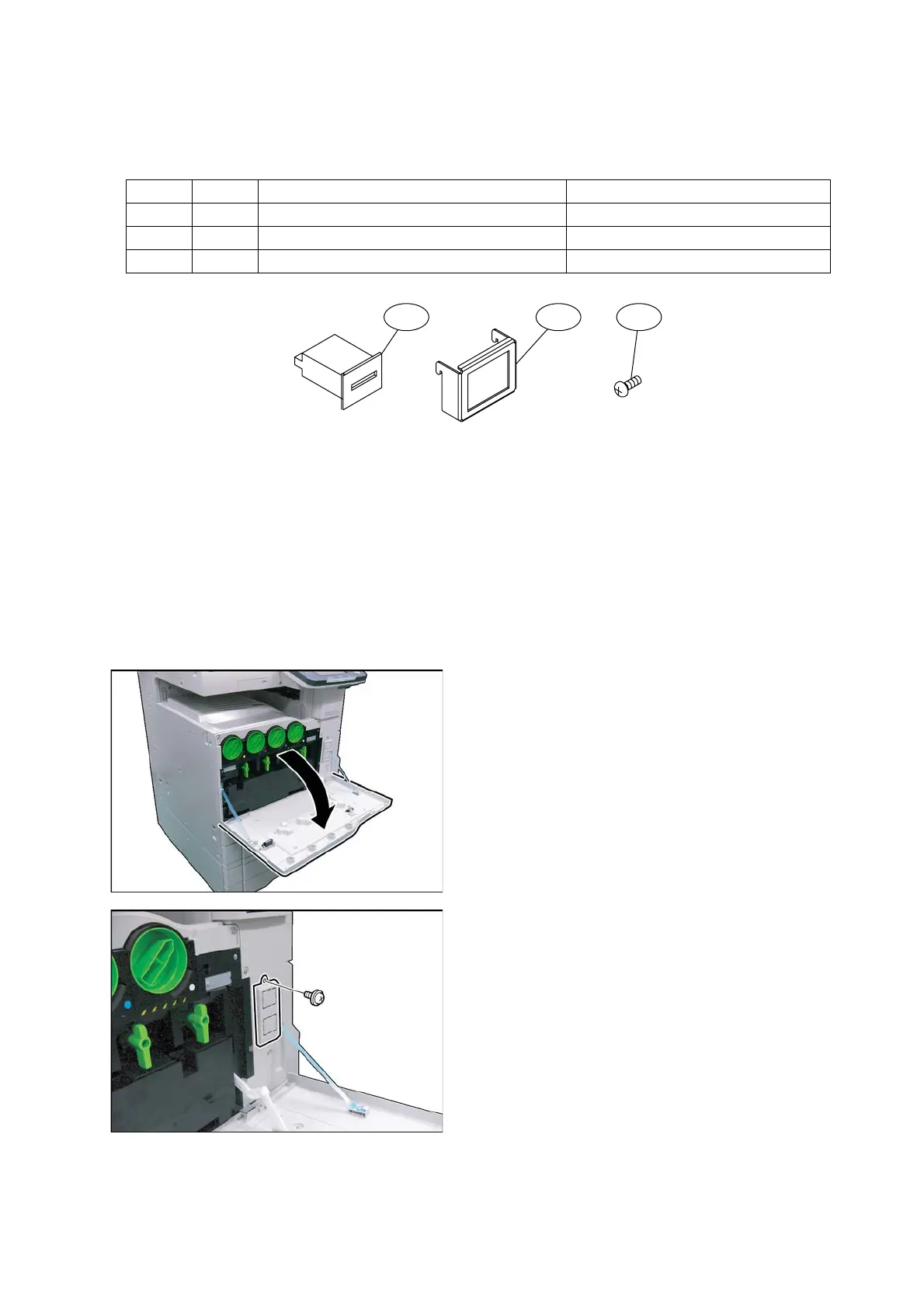

No. Qty. Description Remarks
1 1 Mechanical Counter
2 1 MC Bracket
31Screw
(1) Open the Front Cover.
(2) Remove 1 Screw.
(3) Remove the Mechanical Counter Cover.
2 3
1
To Next Page
