Panasonic DP-C305 - STR Unit and Intermediate Transfer (IT) Unit

127
DP-C405/C305/C265
FEB 2008Ver. 1.1
2.2.10. STR Unit and Intermediate Transfer (IT) Unit

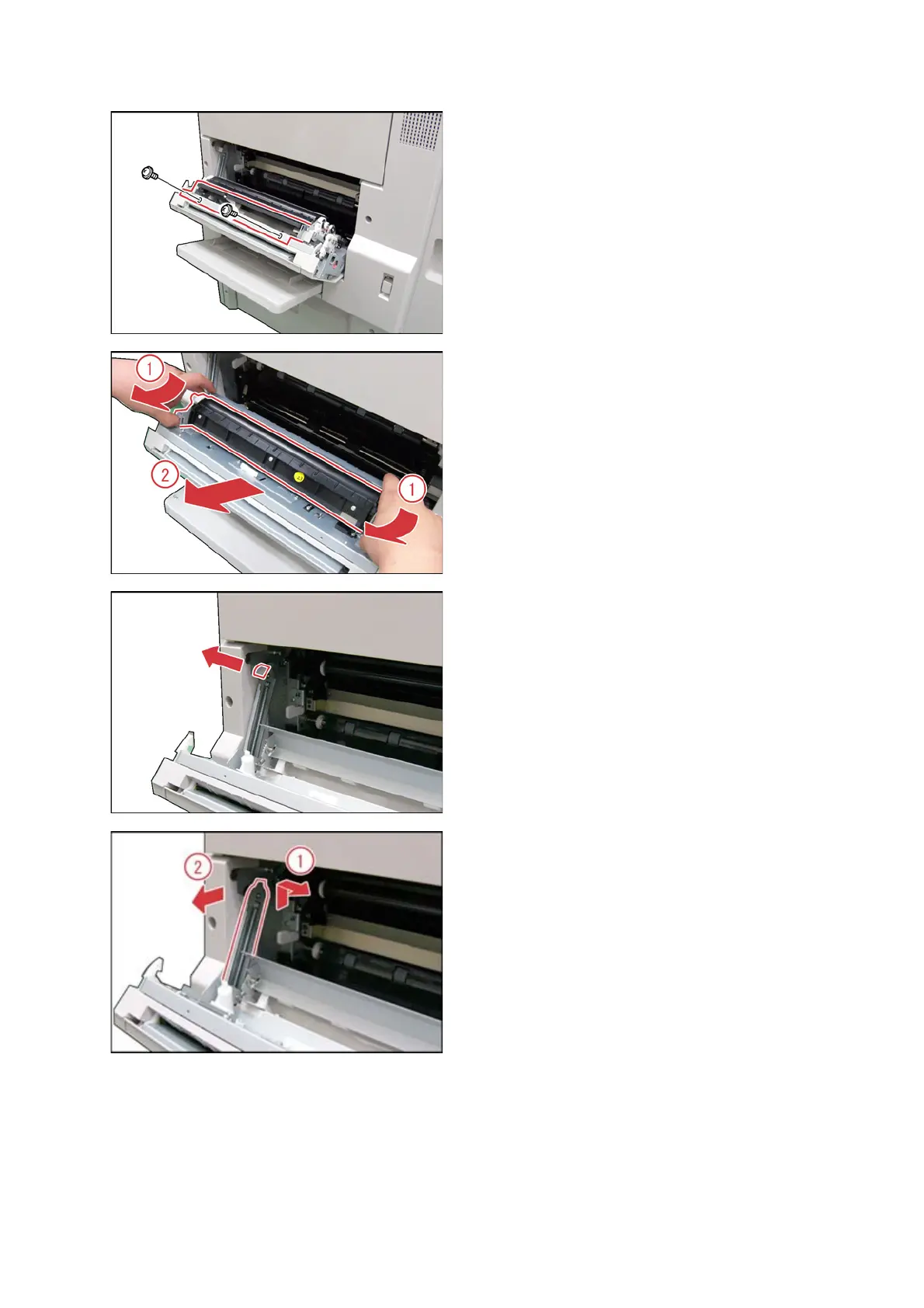

(1) Open the Sheet Bypass Tray.
(2) Open the Lower Right Side Cover.
(3) Remove 2 Screws (Y16).
(4) Remove the Guide Bracket Assembly.
(5) Remove the STR Unit (2535).
(6) Remove the Snap Ring (2714).
(7) Remove the Support Arm Assembly.
