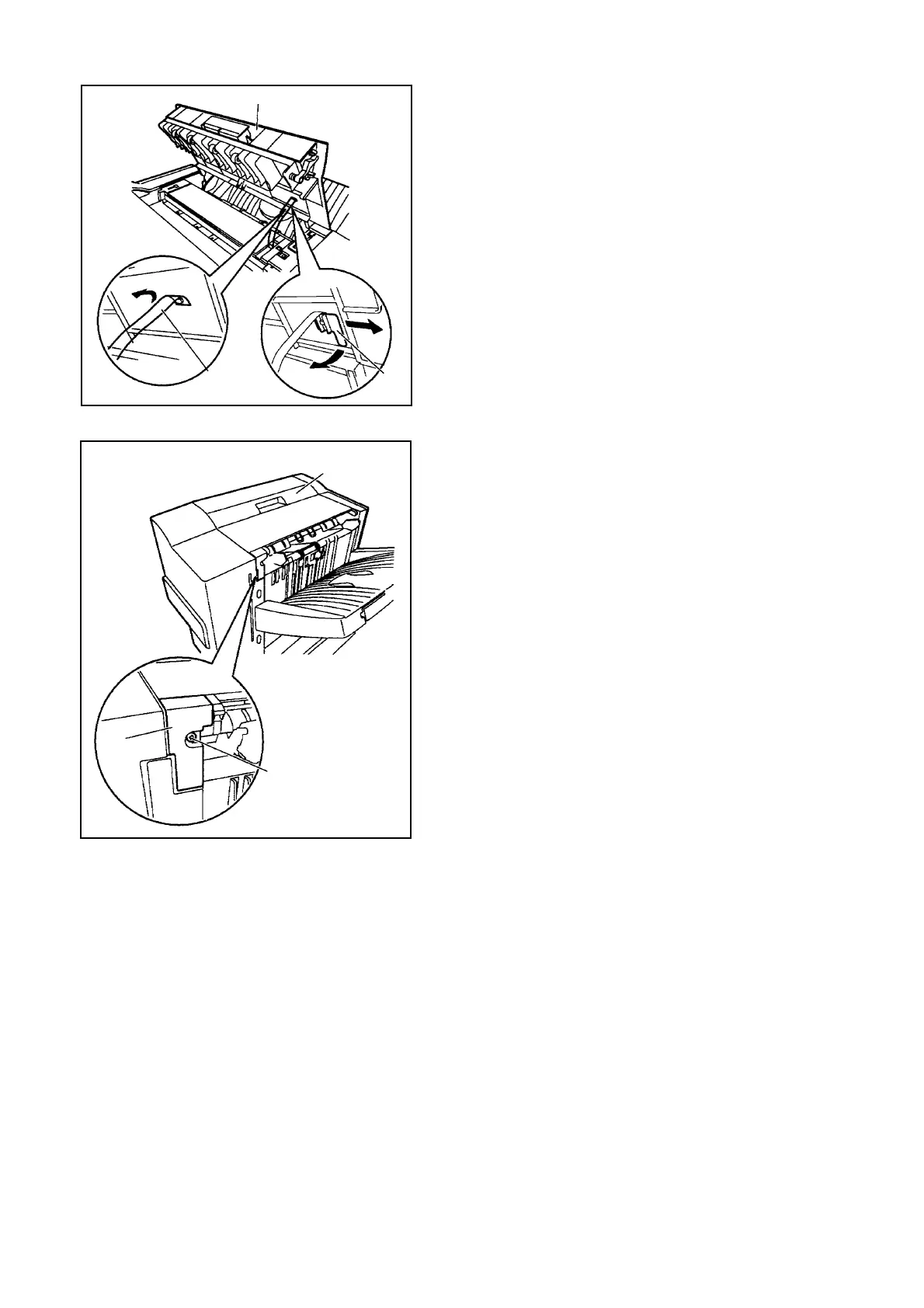

1-4. Removing the Upper Cover
(1) Open the Upper Cover [1], and turn the Cover
Band Retainer [2] to the left to remove it.
(2) Remove the Cover Band [3].
Fig. 3-008
(3) Remove 1 Screw [4], and detach the Processing
Tray Rear Cover [5]; then, detach the Upper
Cover [6].
[3]
[2]
[1]
[6]
[5]
[4]
