Panasonic DP-C305 - Removing the LED PCB

837
DP-C405/C305/C265
FEB 2008Ver. 1.1

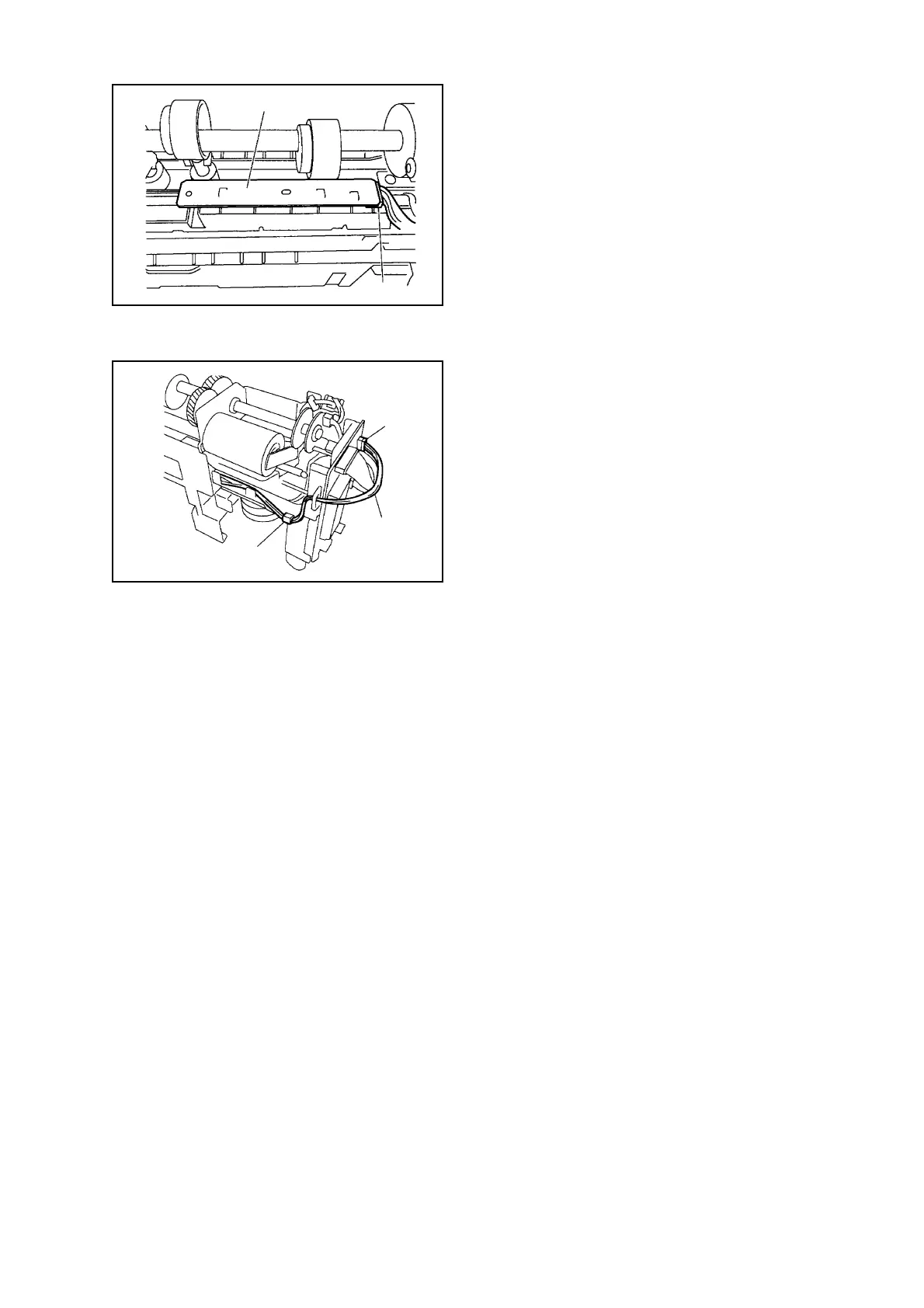

Fig. 3-087
(4) Disconnect the Connector [5] to remove the
Photosensor PCB [6].
Fig. 3-088
2-3. Removing the LED PCB
(1) Remove the Waste Case.
(2) Disconnect Connector J1005 [1].
(3) Remove the Harness [3] from the Harness
Guide [2].
[6]
[5]
[1]
[3]
[2]
