DP-C405/C305/C265
FEB 2008Ver. 1.1
4. Stack Delivery Operation
Stack delivery takes place when 10 sheets of large-size paper, or 30 sheets of small-size paper (A5-
and STMT-sizes: 10 sheets) have been stacked on the Processing Tray with them offset in either
direction.
The Paddle Motor rotates, and the Swing Guide descends to hold the paper stack between the Upper
and Lower Stack Delivery Rollers. The Delivery Motor rotates in the forward direction to rotate the
Delivery Rollers, feeding the paper stack in the delivery direction. The Delivery Belt Home Position
Sensor is turned OFF. The Delivery Motor is driven a specified number of pulses, causing the Swing
Guide to ascend. Next, the Paper Delivery Motor is driven. Next, the Delivery Motor is driven to deliver
the paper stack with the nails of the Delivery Belt that rotates in sync with the Stack Delivery Rollers.

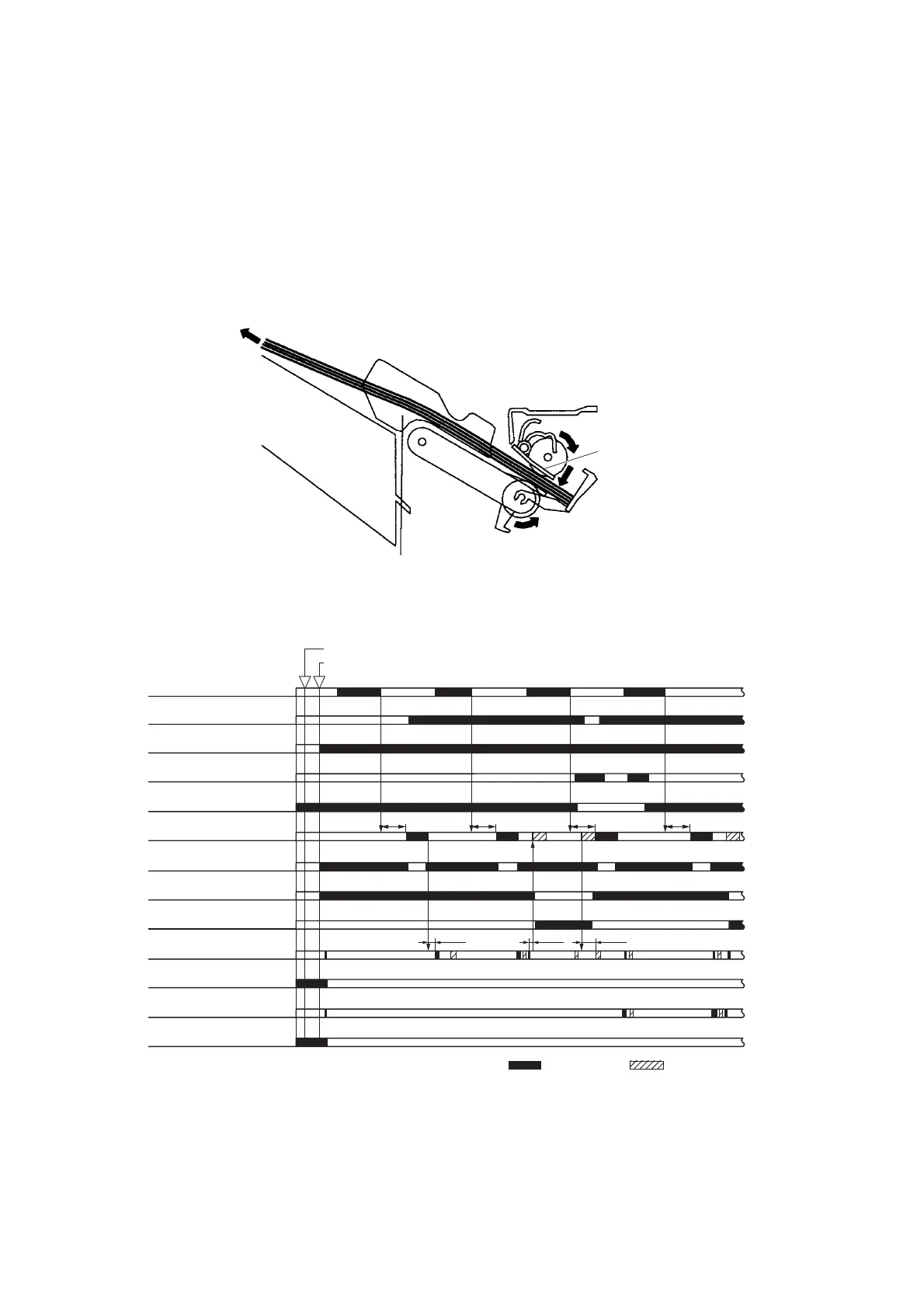

Fig. 2-021
Job offset sequence
Fig. 2-022
Swing Guide
Inlet Sensor (PI1)
Start signal
360msec 360msec
60msec
30msec
220msec
CW rotation CCW rotation
360msec 360msec
Host machine delivery signal
Processing Tray Sensor
(PI6)
Feed Motor (M1)
Delivery Motor (M3)
Delivery Belt Home
Position Sensor (PI7)
Paddle Home Position
Sensor (PI2)
Swing Guide Home
Position Sensor (PI3)
Stapler Safety Switch
(MS3)
Alignment Motor (Front)
(M4)
Aligning Plate Home Position
Sensor (Front) (PI4)
Aligning Plate Home Position
Sensor (Rear) (PI5)
Alignment Motor (Rear)
(M5)
Paddle Motor (M2)
