781
DP-C405/C305/C265
FEB 2008Ver. 1.1
12.1.2.3.3. Delivery Operation after Stapling
When stapling is complete, the Finisher Controller PCB drives the Deliver Motor in the forward direction to
feed the paper stack (sandwiched between the Stack Delivery Rollers) in the delivery direction.
The Delivery Belt Home Position Sensor is turned OFF. The Delivery Motor is driven a specified number of
pulses, causing the Swing Guide to ascend. At the same time, the Slide Motor is driven to return the stapler
back to the standby position, followed by driving of the Delivery Motor. Then, the paper stack is delivered
with the nails of the Delivery Belt that rotates in sync with the Stack Delivery Rollers.

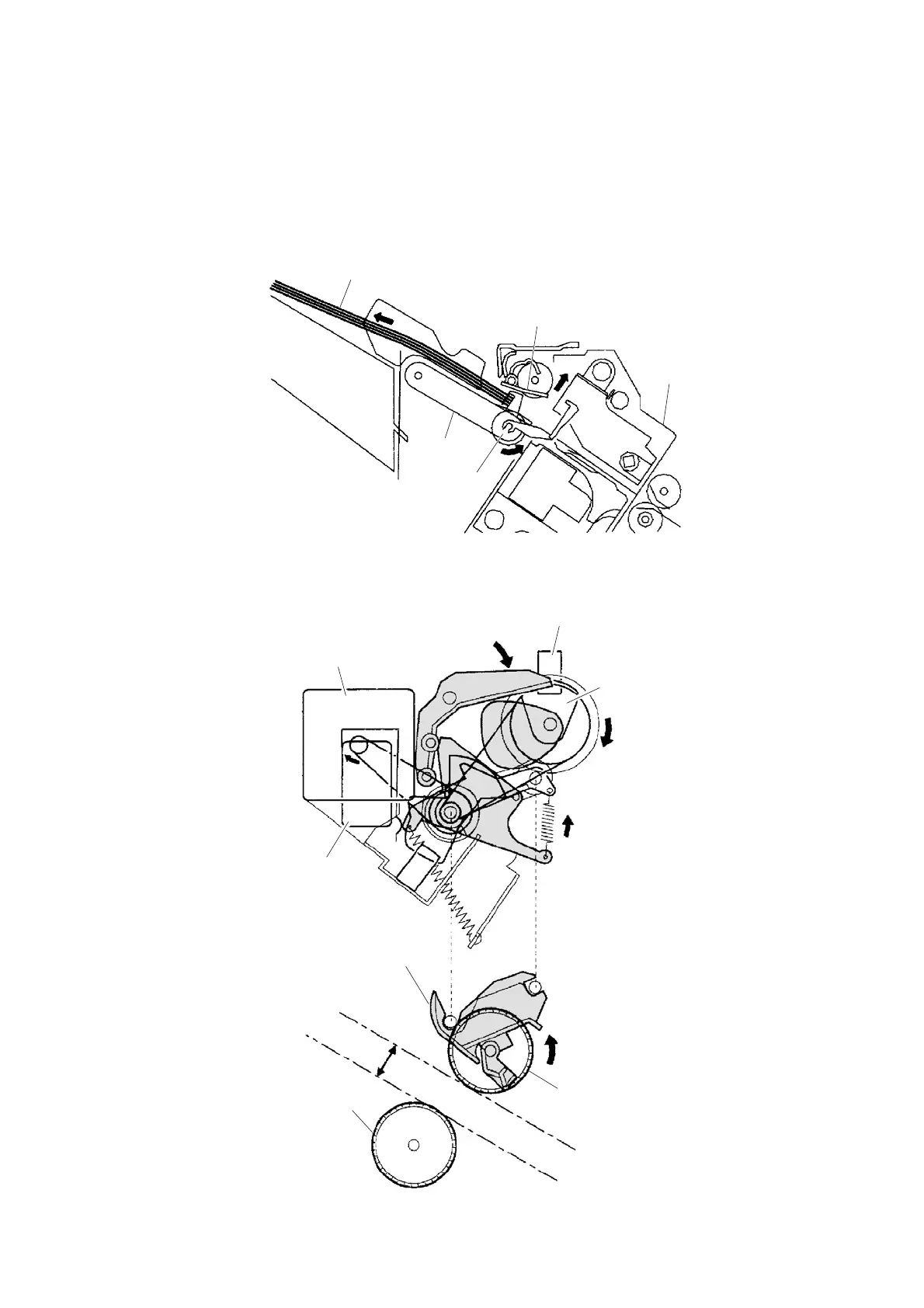

Fig. 2-026
Fig. 2-027
Paper Stack
Swing Guide
Delivery Belt
Stack Delivery
Roller (Lower)
Delivery Tray
Stapler
Paddle Motor (M2)
Staple Safety
Switch (MS3)
Swing Guide
Stack Delivery Roller (Lower)
Stack Delivery Roller (Upper)
Swing Guide
Home Position Sensor (PI3)
Light-Shielding Plate
To Next Page
