12.1.1.3. Names of Parts
12.1.1.3.1. Cross Section

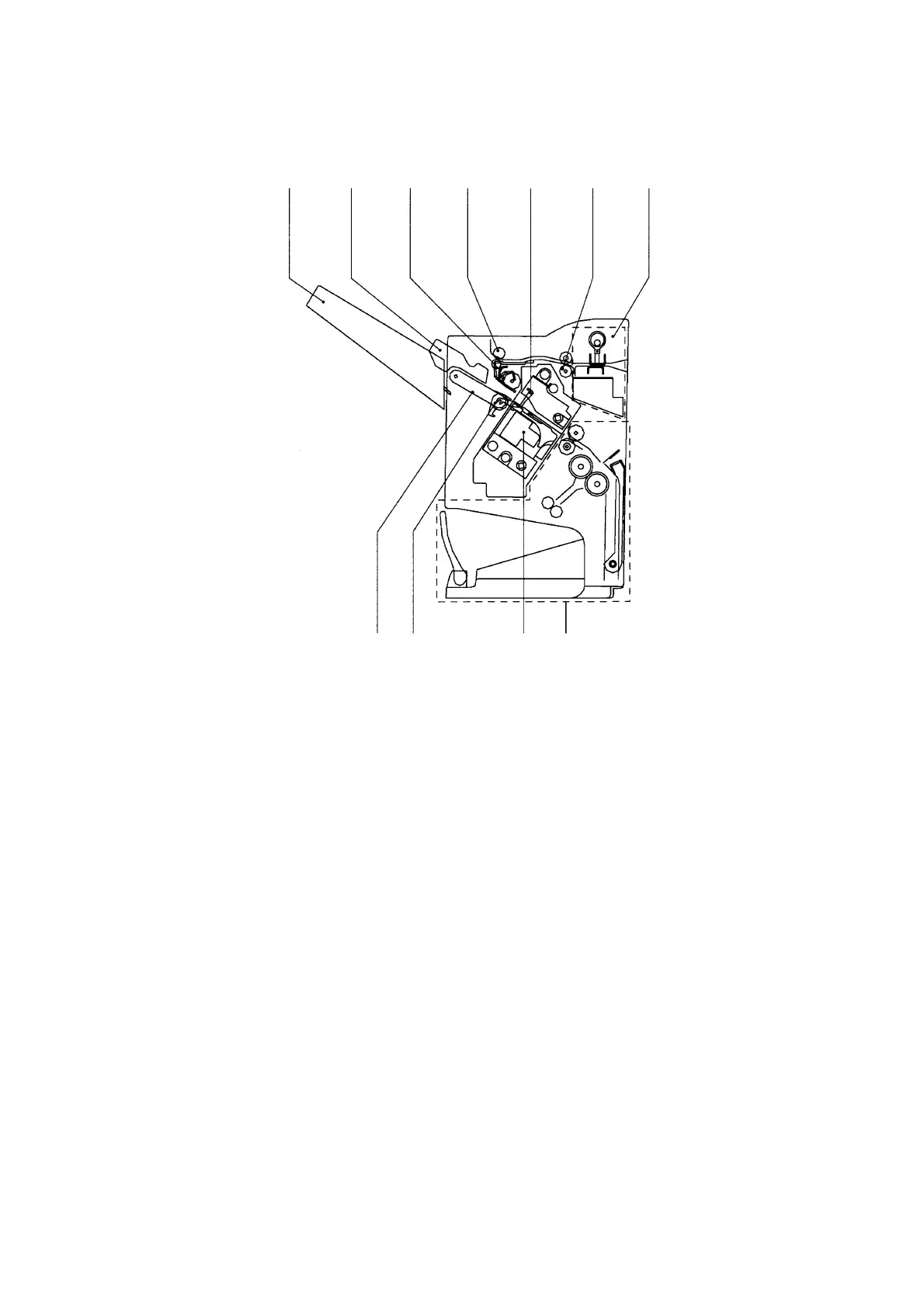

1. Finisher Unit
Fig. 1-004
[1] Delivery Tray [2] Aligning Plate (Front, Rear)
[3] Paddle [4] Delivery Roller
[5] Processing Tray Stopper [6] Feed Roller
[7] Punch Unit (Option) [8] Delivery Belt
[9] Stack Delivery Roller [10] Stapler
[11] Saddle Unit
[1] [2] [3]
[8] [9] [10] [11]
[4] [5] [6] [7]
