110
DP-C405/C305/C265
FEB 2008Ver. 1.1
(35) Remove 1 E-Ring (J7).
(36) Remove the Latch (2210).
(37) Remove the Left Latch Spring (2211).
(38) Remove the Bushing (2213).
(39) Remove the Latch Lever Shaft (2209)
Assembly.

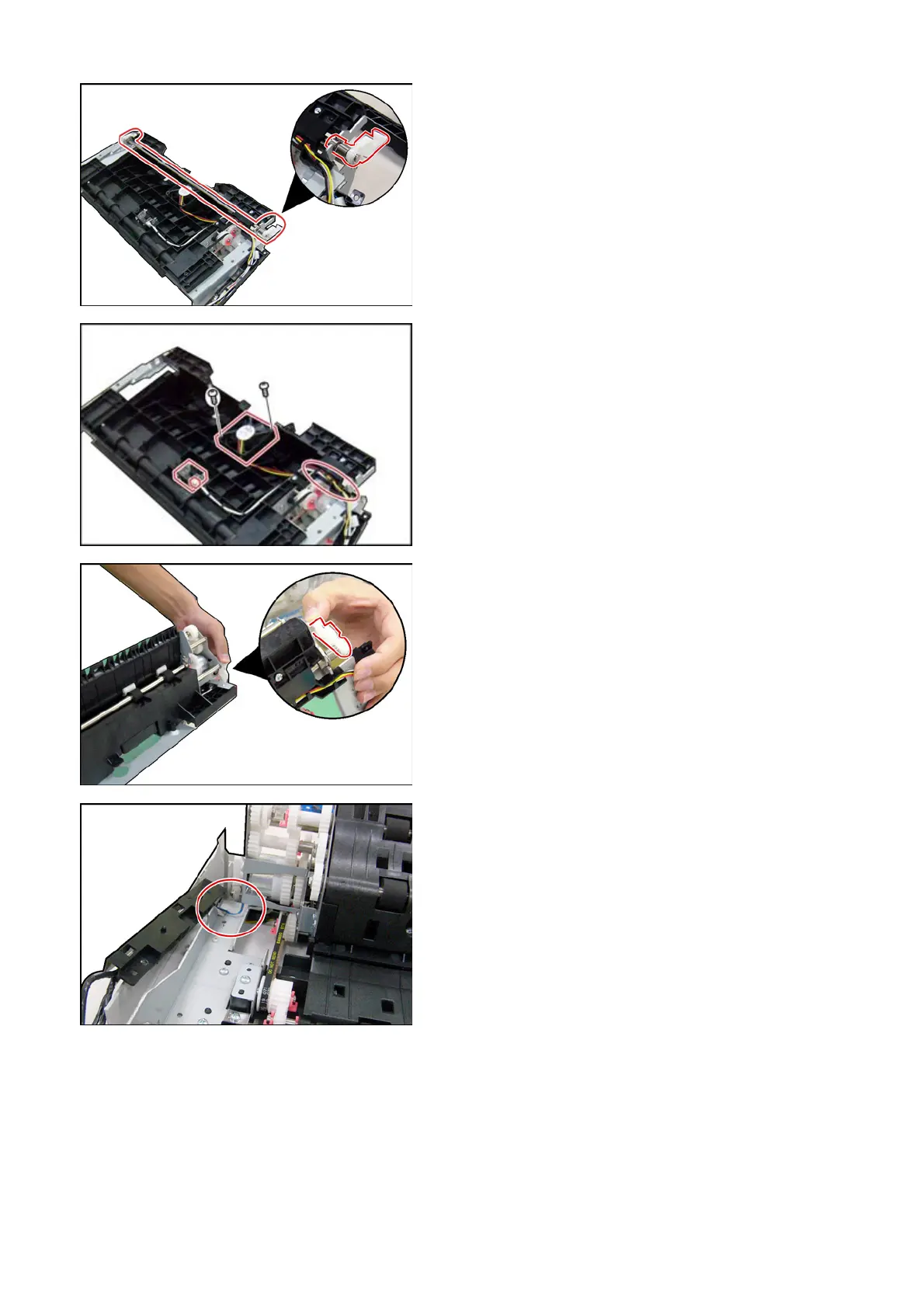

(40) Release the Harness from the Clamps.
(41) Remove 2 Screws (X4).
(42) Remove the Right Cover Fan (2214).
<Paper Path Sensor (ADU1)>
(43) Disconnect the Harness.
(44) Remove the Photo Sensor (1819-31).
Note:
When reinstalling the ADU Plate Assembly to the
ADU Cover, pull up the notch as illustrated.
Caution:
When reinstalling the Cover, do not pinch the
Harness with the Steel Plate.
To Next Page
