140
DP-C405/C305/C265
FEB 2008Ver. 1.1

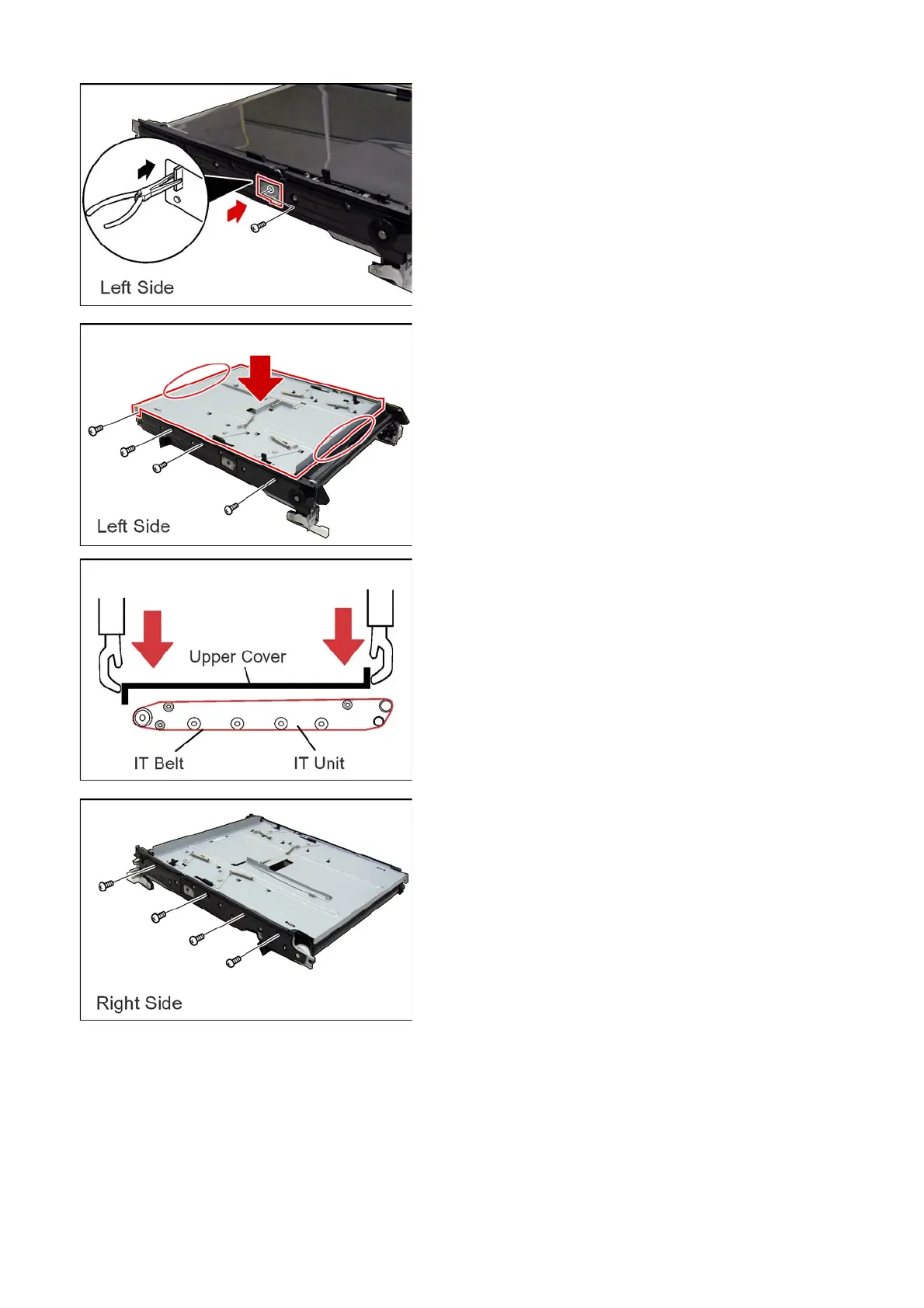

(62) Using a pair of pliers as illustrated, reinstall the
Left Position Plate (3416).
(63) Reinstall 1 Black Screw (Y29).
(64) Reinstall the Handle Plate Bracket Assembly.
(65) Reinstall 4 Black Screws (Y29) from the left
side.
Caution:
When Removing and Installing the Handle Plate
Bracket Assembly, hold both sides of the Bracket
as illustrated, and don’t touch the IT Belt.
(66) Reinstall 4 Black Screws (Y29) from the right
side.
To Next Page
