Panasonic DP-C305 - Page 235

235
FEB 2008Ver. 1.1
DP-C405/C305/C265

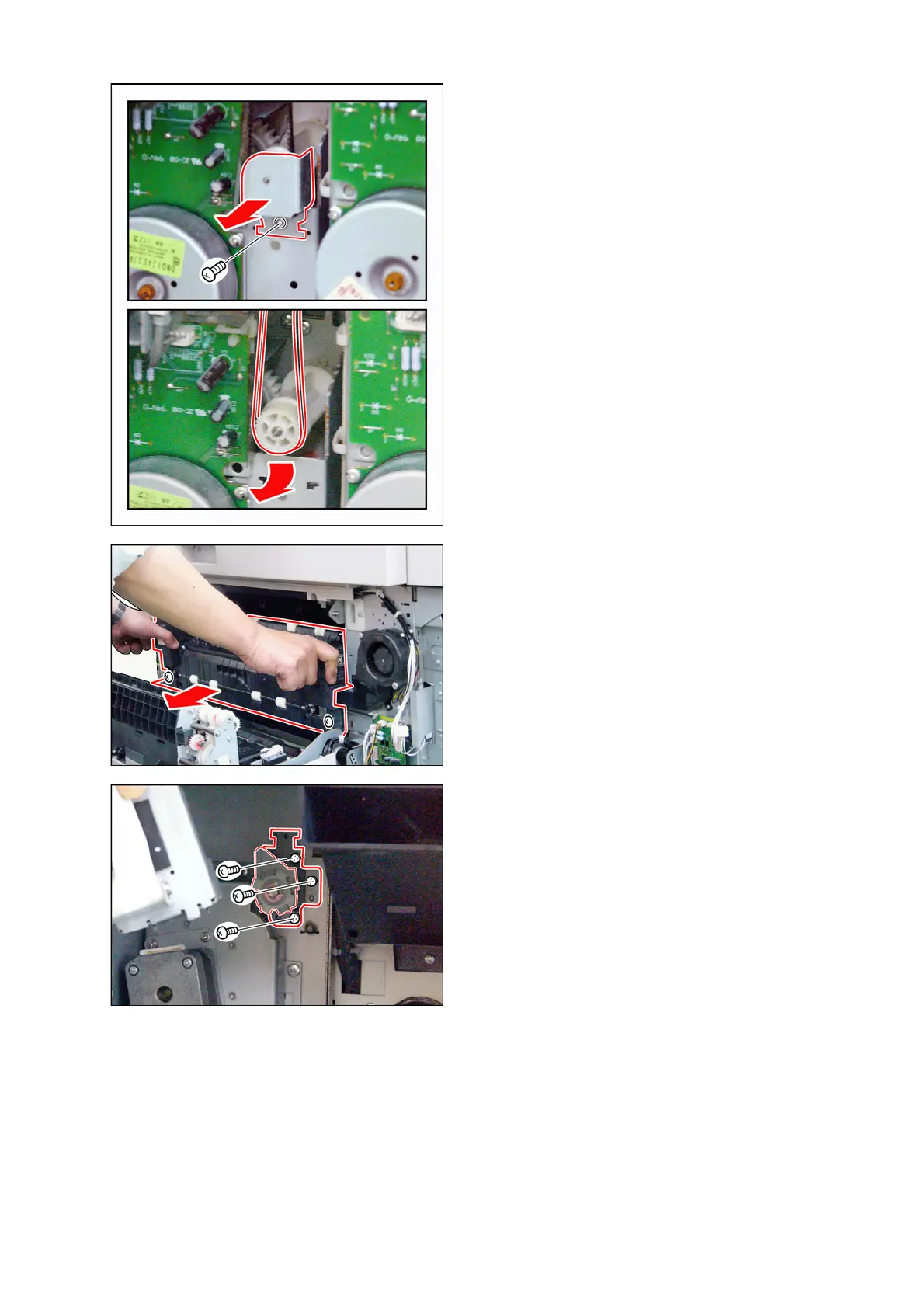

(15) Remove 1 Screw (X5).
(16) Remove the Exit Pulley Plate.
(17) Remove the Belt.
<Replacing the Fuser Unit>
(18) Loosen 2 Screws.
(19) Pull the Fuser Unit out.
(20) Remove 3 Screws (X5).
(21) Remove the Exit Roller Assembly.
