329
FEB 2008Ver. 1.1
DP-C405/C305/C265
CN522-3 ADULT
ADU PCB
CN400-10
ADU Serial Latch
CN522-4 ADUSIIN
ADU PCB
CN400-9
ADU Serial Data Input
CN522-5 ADUSICLK
ADU PCB
CN400-8
ADU Serial Clock
CN522-6 ADUSIOUT
ADU PCB
CN400-7
ADU Serial Data Output
CN522-7 PGND_1
ADU PCB
CN400-6
Power Ground
CN522-8 PGND_2
ADU PCB
CN400-5
Power Ground
CN522-9 +24VM_1
ADU PCB
CN400-4
+24V DC Power Supply
CN522-10 +24VM_2
ADU PCB
CN400-3
+24V DC Power Supply
CN522-11 GND_1
ADU PCB
CN400-2
Ground
CN522-12 +5V_1
ADU PCB
CN400-1
+5V DC Power Supply
CN522-13 pOHPSN
ADU PCB
CN400-24
OHP Sensor Signal
CN522-14 pRRSN
ADU PCB
CN400-23
Registration Sensor Signal
CN522-15 N.C. No Connection
EC PCB

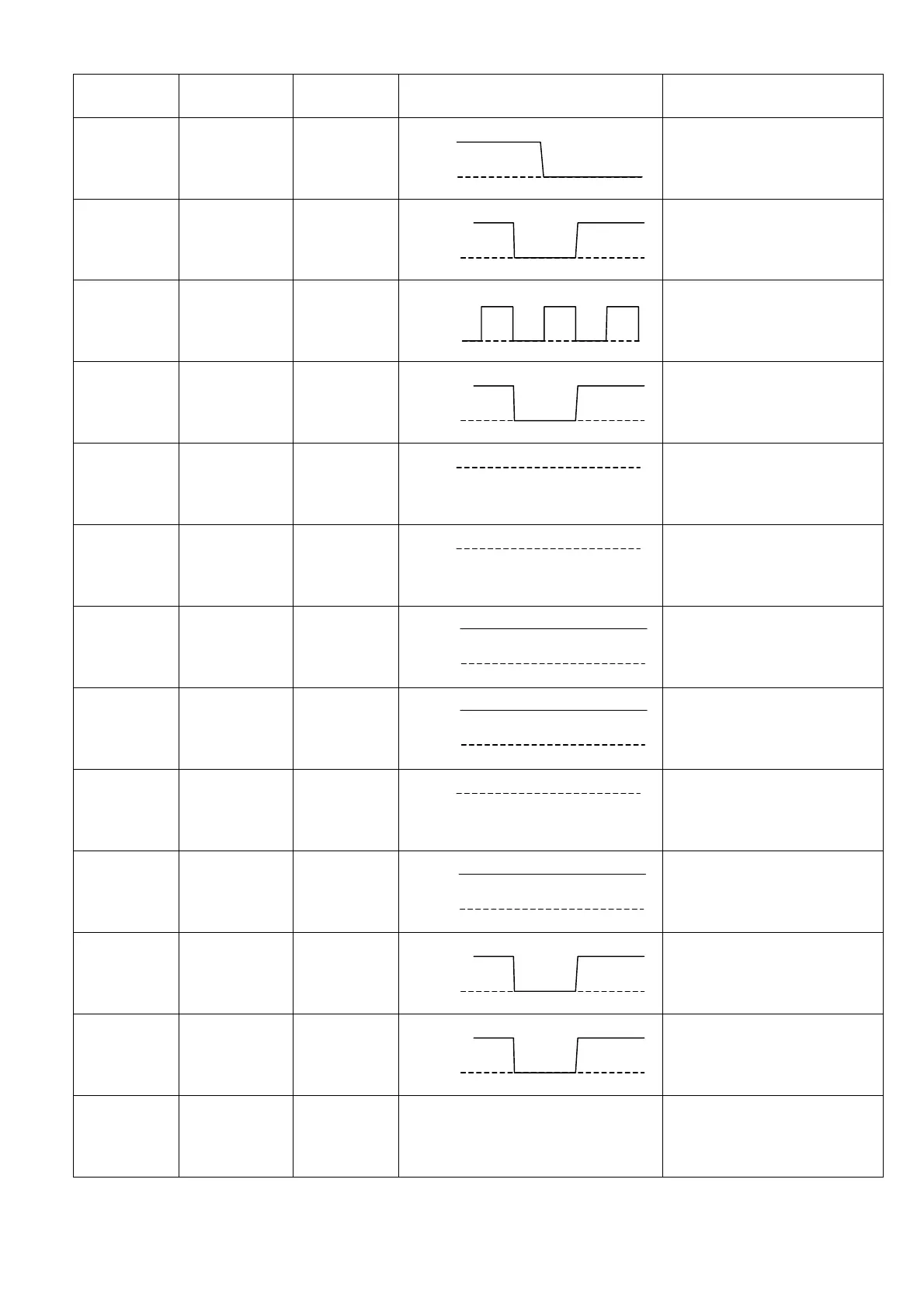

Pin No.
Signal Name Destination Signal Waveform Function
+5V
0V
+5V
0V
+5V
0V
+5V
0V
0V
0V
+24V
0V
+24V
0V
0V
+5V
0V
+5V
0V
+5V
0V
