385
FEB 2008Ver. 1.1
DP-C405/C305/C265

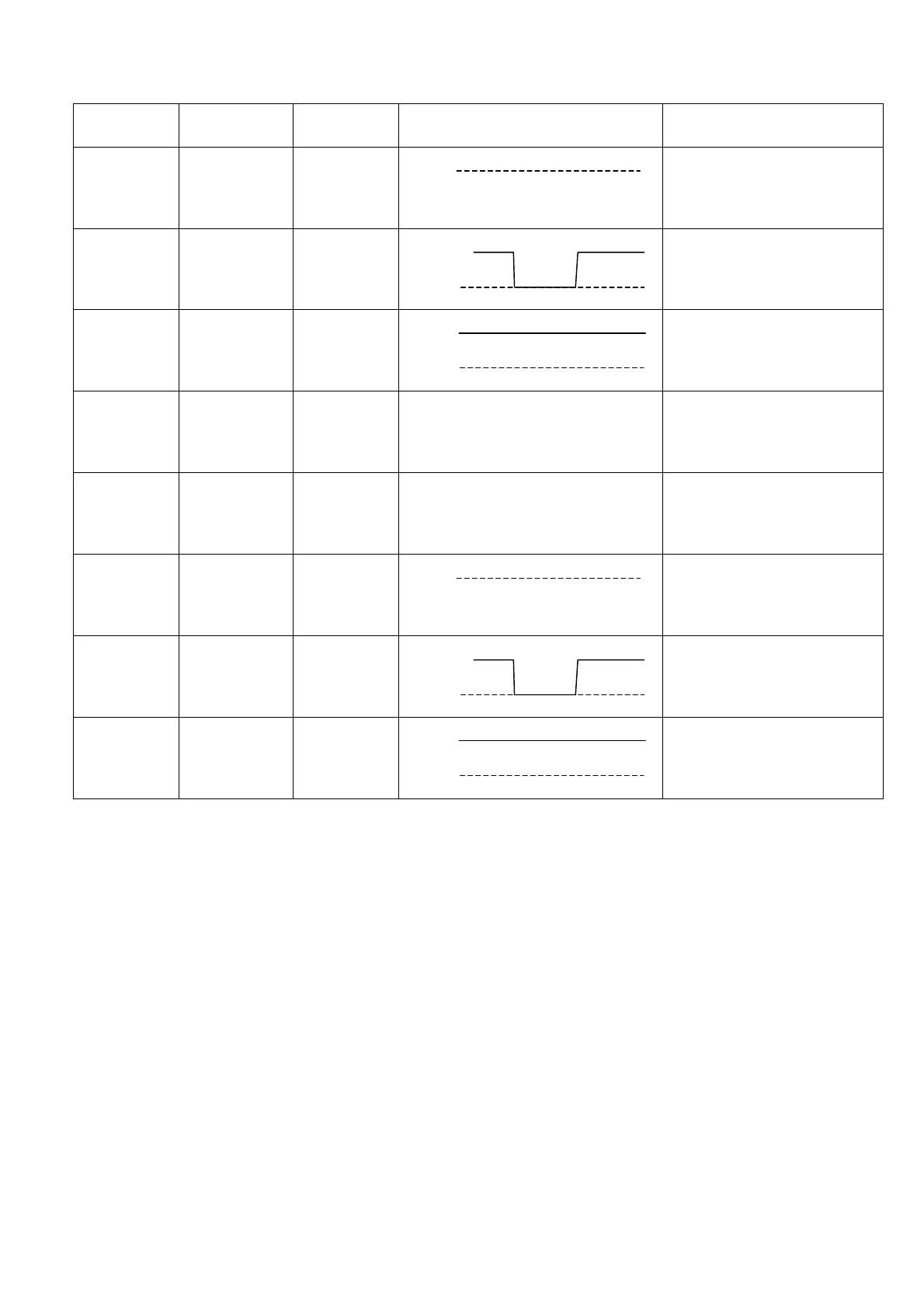

ADU PCB - CN412 (DP-C405 Series Only)
ADU PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN412-1 GND
Feed 1
Paper Path
Sensor
Ground
CN412-2 nPPSNCST1
Feed 1
Paper Path
Sensor
Paper Path Sensor Signal
CN412-3 +5V
Feed 1
Paper Path
Sensor
CN412-4 N.C. No Connection
CN412-5 N.C. No Connection
CN412-6 GND
Regist
Sensor
Ground
CN412-7 nRESSN2
Regist
Sensor
Registration Sensor Signal
CN412-8 +5V
Regist
Sensor
0V
+5V
0V
+5V
0V
0V
+5V
0V
+5V
0V
