DP-C405/C305/C265
FEB 2008Ver. 1.1

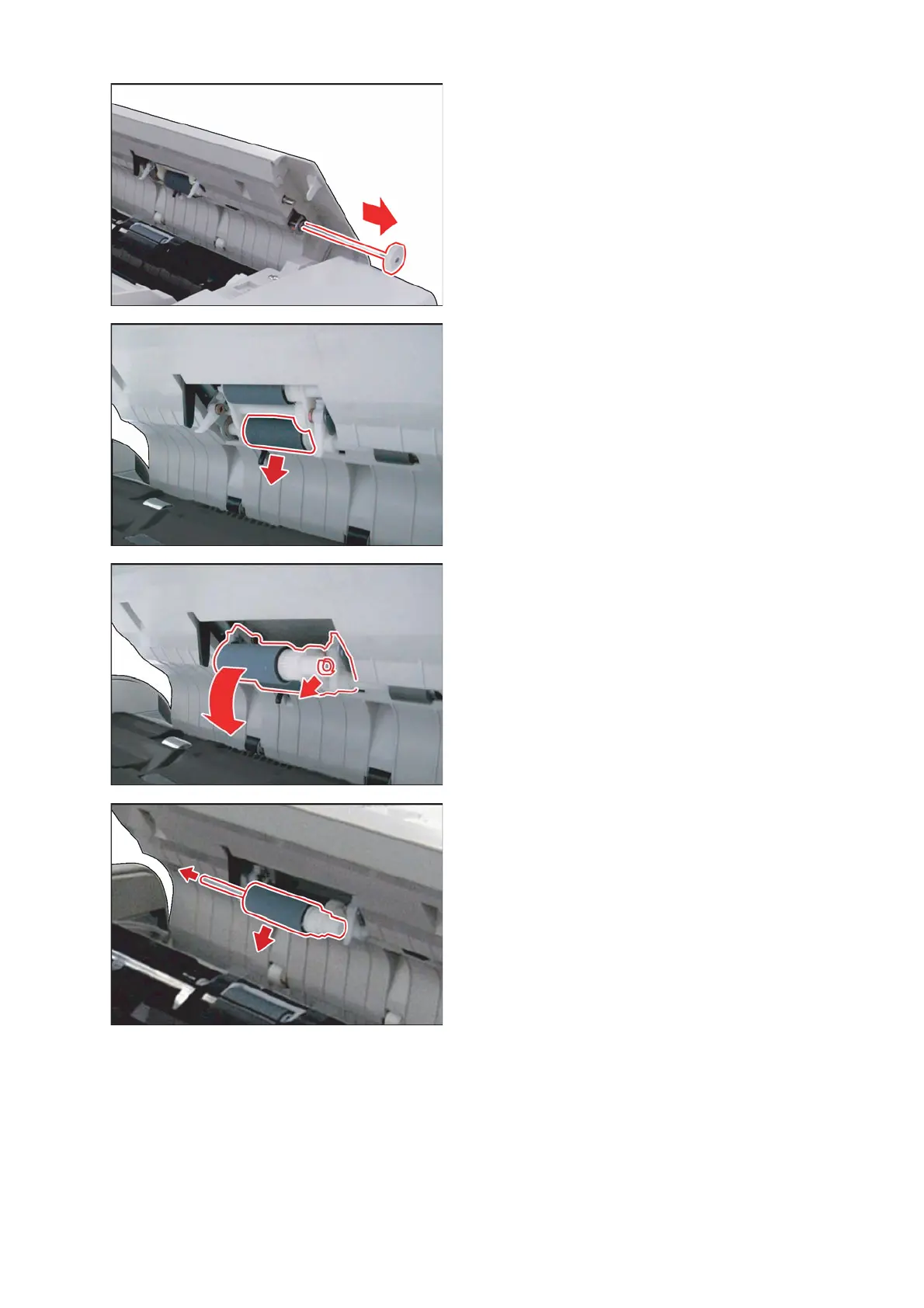

(7) Remove the Paper Feed Roller Shaft
Assembly by pulling in the arrow direction.
(8) Remove the Paper Feed Roller (508).
(9) Move the Pickup Bracket.
(10) Remove 2 Snap Rings (H7).
(11) Remove the Pickup Roller Shaft (510).
(12) Remove the Pickup Roller (511).
