826
DP-C405/C305/C265
FEB 2008Ver. 1.1

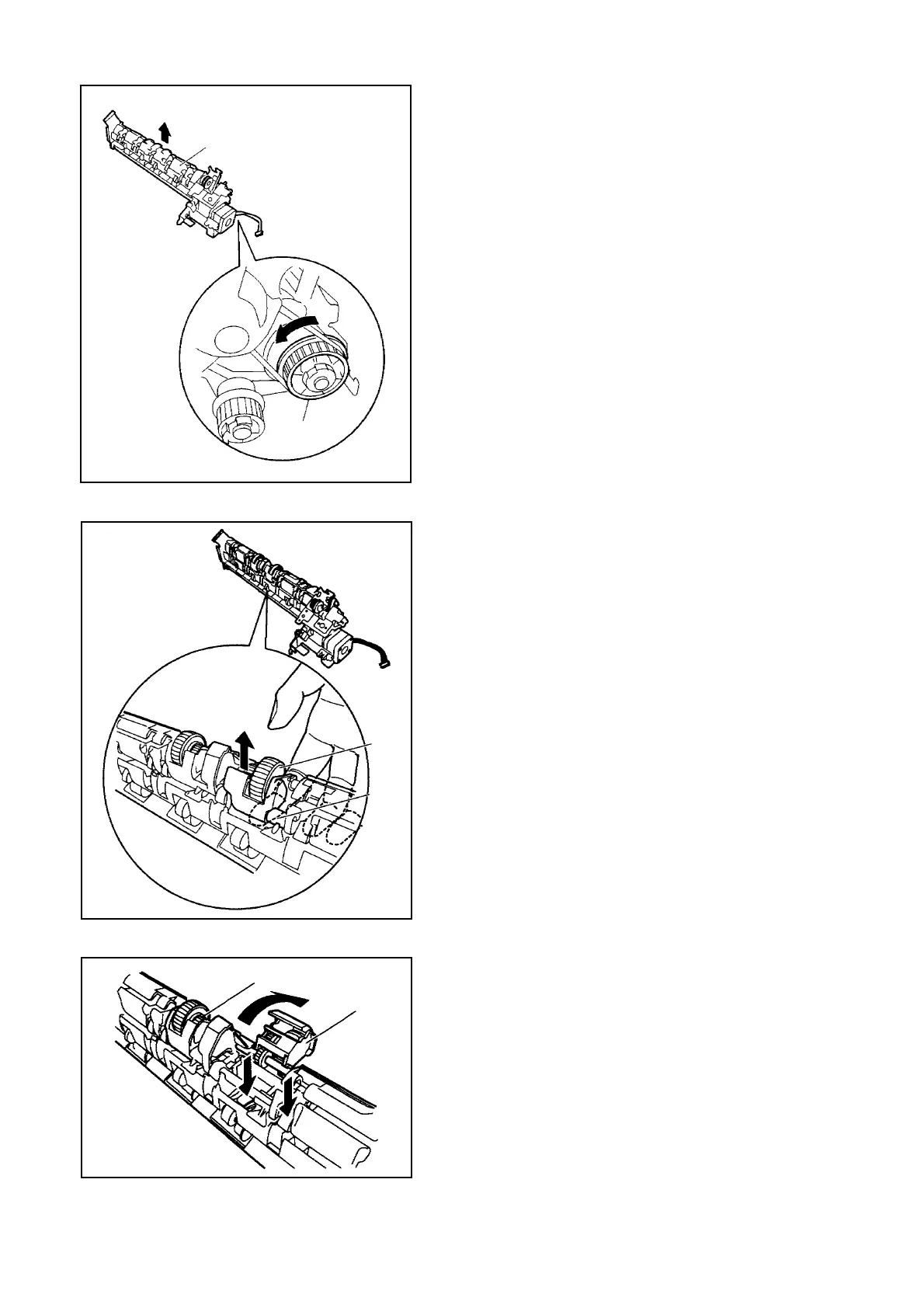

Fig. 3-056
(3) Turn the Gear [2] in the direction of the arrow to
move up the Stack Delivery Roller Assembly
(upper) [3].
Fig. 3-057
(4) Push up the Stack Delivery Roller (upper) [4]
from below to free the Stack Deliver Roller
(upper) [4] from the Shaft [5].
Fig. 3-058
(5) Shift up the Stack Delivery Roller (upper) [4],
and then push it down to detach the Stack
Deliver Roller (upper) [4].
(6) Likewise, remove the Stack Delivery Roller
(upper) [6] at the front.
[3]
[2]
[4]
[5]
[6]
[4]
