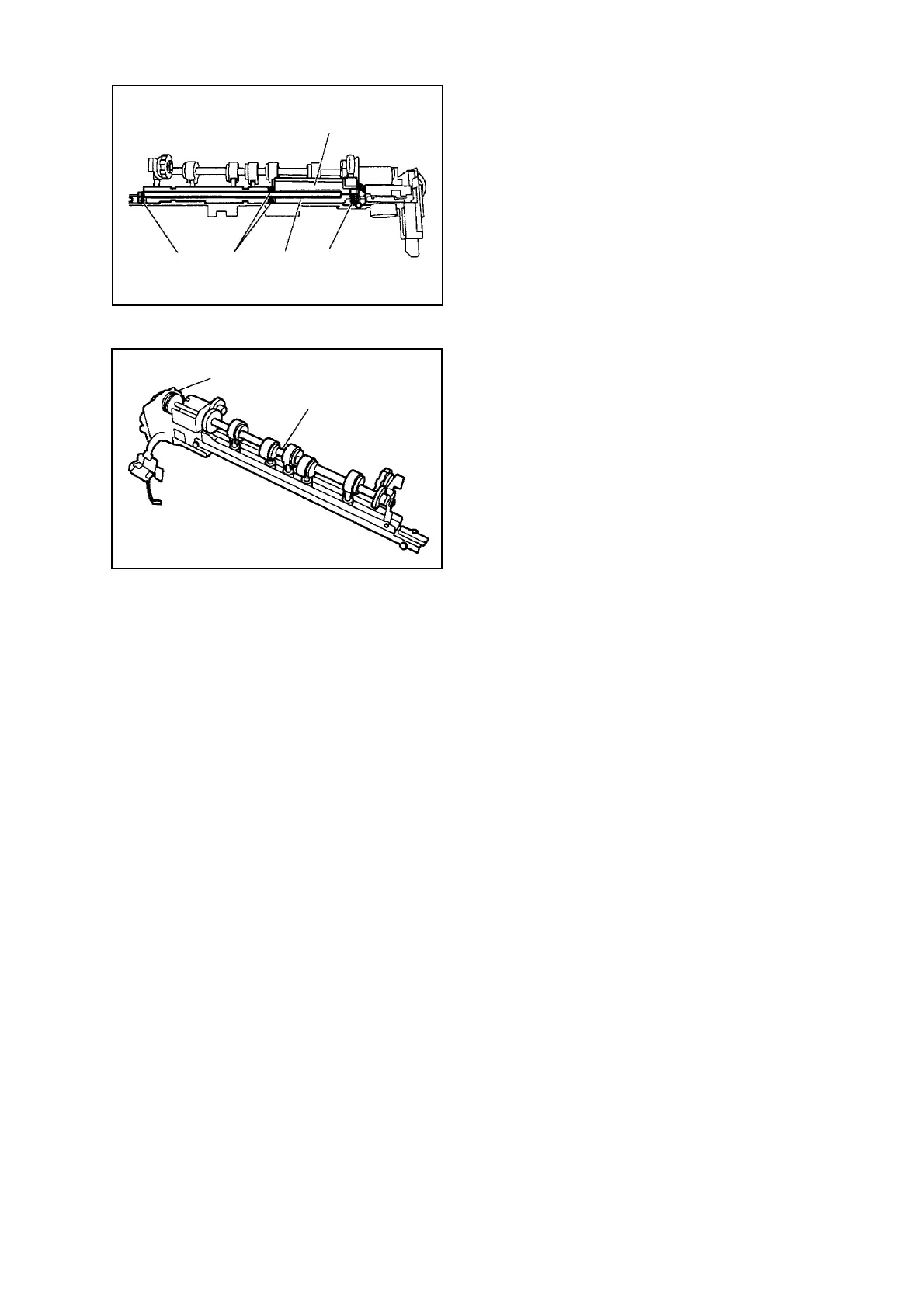

Fig. 3-083
(10) Remove 4 Screws [14] to remove the Upper
Transmission Sensor Unit [15] and Lower
Transmission Sensor [16].
Fig. 3-084
(11) Remove the Punch Unit [18] from the
Horizontal Registration Motor Assembly [17].
[15]
[14]
[14]
[14]
[16]
[17]
[18]
