DP-C405/C305/C265
FEB 2008Ver. 1.1

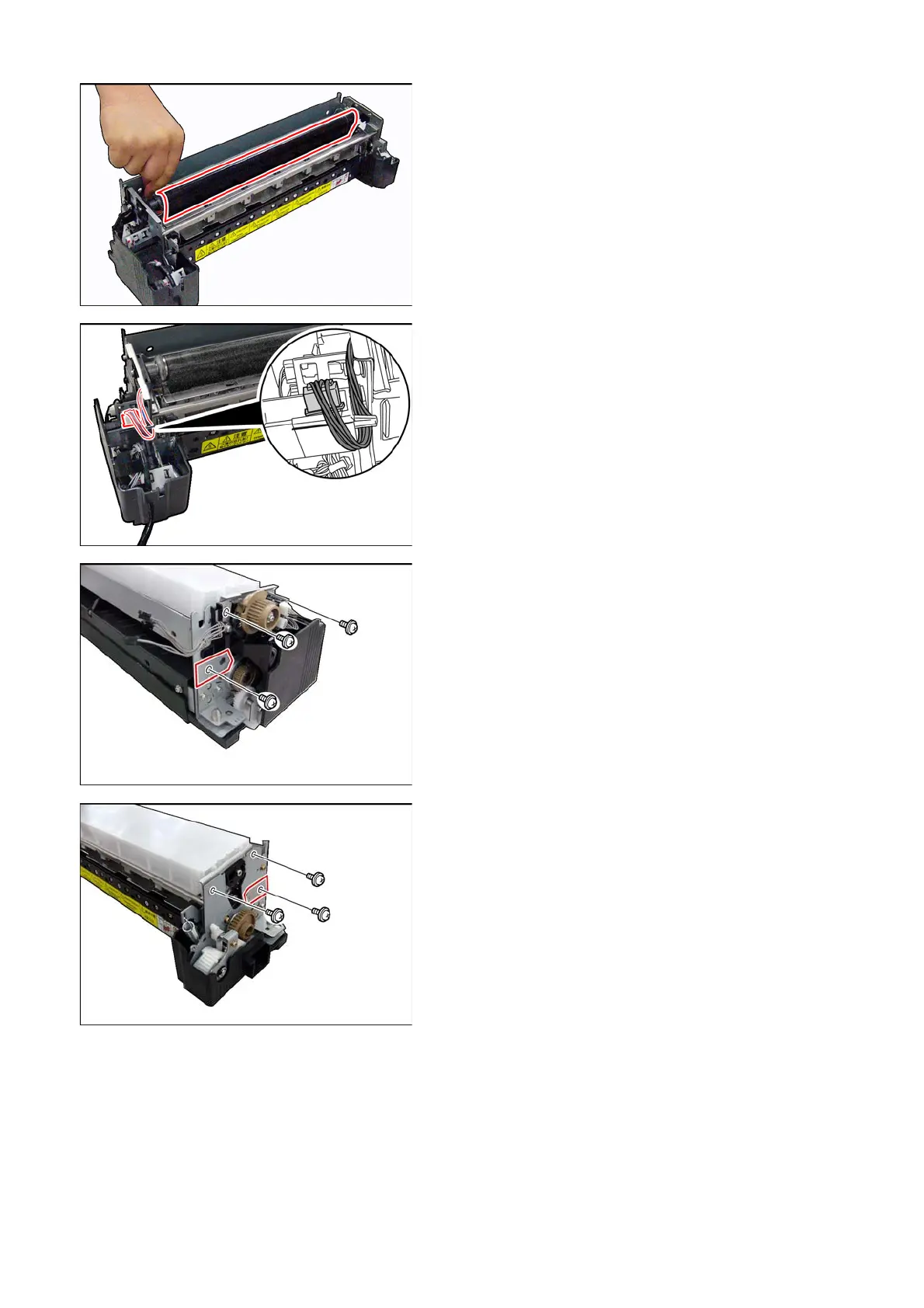

Note:
When connecting, exercise care not to touch the
Fuser Belt.
Note:
Ensure that the Harnesses are reinstalled properly
as illustrated.
<For DP-C322 Series>
(39) Reinstall 2 Black Screws.
(40) ReInstall the Shaft Plate.
(41) Reinstall 1 Black Screw.
(42) Reinstall 2 Black Screws.
(43) Reinstall the Shaft Plate.
(44) Reinstall 1 Black Screw.
To Next Page
