4-7 Installation
AC30 series Variable Speed Inverter
FRAME H
Through panel mounting an inverter in a cubicle allows you to use a smaller cubicle because much of the heat generated by the inverter is
dissipated outside the cubicle.

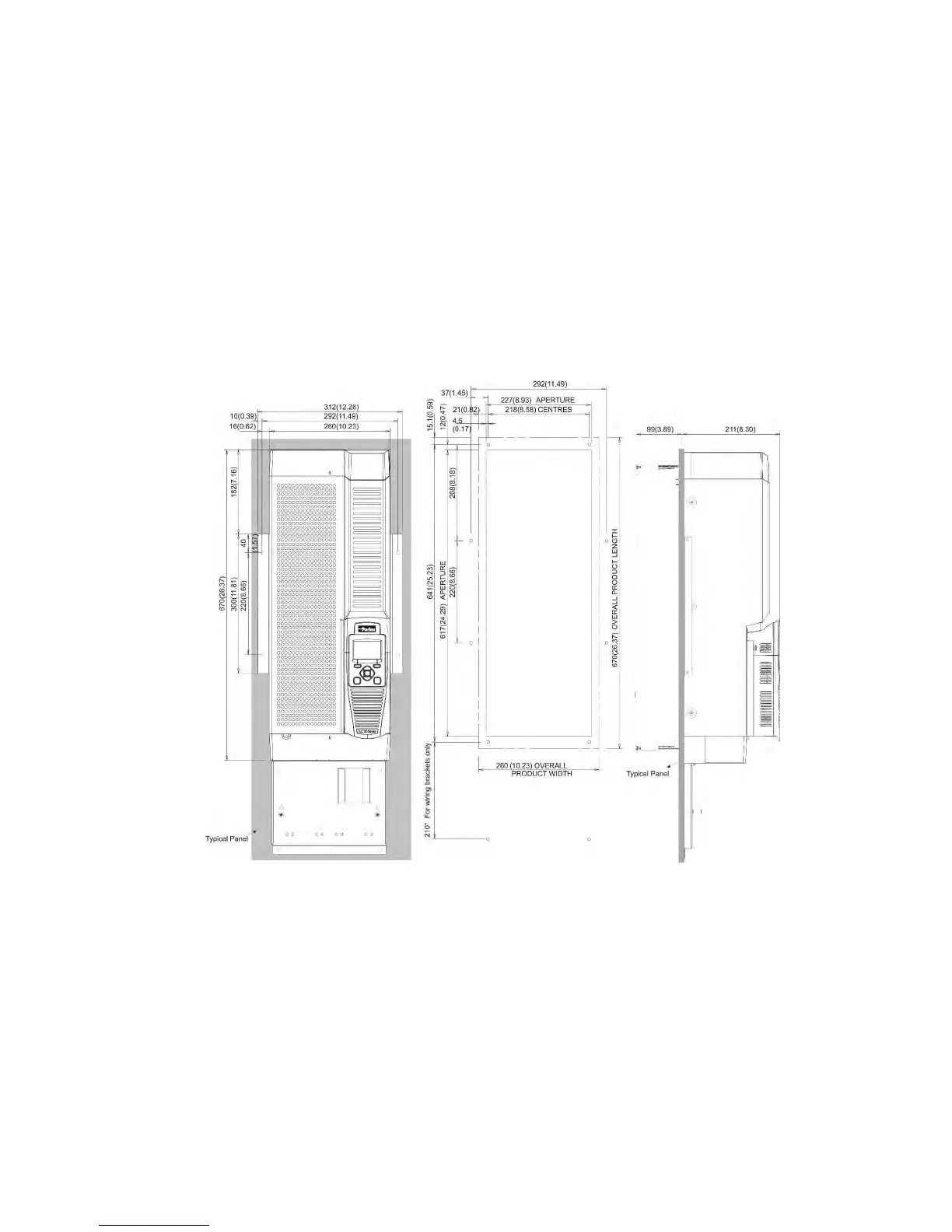

Figure 4-6 Mechanical Dimensions for Through Panel Frame H
All dimensions are in millimetres (inches) - Fixings: 8 x 6.5mm holes M6 fixings, refer to panel mounting kit part number LA502472
