Installation 4-16
AC30 series Variable Speed Inverter

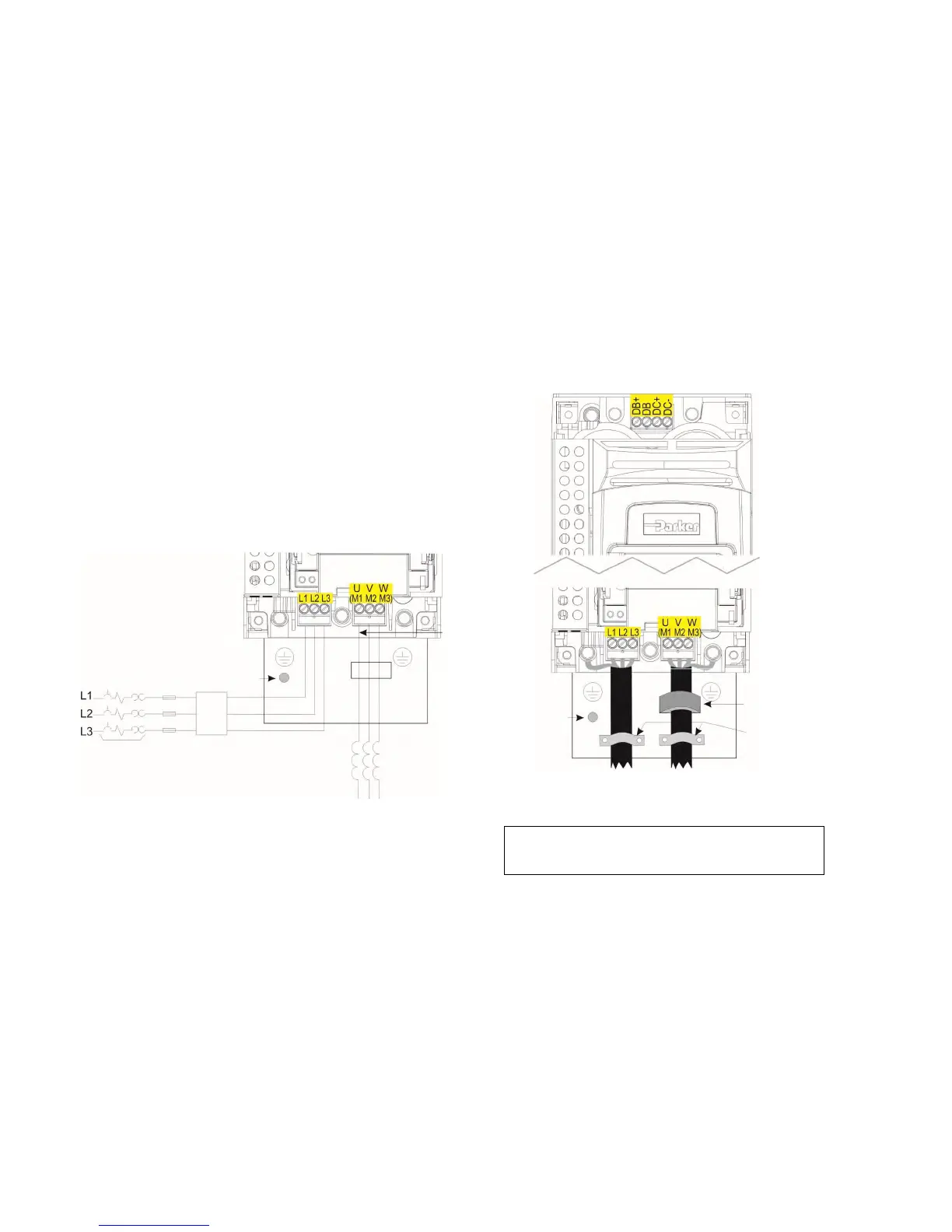

AC FED POWER WIRING CONNECTIONS
Feed the power supply and motor cables into the inverter under the cable clamps using the correct cable entries, and connect to the
power terminals. Tighten all terminals to the correct tightening torque; refer to the Terminal Tightening Torques table (page 4-39).
Earth
Earth
Earth
Stud
fuses
Circuit
Breaker
Earth
Stud
Mains in
Terminals
Motor
Terminals
Ferrite core option
To meet C2 EMC
Standard – Frames
D – J only
Cable Clamps
Frame K - no DB+ connect resistor between DC+ & DB)
Filter
(optional)
AC Motor
Chokes.
Only on long
cable runs >50m
Note: Cable clamps and earthing brackets are only
supplied with a C2 EMC Filter kit (page 4-13 for part
numbers), see page C-11 for motor termination details.
Earth
Earth
