Motor parameters
In this chapter you can read about:
Parker Motor .................................................................................................................... 185
Other motor...................................................................................................................... 185
Motor types supp
orted ..................................................................................................... 185
Parker Motor
If a Parker motor is used for the appication, the parameters are already contained
in the installed software. You can just select one of the available motors from the
first configuration page.
Other motor
When using a motor from a different manufacturer, you will have to enter the rele-
vant data. This process is supported by the MotorManager software tool, which can
be called up from the ServoManager:

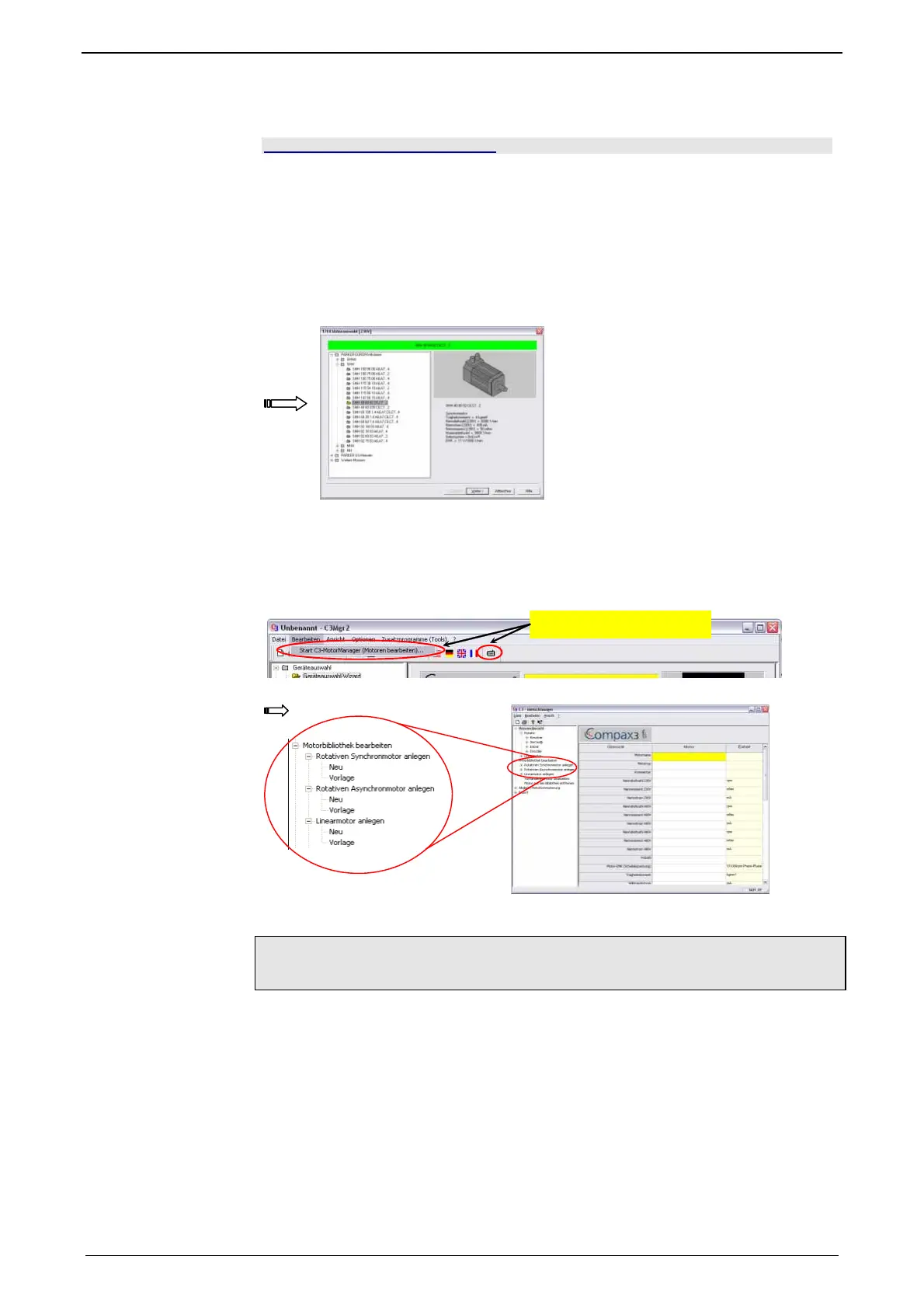

Start Motormanager
After doubleklicking on "new", the individual motor parameters are queried by the
MotorManager.
Be careful to respect the units of the individual parameters when making
your entries!
Furthermore you can use the MotorManager to edit motors already available. In
addition, the import and export of motor data entities in XML format is supported.
Motor types supported
Compax3 supports the following motor types:
Permanently excited synchronous rotaty motors
Permanently excited synchronous linear motors
Asynchronous rotary motors
In general, rotary and linear motors do have the same signal flow chart. The diffe-
rence consists solely in the basic physical values, which refer to circular movement
