Parker Compax3 Series User Manual

Communication
C3I22T11
320 192-120114 N5 C3I22T11 June 2008
Interpolation method
In this chapter you can read about:
Linear Interpolation (o3925.1 = 0 oder o3925.1 = -1) ...................................................... 320
Quadratic interpolation (o3925.1=-
2)............................................................................... 321
Cubical interpolation (o3925.1=-3)................................................................................... 322
Linear Interpolation (o3925.1 = 0 oder o3925.1 = -1)
With the transmitted position and the position in the previous bus cycle, a straight
of the Y(t)=a*t + b is calculated. The speed within a bus cycle remains constant.
This method is only implemented for the PLL synchronization.
 Advantage: Support of a reset value range
 Disadvantage: During the transition to a new bus cycle, a speed leap may occur.

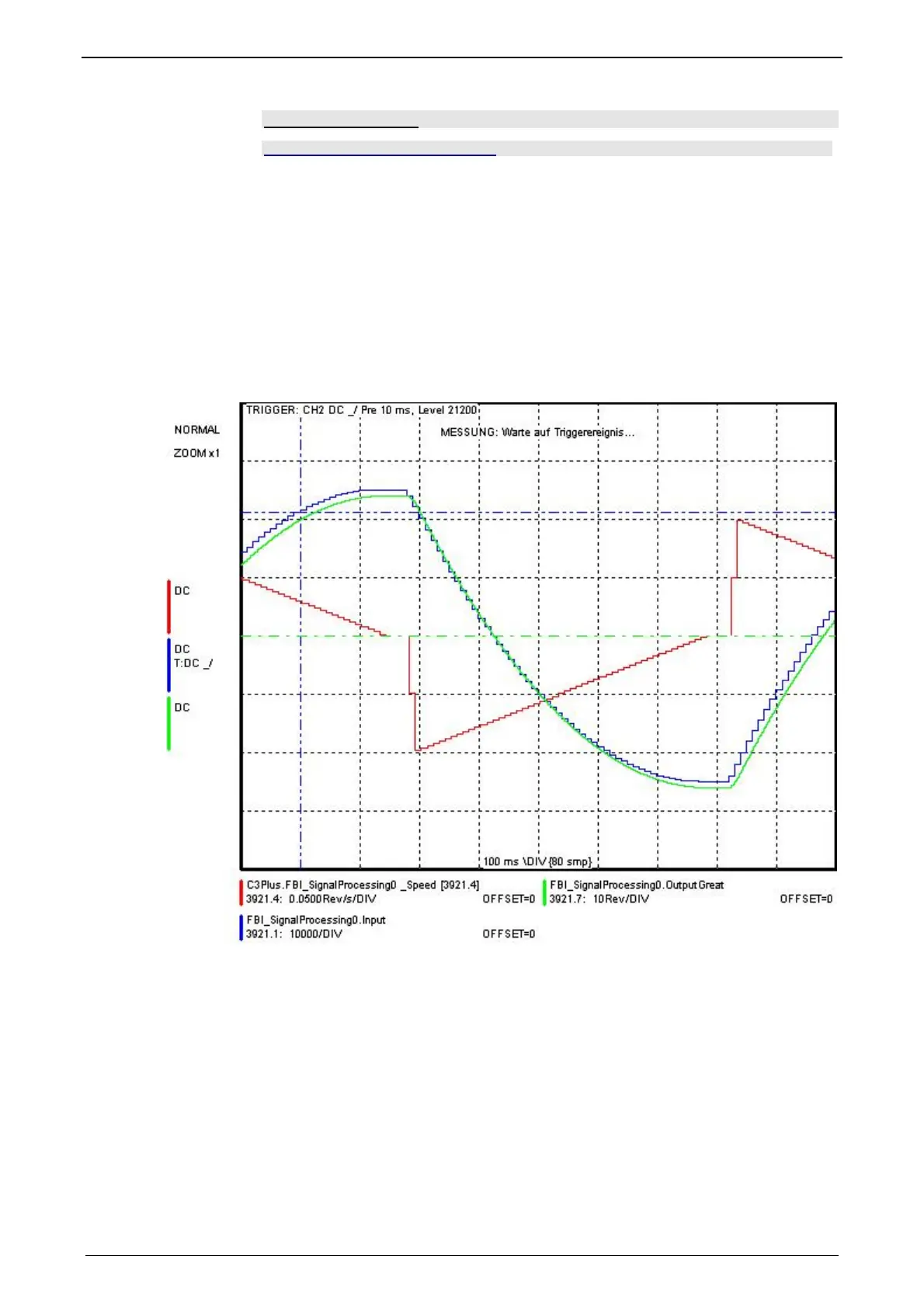

Example:
