Pfaff 3519-5/01 - Page 139

To Next Page

To Previous Page

139

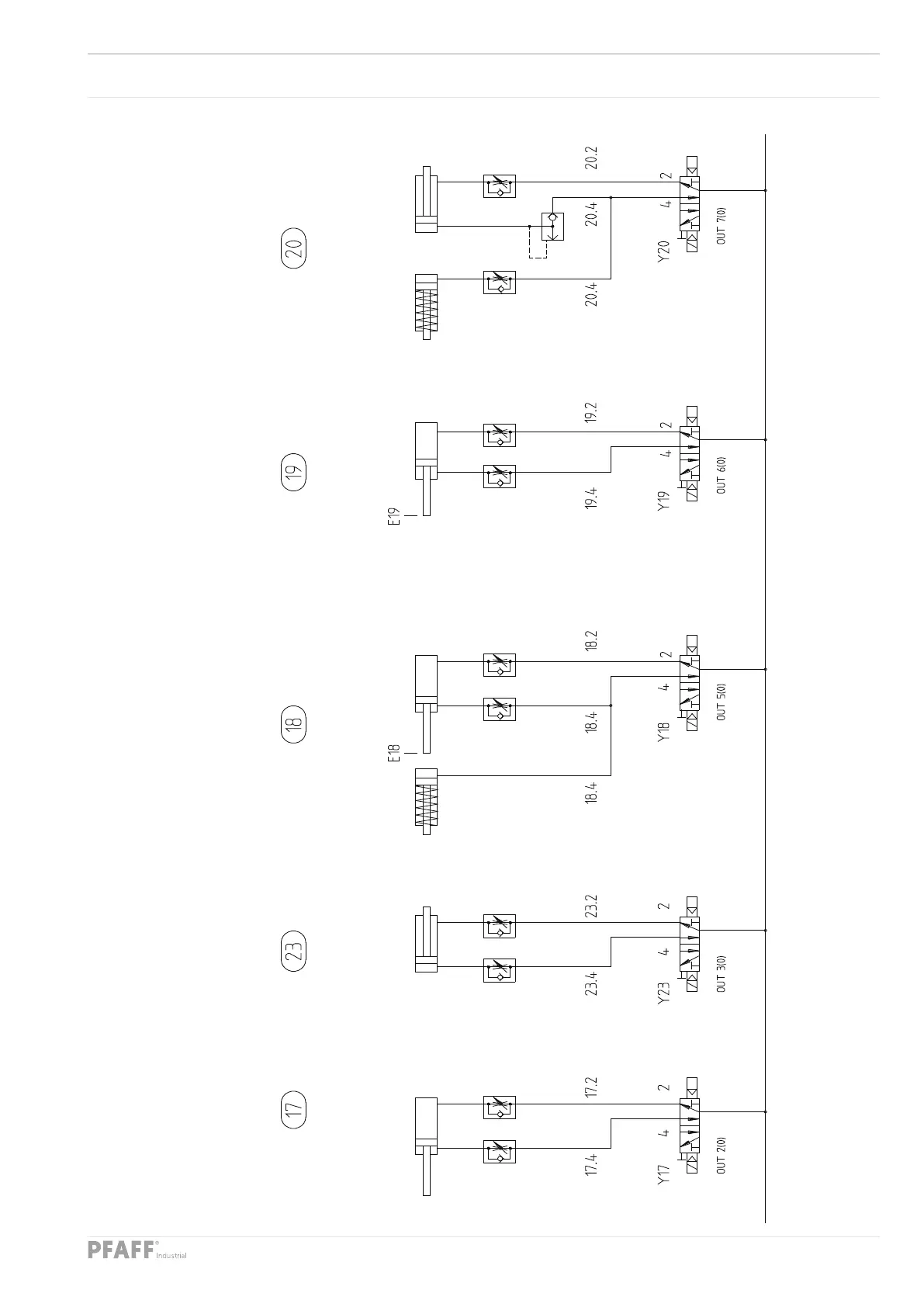

Pneumatic Circuit Diagram Version 14.06.06 91-744 699-95 Part 4

CAN node 2

(Page 1 of 2)

Wiper 2 Wiper 1 Workholder bar

intermediate position

Material take-over 1

long

Material take-over 2

short

Thread catcher
