Pfaff 3519-5/01 - Page 141

To Next Page

To Previous Page

141

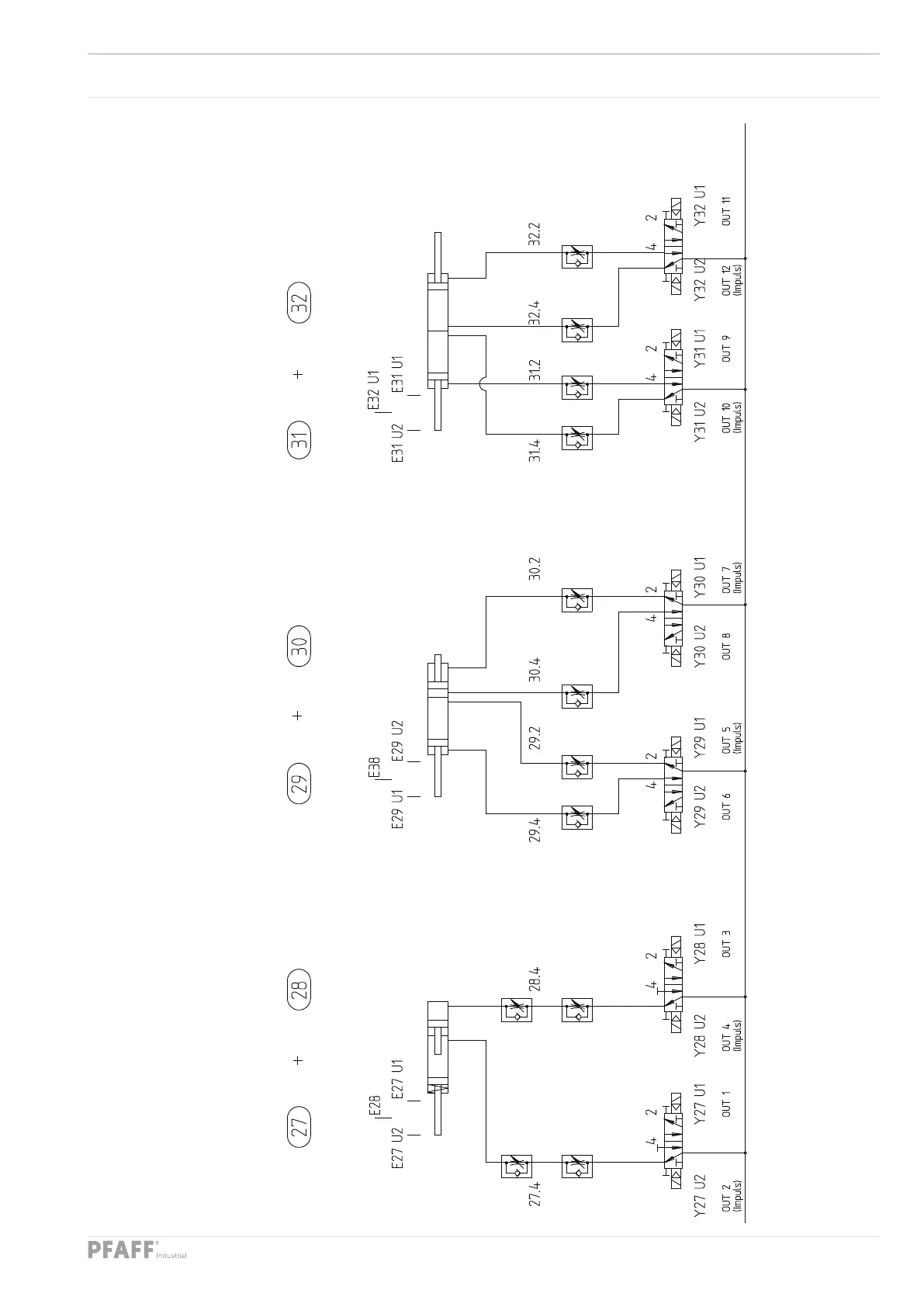

Pneumatic Circuit Diagram Version 14.06.06 91-744 699-95 Part 6

CAN node 3

(Page 1 of 2)

Positioning tube lift 1

up and down (vertical)

Positioning tube lift 2

up and down (vertical)

Infeed table lift 1

retracted / extended

Infeed table lift 2

end position and spe-

cial position

Positioning tube lift 1

front and back (horizontal)

Positioning tube lift 2

front and back (horizontal)
