Adjustment
13 - 4
● Unscrew needle plate and screw on adjustment gauge 1.
● Unscrew presser 2.
● Loosen screws 3 and guide presser bar 4 into the hole in the adjustment gauge 1.
● If required, move sewing head (screws 5) according to the requirement.
● Move presser bar 4 back to its original position and tighten screws 3 lightly.
Adjustment gauge 1 remains screwed on for further adjustments.
The precise adjustment of the presser bar 4 is described in chapter 13.05.21
Presser height.

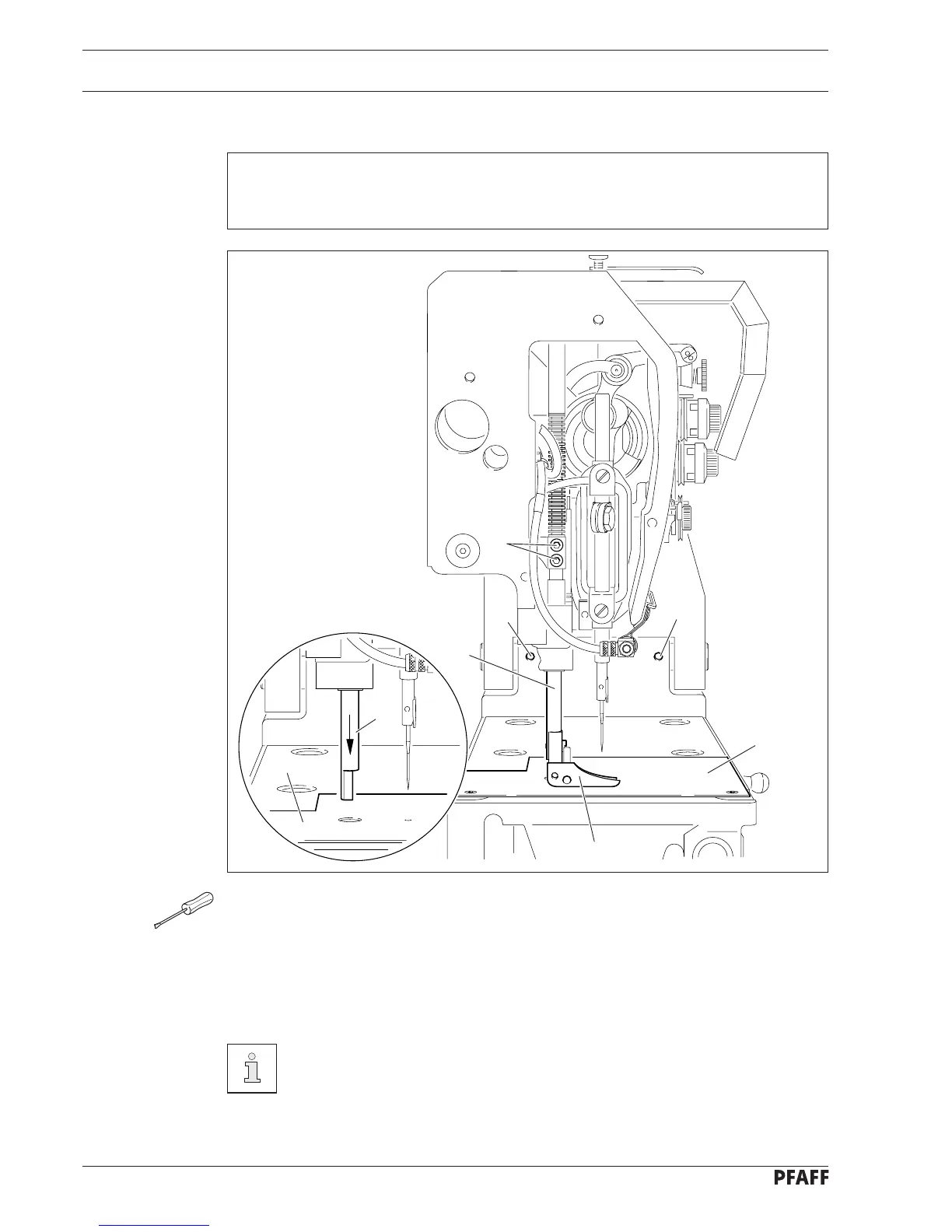

Fig. 13 - 03
13.05.02 Sewing head position in relation to the bedplate
Requirement
When the sewing head is lowered, after the screws 3 have been loosened, the presser
bar 4 must pass exactly through the corresponding hole in the adjustment gauge 1.
2
1
3
5
5
4
4
1
