Users Manual of IGS-4215-16T2S
100
The page includes the following fields:
Object Description
Session ID
Set the port mirror session ID.
Possible ID are: 1 to 4.
Monitor Session
State
Enable or disable the port mirroring function.
Destination Port
Select the port to mirror destination port.
Allow-ingress
Frames from ports that have either source (rx) or destination (tx) mirroring enabled are
mirrored to this port.
Sniffer TX Ports
Frames transmitted from these ports are mirrored to the mirroring port. Frames received
are not mirrored.
Sniffer RX Ports
Frames received at these ports are mirrored to the mirroring port.
Frames transmitted are not mirrored.
Buttons
: Click to apply changes.

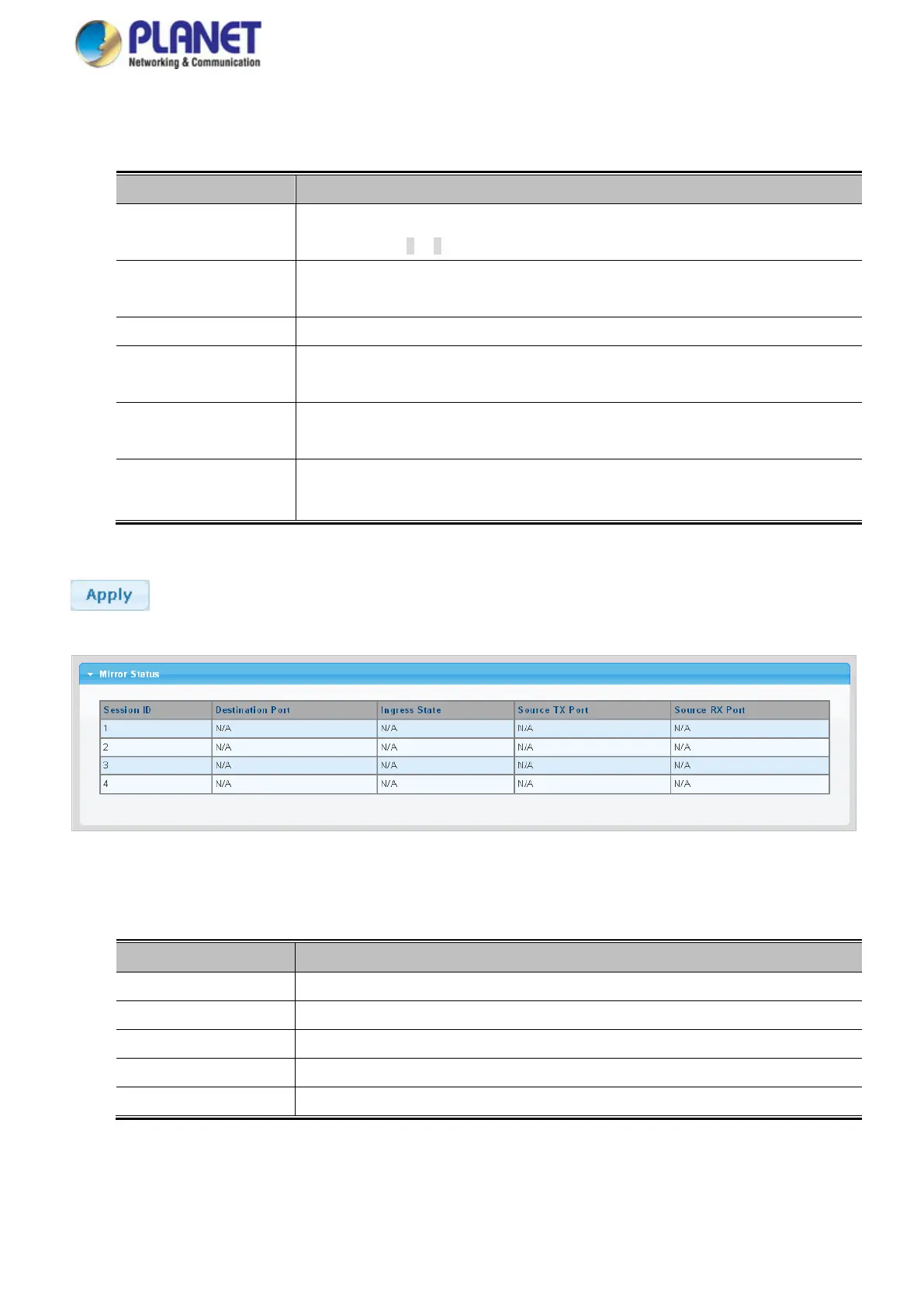

Figure 4-3-10: Mirroring Status Page Screenshot
The page includes the following fields:
Object Description
Session ID
Displays the session ID.
Destination Port
This is the mirroring port entry.
Ingress State
Displays the ingress state.
Source TX Port
Displays the current TX ports.
Source RX Port
Displays the current RX ports.
