The page includes the following fields:
Object Description
• Total RX
Displays the current total RX
• Valid RX
Displays the current valid RX
• Invalid RX
Displays the current invalid RX
• Other RX
Displays the current other RX
• Leave RX
Displays the current leave RX
• Report RX
Displays the current report RX
• General Query RX
Displays the current general query RX
• Special Group Query
RX
Displays the current special group query RX
• Special Group &
Source Query RX
Displays the current special group & source query RX
• Leave TX
Displays the current leave TX
• Report TX
Displays the current report TX
• General Query TX
Displays the current general query TX
• Special Group Query
TX
Displays the current special group query TX
• Special Group &
Source Query TX
Displays the current special group & source query TX
Buttons
: Click to clear the IGMP Snooping Statistics.
: Click to refresh the IGMP Snooping Statistics.
4.8.9 IGMP Filter Setting

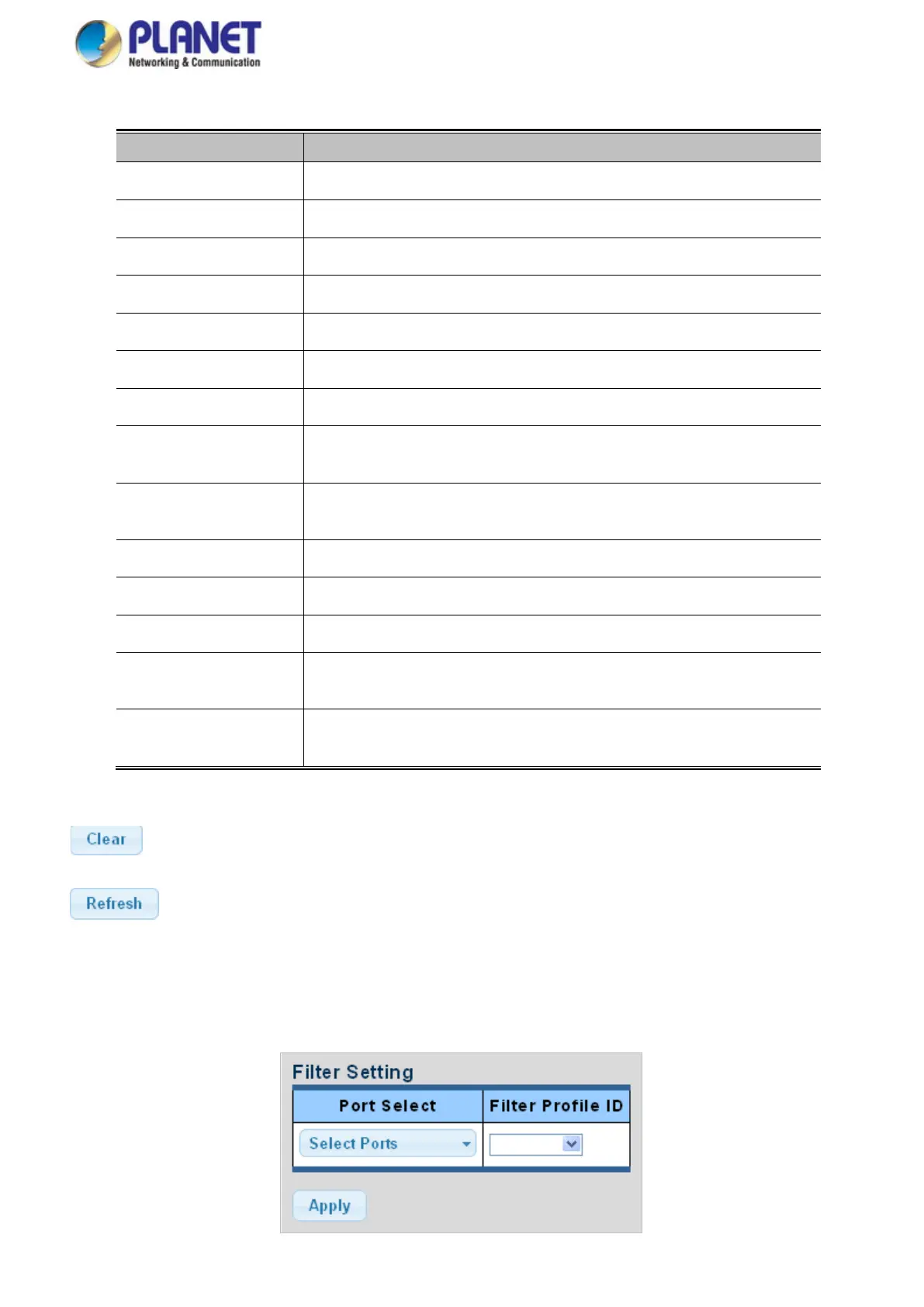

The Filter Setting and Status screens in Figure 4-8-20and Figure 4-8-21 appear.
