User’s Manual of IGS-4215-16T2S
The page includes the following fields:
Object Description
• VLAN ID
Displays the current VLAN ID.
• Querier State
Displays the current querier state.
• Querier Status
Displays the current querier status.
• Querier Version
Displays the current querier version.
• Querier IP
Displays the current querier IP.
4.8.3 IGMP Static Group
Multicast filtering can be dynamically configured using IGMP Snooping and IGMP Query messages as described in above
sections. For certain applications that require tighter control, you may need to statically configure a multicast service on the
Industrial Managed Switch. First add all the ports attached to participating hosts to a common VLAN, and then assign the
multicast service to that VLAN group.
- Static multicast addresses are never aged out.
- When a multicast address is assigned to an interface in a specific VLAN, the corresponding traffic can only be
forwarded to ports within that VLAN.

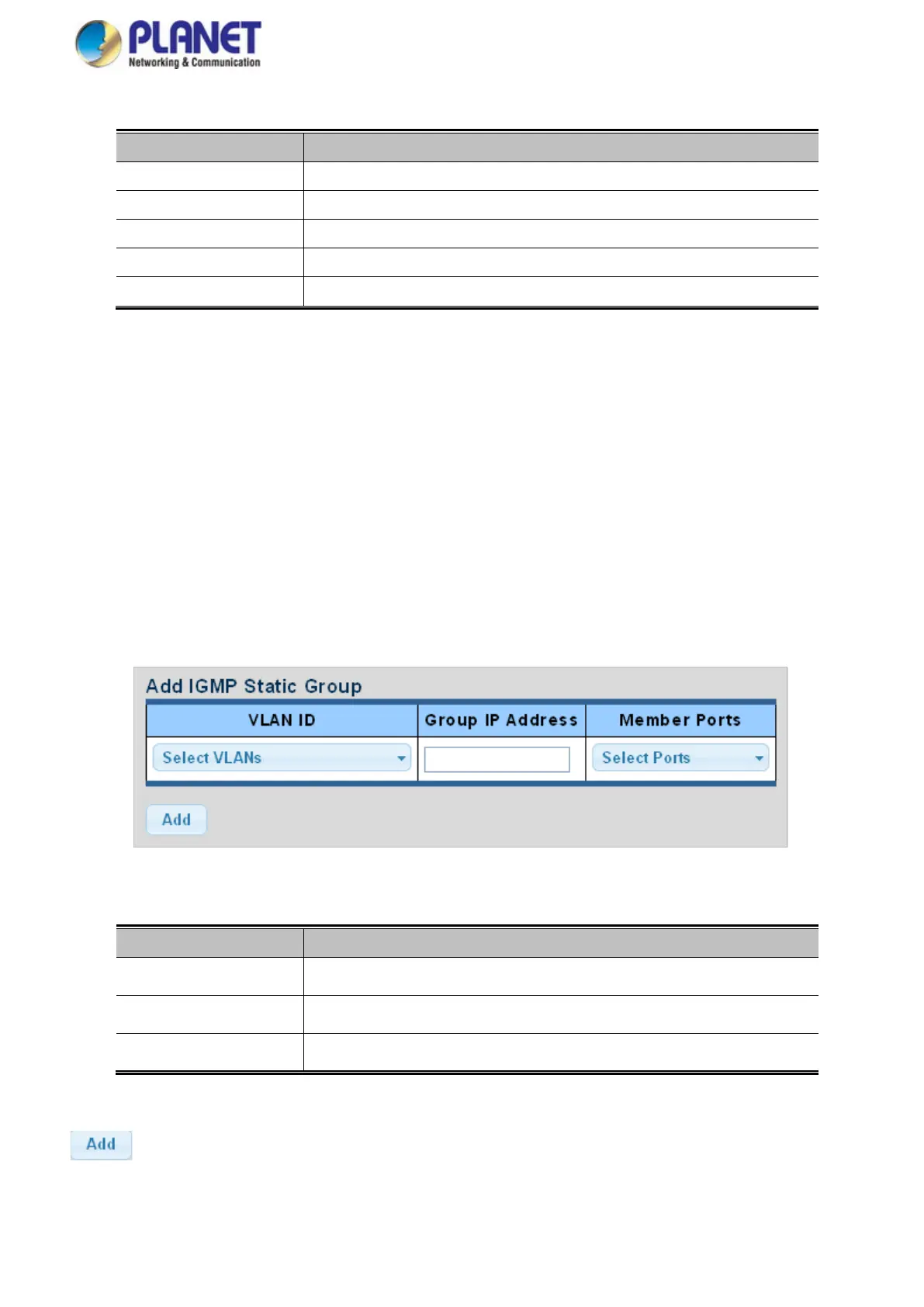

The IGMP Static Group configuration screens in Figure 4-8-10 and Figure 4-8-11 appear.
Figure 4-8-10: Add IGMP Static Group Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
Select VLAN ID for this drop-down list.
• Group IP Address
The IP address for a specific multicast service.
• Member Ports
Select port number for this drop-down list.
Buttons
: Click to add IGMP router port entry.
