User’s Manual of IGS-4215-16T2S
4.11 MAC Address Table
Switching of frames is based upon the DMAC address contained in the frame. The Industrial Managed Switch builds up a table
that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in
the frame). This table contains both static and dynamic entries. The static entries are configured by the network administrator if
the administrator wants to do a fixed mapping between the DMAC address and switch ports.
The frames also contain a MAC address (SMAC address), which shows the MAC address of the equipment sending the frame.
The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses. Dynamic
entries are removed from the MAC table if no frame with the corresponding SMAC address has been seen after a configurable
age time.
4.11.1 Dynamic Learned
Dynamic MAC Table
Dynamic Learned MAC Table is shown on this page. The MAC Table is sorted first by VLAN ID and then by MAC address. The
Dynamic Learned screens in Figure 4-11-1 and Figure 4-11-2 appear.

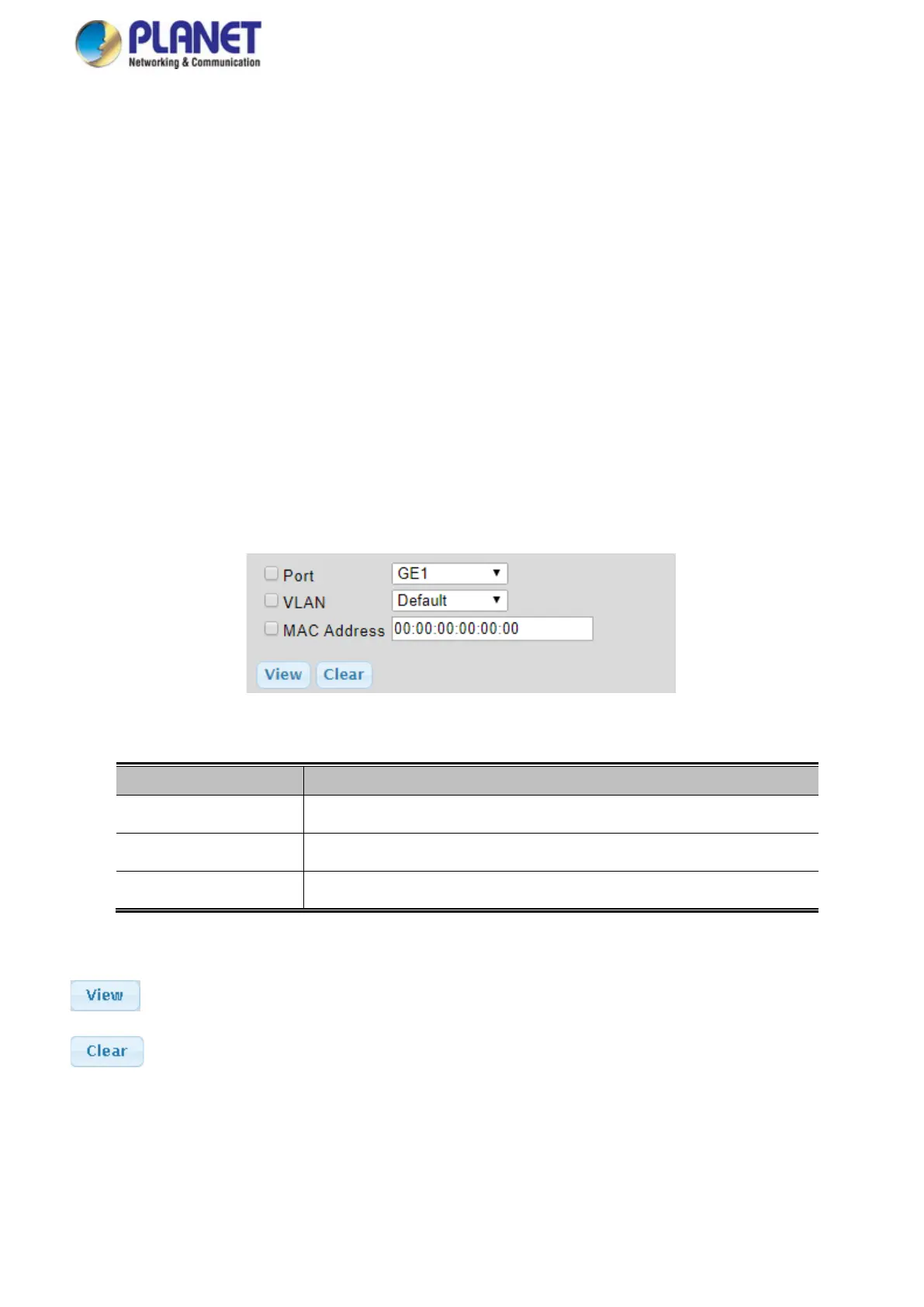

Figure 4-11-1: Dynamic Learned Page Screenshot
The page includes the following fields:
Object Description
• Port
Select port from this drop-down list.
• VLAN
Select VLAN from this drop-down list.
• MAC Address
Physical address associated with this interface.
Buttons
: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields
: Flushes all dynamic entries
To Next Page
