User’s Manual of IGS-4215-16T2S
The page includes the following fields:
Object Description
• LAG
The LAG for the settings contained in the same row.
• Name
Displays the current name.
• Type
Displays the current type.
• Link State
Displays the link state.
• Active Member
Displays the active member.
• Standby Member
Displays the standby member.
• Modify
Click to modify LAG configuration.
4.4.3 LAG Port Setting

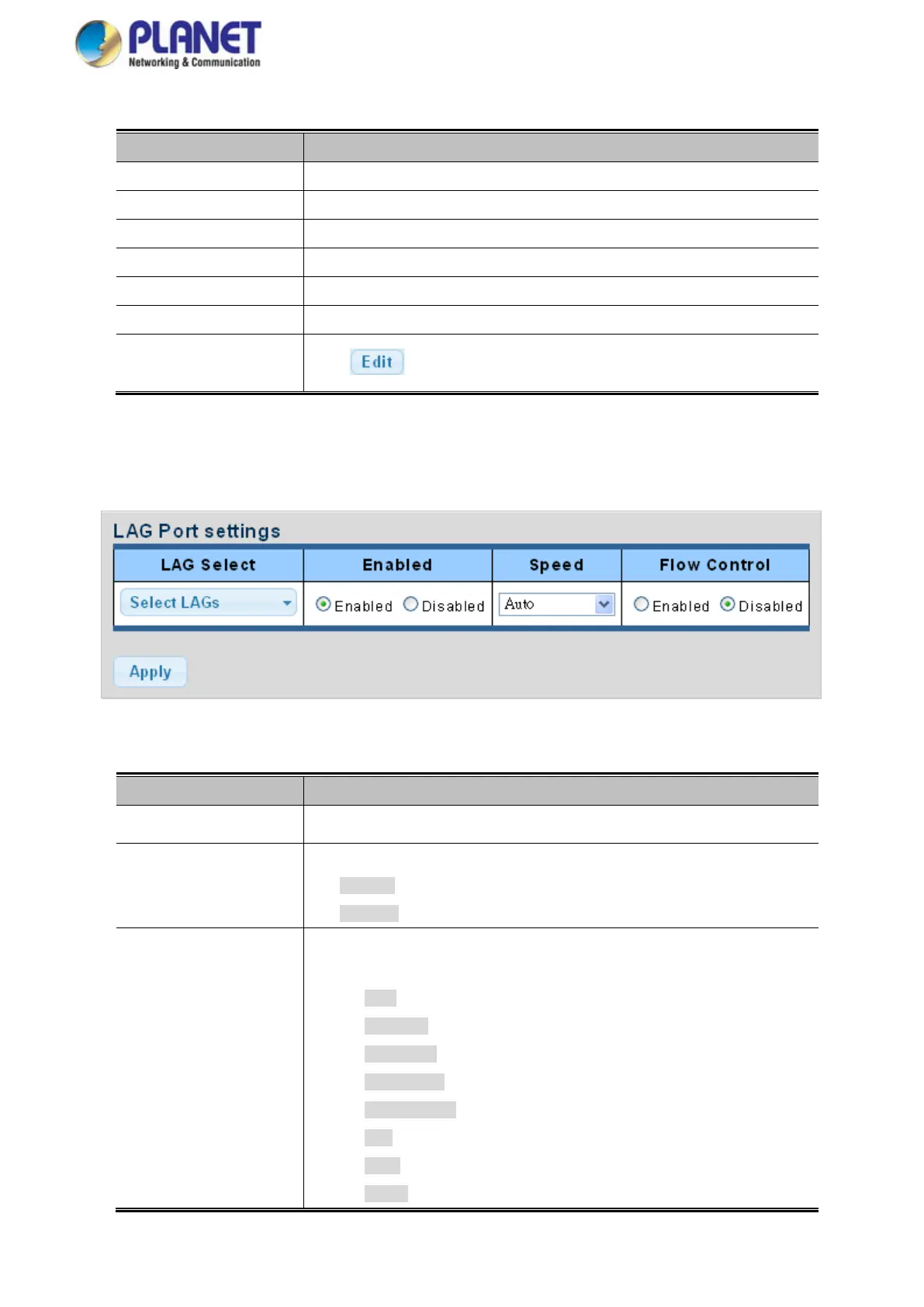

This page allows setting configuration for each LAG. The LAG Port setting screens in Figure 4-4-6 and Figure 4-4-7 appear.
Figure 4-4-6: LAG Port Setting Information Page Screenshot
The page includes the following fields:
Object Description
• LAG Select
Select LAG number for this drop-down list.
• Enable
Indicates the LAG state operation. Possible states are:
Enabled - Start up the LAG manually.
Disabled – Shut down the LAG manually.
• Speed
Select any available link speed for the given switch port. Draw the menu bar to
select the mode.
Auto – Set up Auto negotiation.
Auto-10M – Set up 10M Auto negotiation.
Auto-100M – Set up 100M Auto negotiation.
Auto-1000M - Set up 1000M Auto negotiation.
Auto-10/100M – Set up 10/100M Auto negotiation.
10M – Set up 10M Force mode.
100M – Set up 100M Force mode.
1000M – Set up 1000M Force mode.
