4.5.6 Port to VLAN
Use the VLAN Static Table to configure port members for the selected VLAN index. This page allows you to add and delete port
members of each VLAN. The screen in Figure 4-5-7 appears.

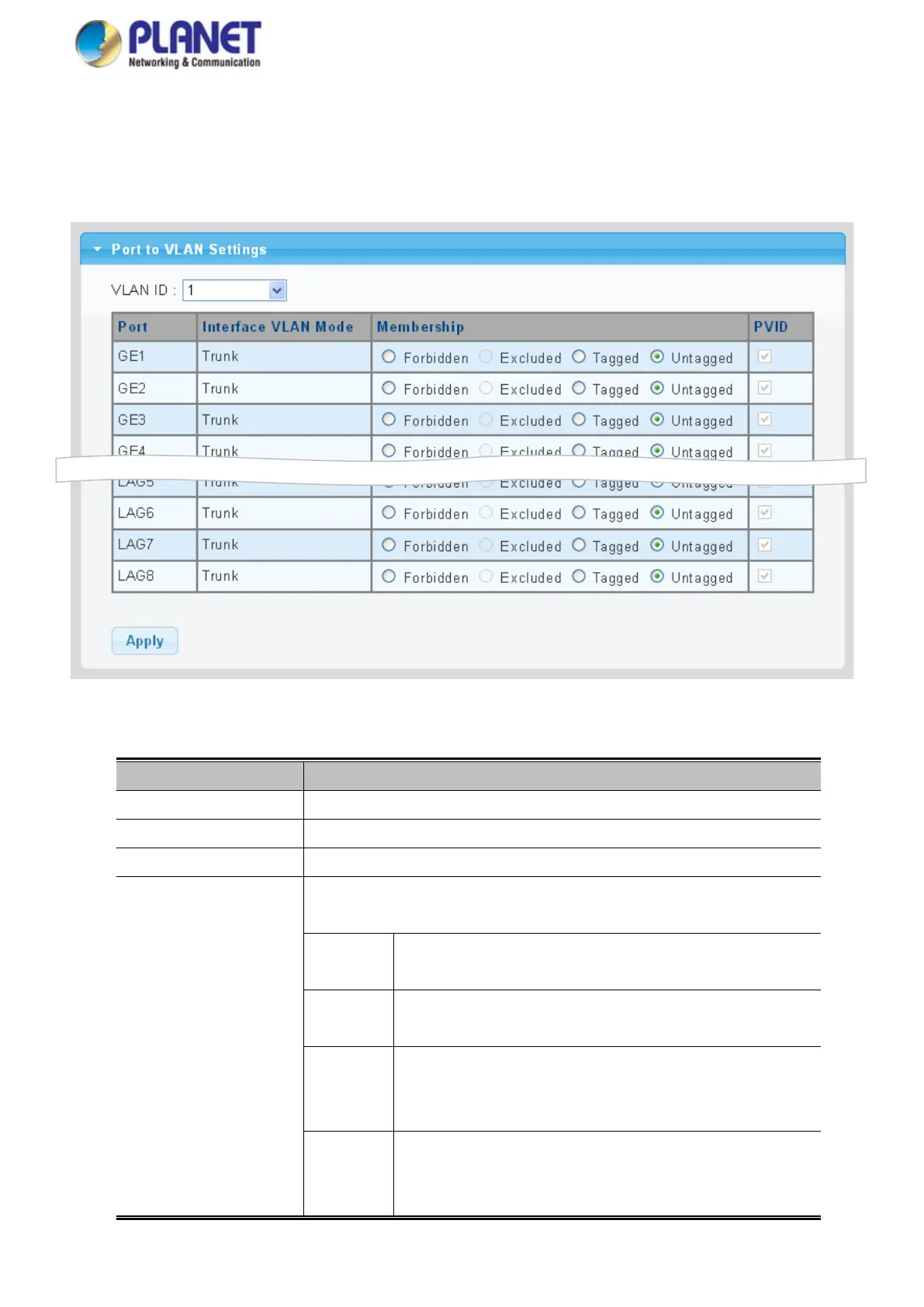

Figure 4-5-7: Port to VLAN Setting Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
Select VLAN ID for this drop-down list to assign VLAN membership.
• Port
The switch port number of the logical port.
• Interface VLAN Mode
Displays the current interface VLAN mode.
• Membership
Select VLAN membership for each interface by marking the appropriate radio
button for a port or trunk:
Forbidden: Interface is forbidden from automatically joining the VLAN via
GVRP.
Excluded: Interface is not a member of the VLAN. Packets associated with
this VLAN will not be transmitted by the interface.
Tagged: Interface is a member of the VLAN. All packets transmitted by the
port will be tagged, that is, carry a tag and therefore carry VLAN or
CoS information.
Untagged: Interface is a member of the VLAN. All packets transmitted by the
port will be untagged, that is, not carry a tag and therefore not
carry VLAN or CoS information. Note that an interface must be
