Planet IGS-4215 Series - MED Port Setting

User’s Manual of IGS-4215-16T2S
214
Buttons
: Click to apply changes.

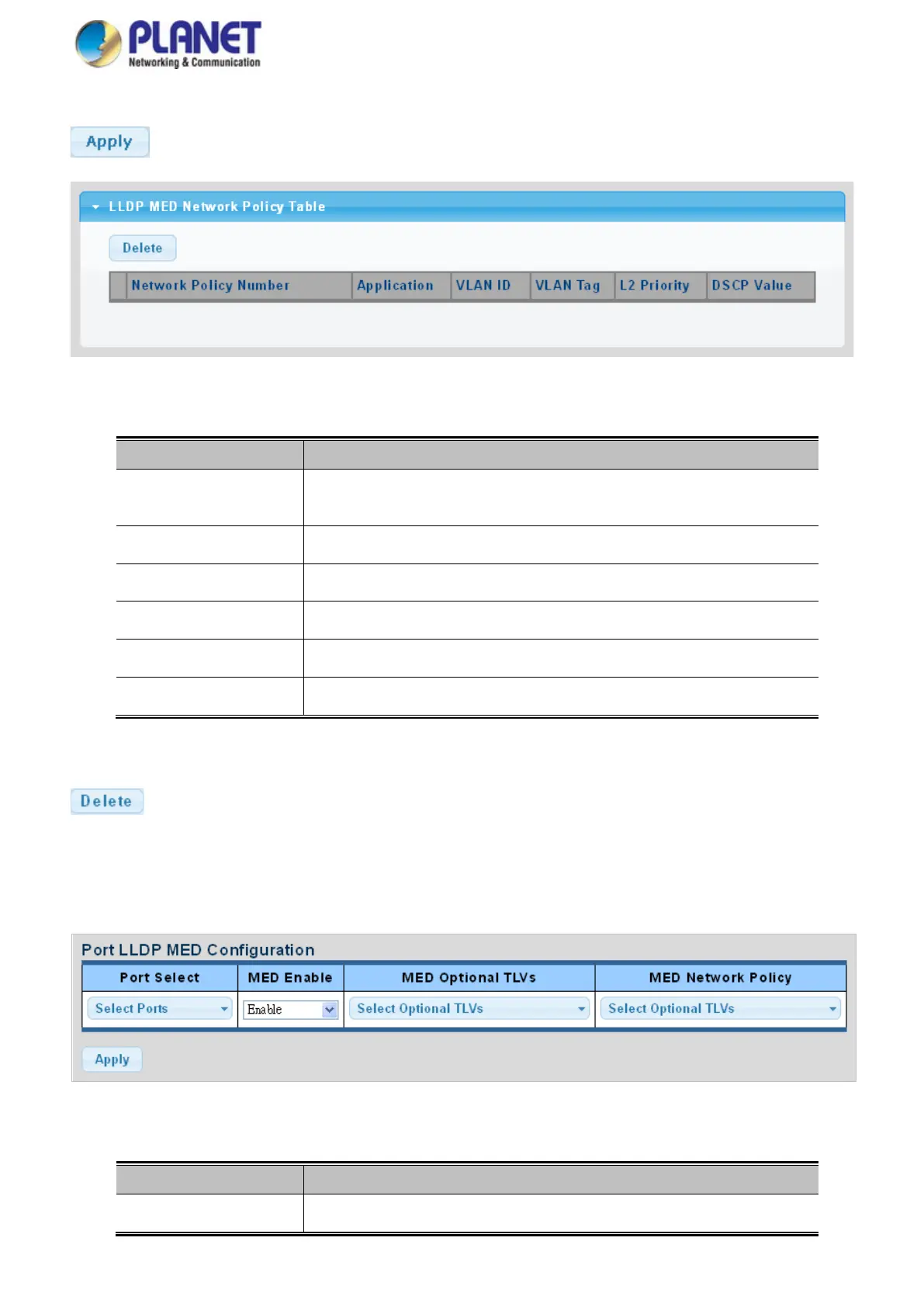

Figure 4-10-11: LLDP MED Network Policy Table Page Screenshot
The page includes the following fields:
Object Description
• Network Policy
Number
Displays the current network policy number.
• Application
Displays the current application.
• VLAN ID
Displays the current VLAN ID.
• VLAN Tag
Displays the current VLAN tag status.
• L2 Priority
Displays the current L2 priority.
• DSCP Value
Displays the current DSCP value.
Buttons
: Click to delete LLDP MED network policy table entry.
4.10.7 MED Port Setting
The Port LLDP MED Configuration/Port Setting Table screens in Figure 4-10-12 and Figure 4-10-13 appear.
Figure 4-10-12: Port LLDP MED Configuration Page Screenshot
The page includes the following fields:
Object Description
• Port Select
Select port from this drop-down list.
