Figure 4-12-10: DSCP Mapping Page Screenshot
The page includes the following fields:
Object Description
• DSCP
Displays the current CoS value.
• Mapping to Queue
Displays the current mapping to queue.
• Queue
Displays the current queue value.
• Mapping to DSCP
Displays the current mapping to DSCP.
4.12.2.6 IP Precedence Mapping
The IP Precedence to Queue and Queue to IP Precedence Mapping screens in Figure 4-12-11 and Figure 4-12-12 appear.

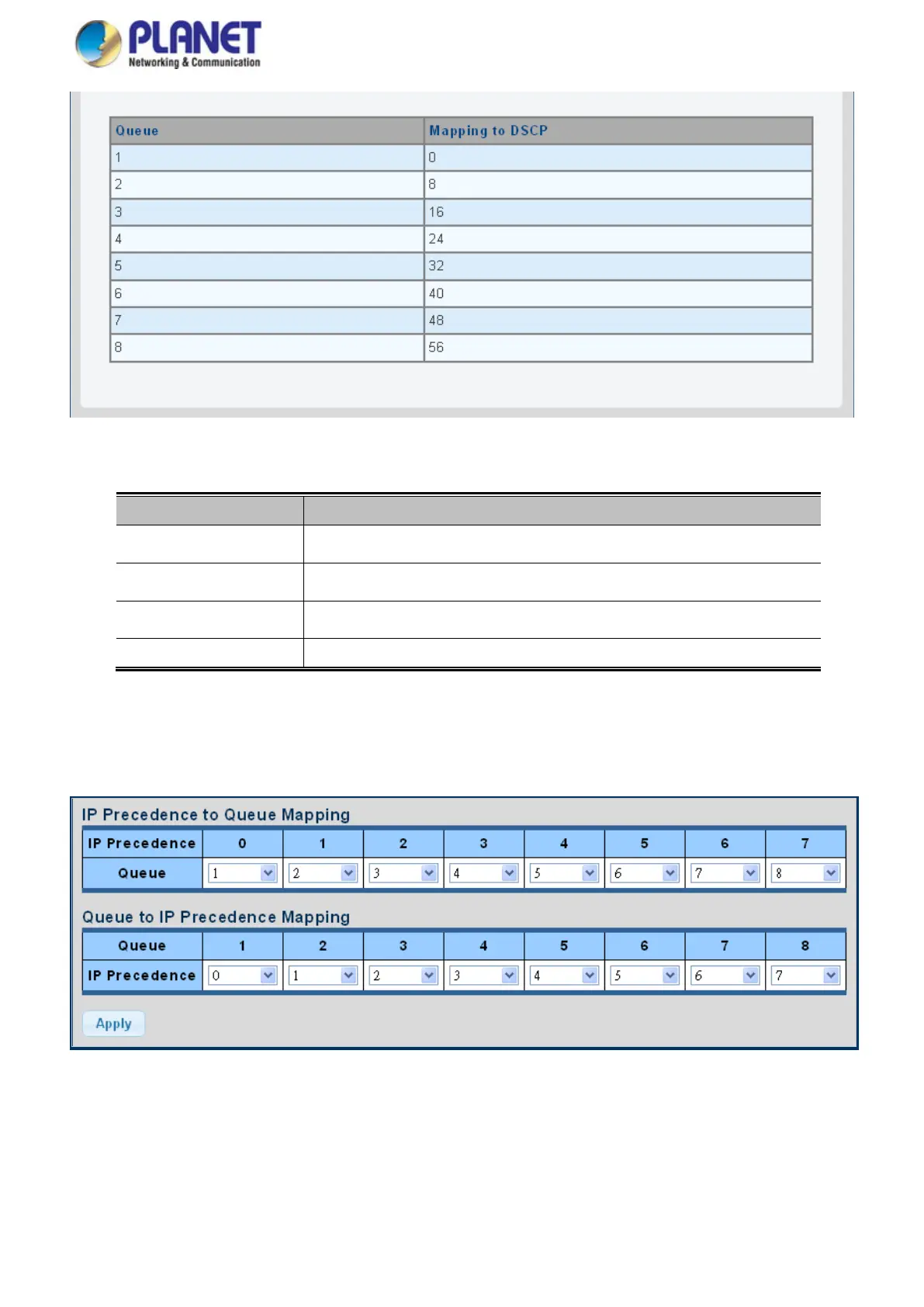

Figure 4-12-11: IP Precedence to Queue and Queue to IP Precedence Mapping Page Screenshot
