• General Query TX
Displays the current general query TX.
• Special Group Query
TX
Displays the current special group query TX.
• Special Group &
Source Query TX
Displays the current special group & source query TX.
Buttons
: Click to clear the MLD Snooping Statistics.
4.9.8 MLD Filter Setting
The Filter Setting and Status screens in Figure 4-9-14 and Figure 4-9-15 appear.

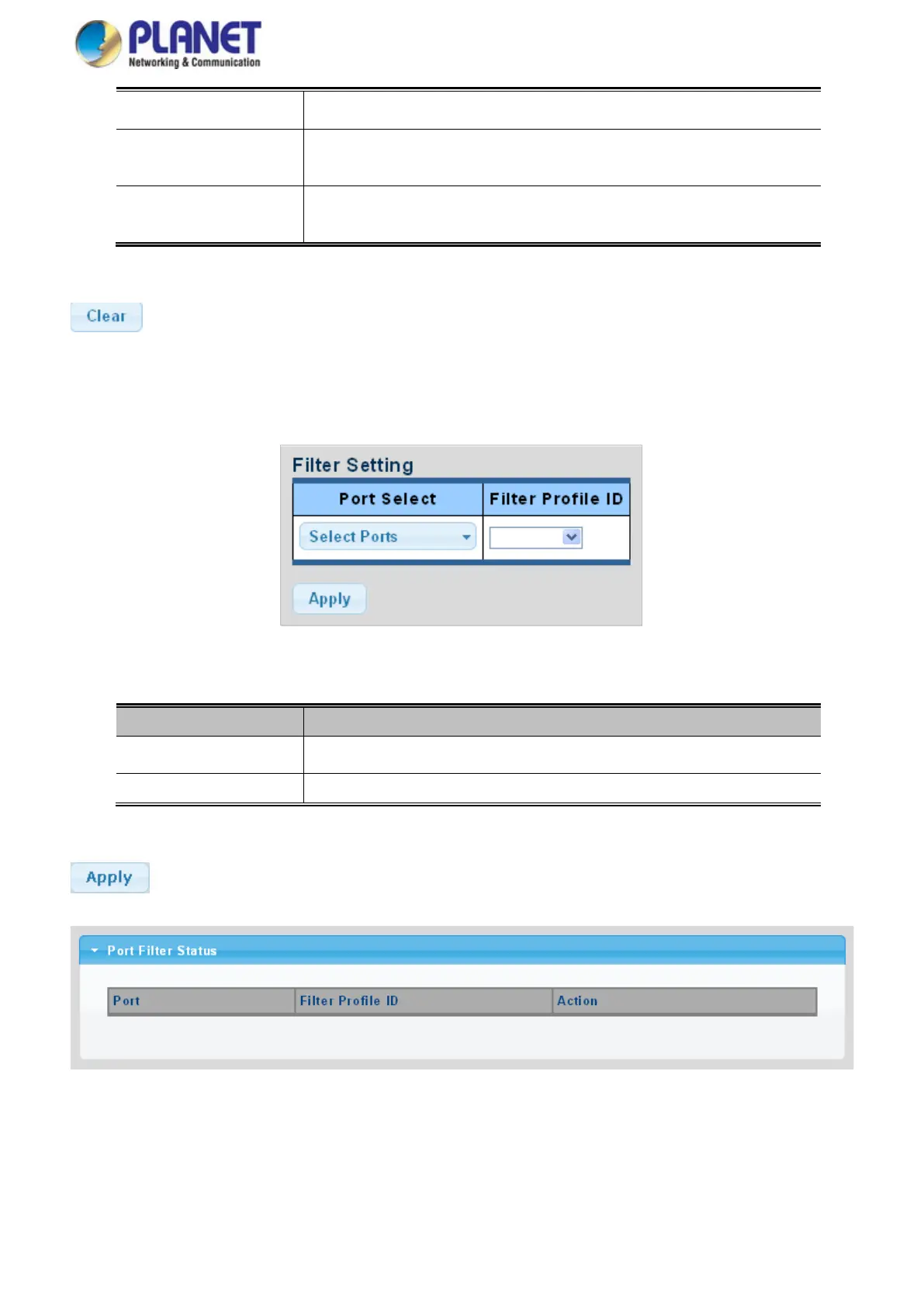

Figure 4-9-14: Filter Setting Page Screenshot
The page includes the following fields:
Object Description
• Port Select
Select port number from this drop-down list.
• Filter Profile ID
Select filter profile ID from this drop-down list.
Buttons
: Click to apply changes.
Figure 4-9-15: Port Filter Status Page Screenshot
