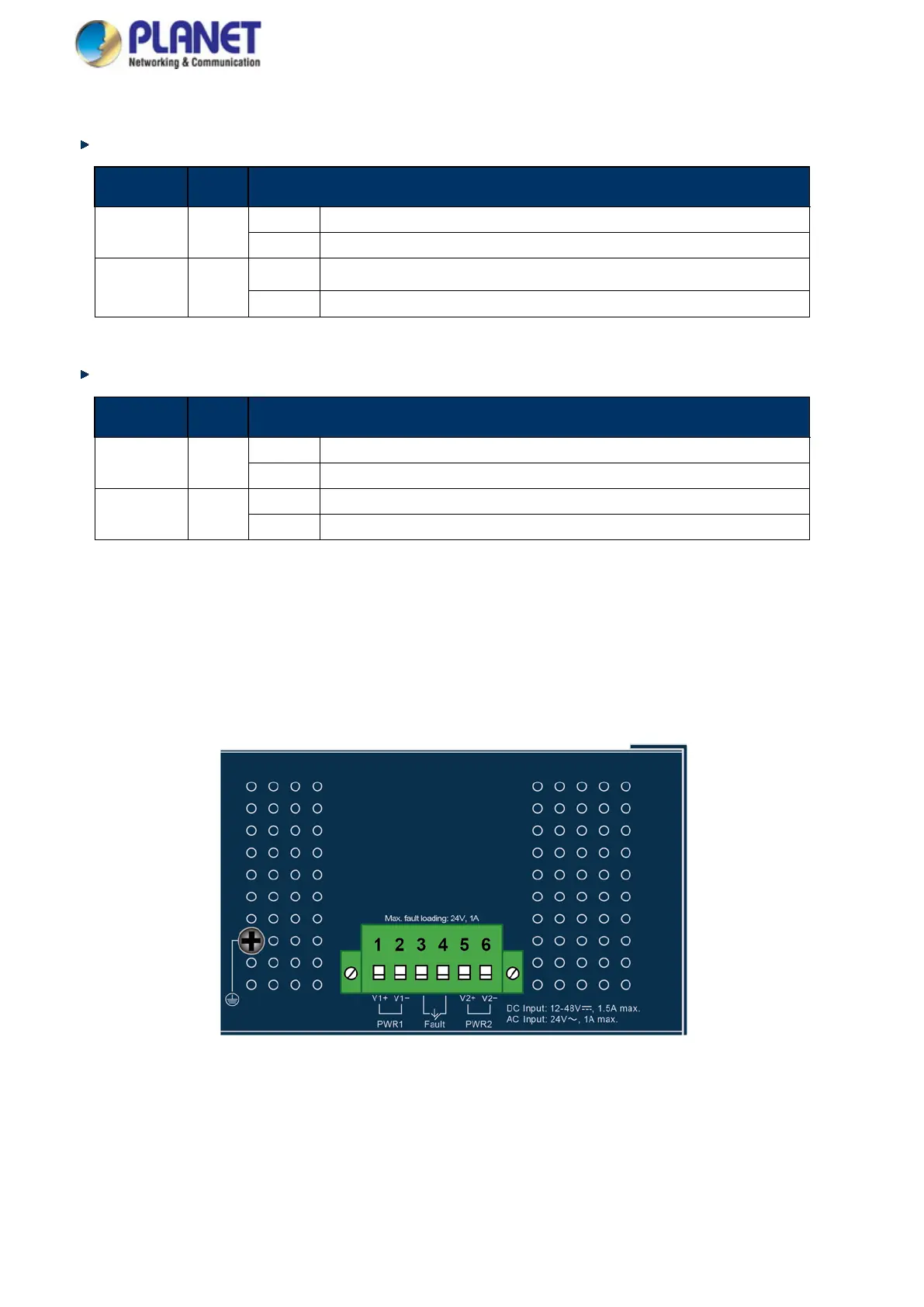

User’s Manual of IGS-4215-16T2S
Per 10/100/1000BASE-T Port
LED Color Function
1000
LNK/ACT
Green
Lights:
To indicate the link through that port is successfully established at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
10/100
LNK/ACT
Amber
Lights:
To indicate the port is successfully established at 10/100Mbps.
Blinks:
To indicate that the Switch is actively sending or receiving data over that port.
Per 100/1000BASE-SX/LX/BX SFP Interface
LED Color Function
1000
LNK/ACT
Green
Lights:
To indicate the link through that port is successfully established at
.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
100Mbps
LNK/ACT
Orange
Lights
To indicate the port is running at
and successfully established.
Blinks
To indicate that the switch is actively sending or receiving data over that port.
2.1.4 Switch Upper Panel
The upper panel of the Industrial Managed Switch consists of one terminal block connector within two DC power inputs. Figure
2-1-4 shows the upper panel of the Industrial Managed Switch.
Figure 2-1-4: Top View
