User’s Manual of IGS-4215-16T2S
4.3 Port Management
Use the Port Menu to display or configure the Industrial Managed Switch's ports. This section has the following items:
Port Configuration Configures port configuration settings
Port Counters Lists Ethernet and RMON port statistics
Bandwidth Utilization Displays current bandwidth utilization
Port Mirroring Sets the source and target ports for mirroring
Jumbo Frame Sets the jumbo frame on the switch
Port Error Disable
Configuration
Configures port error disable settings
Port Error Disabled Status Disables port error status
Protected Ports Configures protected ports settings
EEE Configures EEE settings
SFP Module Information Displays SFP module information.
4.3.1 Port Configuration
This page displays current port configurations and status. Ports can also be configured here. The table has one row for each
port on the selected switch in a number of columns, which are:
The Port Configuration screens in Figure 4-3-1 and Figure 4-3-2 appear.

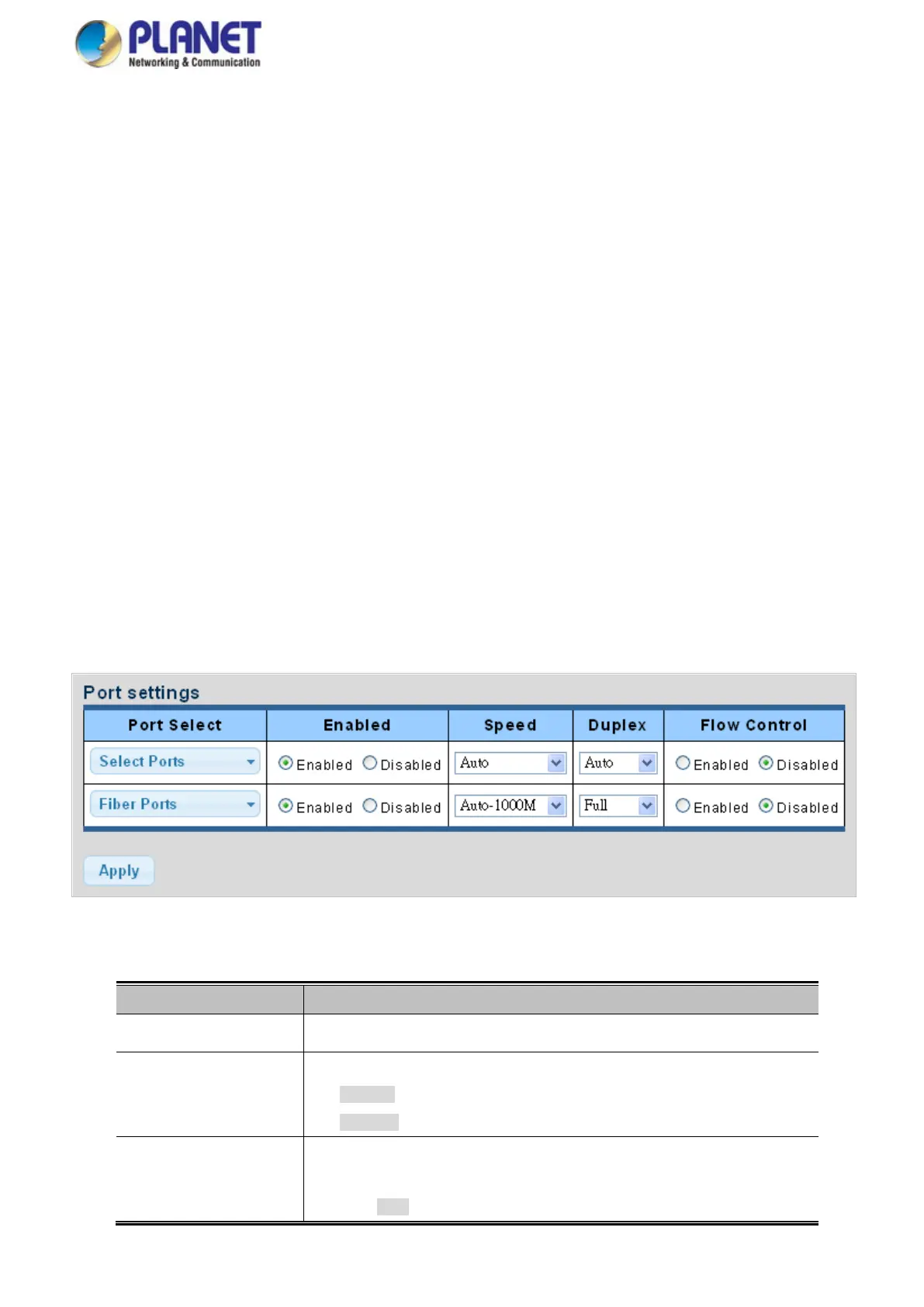

Figure 4-3-1: Port Settings Page Screenshot
The page includes the following fields:
Object Description
• Port Select
Select port number for this drop down list.
• Enabled
Indicates the port state operation. Possible state are:
Enabled - Start up the port manually.
Disabled – Shut down the port manually.
• Speed
Select any available link speed for the given switch port. Draw the menu bar to
select the mode.
Auto – Set up Auto negotiation.
