4.5.4 Create VLAN
Create/delete VLAN on this page. The screens in Figure 4-5-3 and Figure 4-5-4 appear.

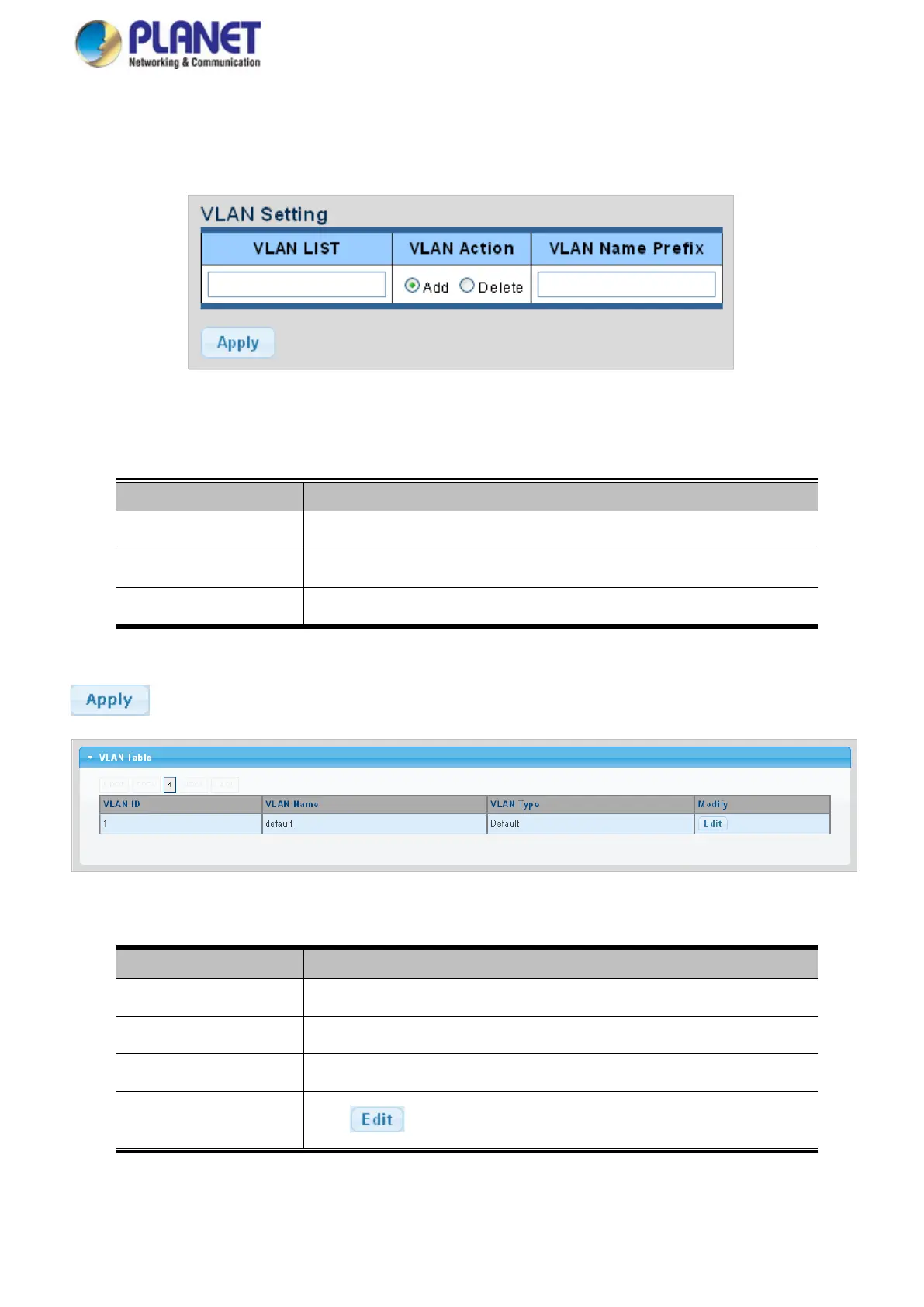

Figure 4-5-3: VLAN Setting Page Screenshot
The page includes the following fields:
Object Description
• VLAN List
Indicates the ID of this particular VLAN.
• VLAN Action
This column allows users to add or delete VLAN s.
• VLAN Name Prefix
Indicates the name of this particular VLAN.
Buttons
: Click to apply changes.
Figure 4-5-4: VLAN Table Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
Displays the current VLAN ID entry.
• VLAN Name
Displays the current VLAN ID name.
• VLAN Type
Displays the current VLAN ID type.
• Modify
Click to modify VLAN configuration.
