User’s Manual of IGS-4215-16T2S

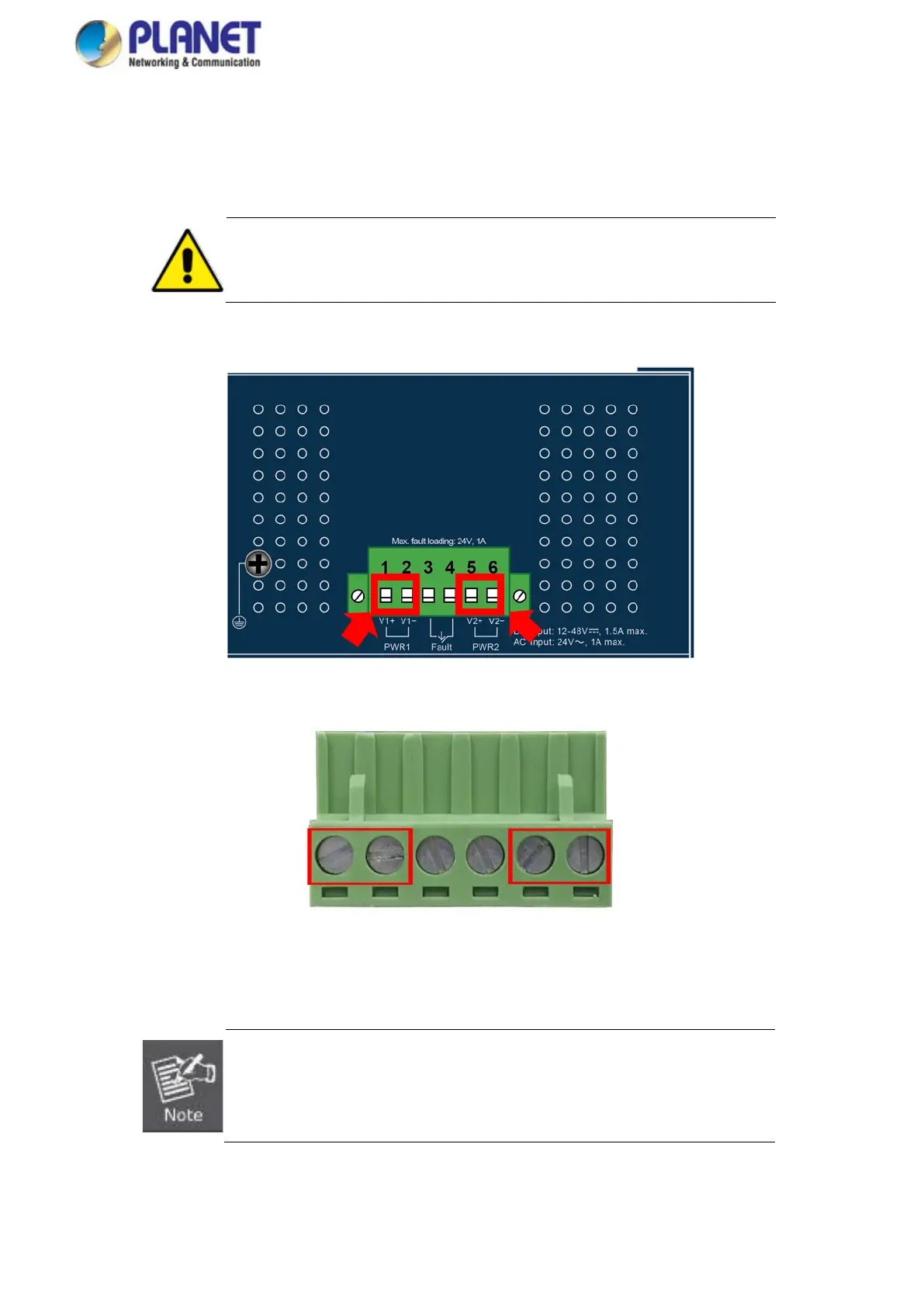

2.1.5 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial Ethernet Switch is used for two redundant power inputs.
Please follow the steps below to insert the power wire.
When performing any of the procedures like inserting the wires or tightening the
wire-clamp screws, make sure the power is OFF to prevent from getting an electric
shock.
1. Insert positive/negative DC power wires into Contacts 1 and 2 for Power 1, or 5 and 6 for power.
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1 2 3 4 5 6
Power 1 Fault Power 2
+ - + -
1. The wire gauge for the terminal block should be in the range between 12 and 24
AWG.
2. The power input range is DC 12V ~ 48V and supports AC 24V.
3. Use one power input when using AC 24V.
