The page includes the following fields:
Object Description
• Port
The switch port number of the logical port.
• CoS Value
Displays the current CoS value.
• Remark CoS
Displays the current remark CoS.
• Remark DSCP
Displays the current remark DSCP.
• Remark IP Precedence
Displays the current remark IP precedence.
4.12.2.3 Queue Settings
The Queue Table and Information screens in Figure 4-12-5 and Figure 4-12-6 appear.

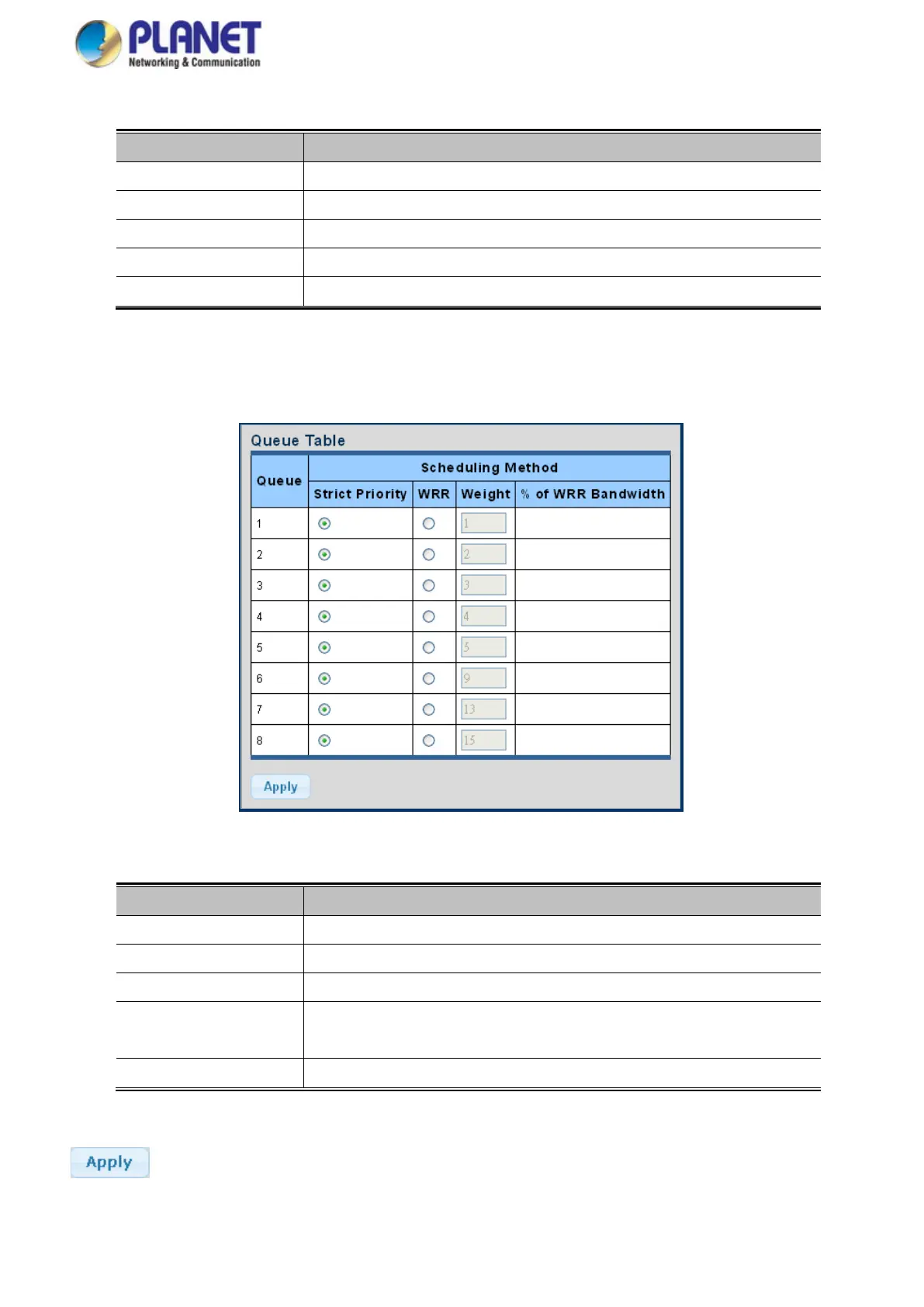

Figure 4-12-5: Queue Table Page Screenshot
The page includes the following fields:
Object Description
• Queue
Displays the current queue ID.
• Strict Priority
Controls whether the scheduler mode is "Strict Priority" on this switch port.
• WRR
Controls whether the scheduler mode is "Weighted" on this switch port.
• Weight
Controls the weight for this queue. This value is restricted to 1-100. This
parameter is only shown if "Scheduler Mode" is set to "Weighted".
• % of WRR Bandwidth
Displays the current bandwidth for each queue.
Buttons
: Click to apply changes.
