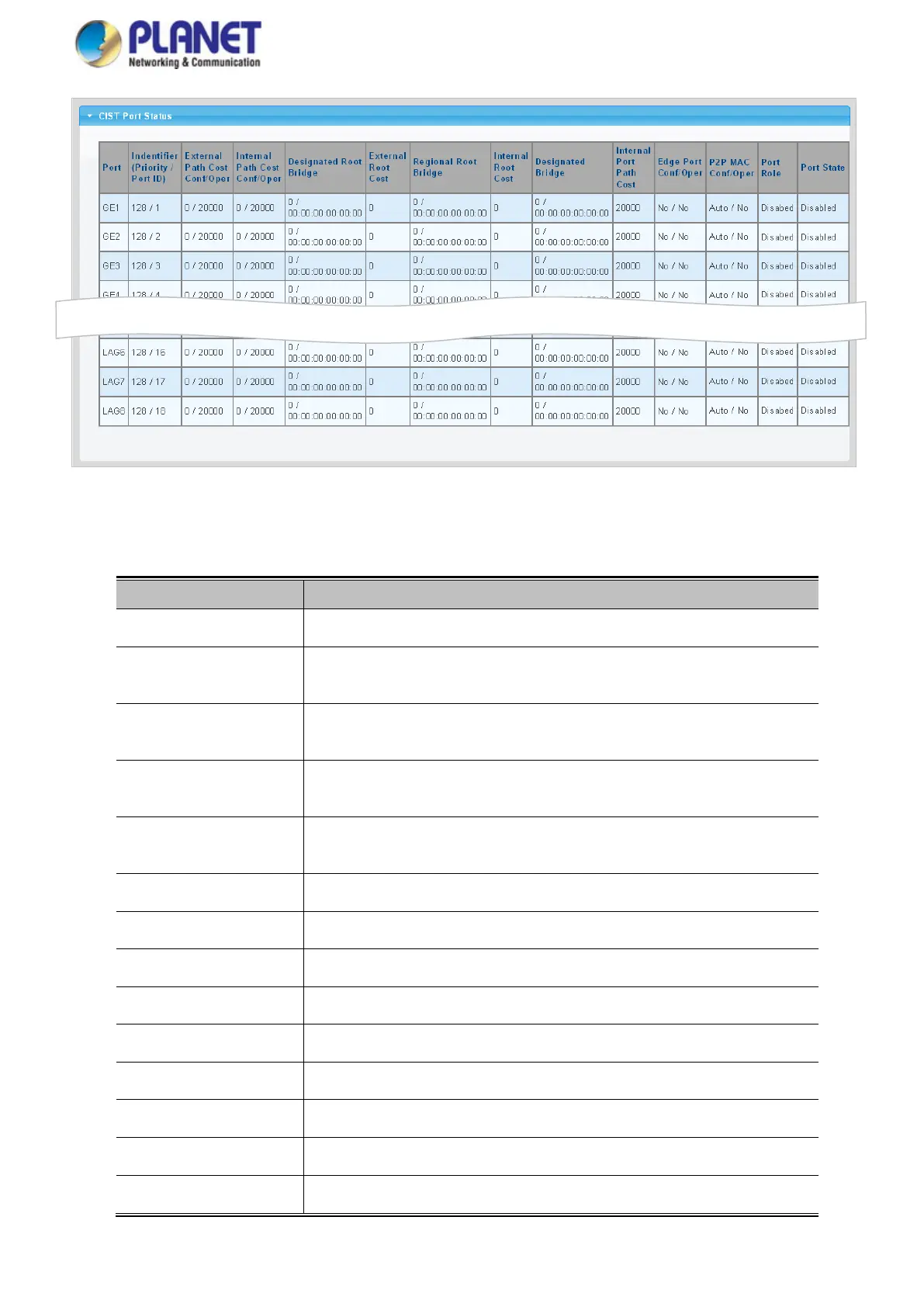

Figure 4-6-11: CIST Port Status Page Screenshot
The page includes the following fields:
Object Description
• Port
The switch port number of the logical STP port.
• Indentifier (Priority /
Port ID)
Displays the current indentifier (Priority / Port ID).
• External Path Cost
Conf/Oper
Displays the current external path cost conf/oper.
• Internal Path Cost
Conf/Oper
Displays the current internal path cost/oper.
• Designated Root
Bridge
Displays the current designated root bridge.
• External Root Cost
Displays the current external root cost.
• Regional Root Bridge
Displays the current regional root bridge.
• Internal Root Cost
Displays the current internal root cost.
• Designated Bridge
Displays the current designated bridge.
• Internal Port Path Cost
Displays the current internal port path cost.
• Edge Port Conf/Oper
Displays the current edge port conf/oper.
• P2P MAC Conf/Oper
Displays the current P2P MAC conf/oper.
• Port Role
Displays the current port role.
• Port State
Displays the current port state.
