WGS-4215-8T2S LED Indication

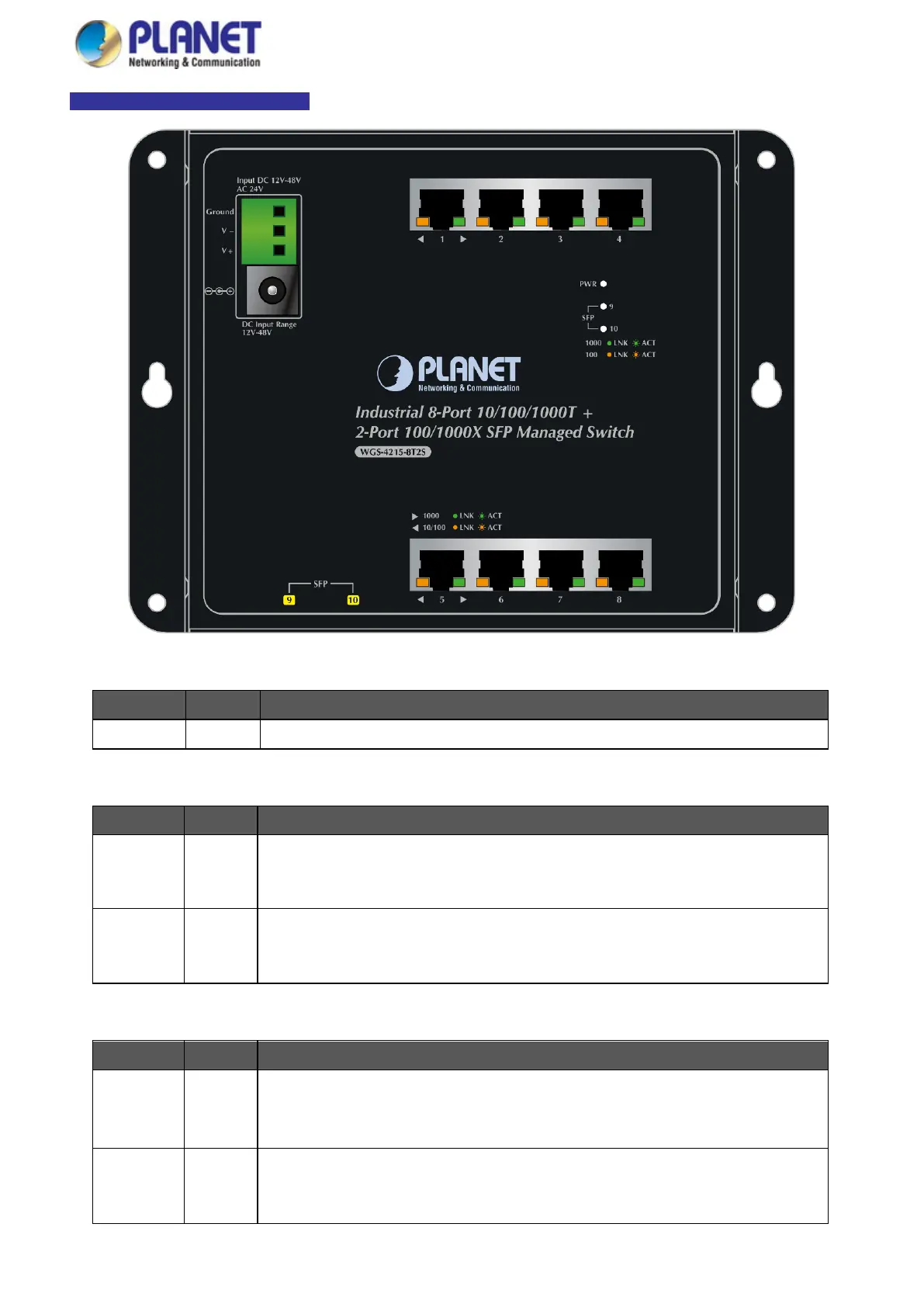

Figure 2-1-2c WGS-4215-8T2S LED Panel
■ System
LED Color Function
PWR Green
Lights to indicate that the Switch has power.
■ 10/100/1000BASE-T Interfaces (Port-1 to Port-8)
LED Color Function
10/100
LNK/ACT
Amber
Lights: To indicate the link through that port is successfully established and operating at
10/100Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
1000
LNK/ACT
Green
Lights: To indicate the link through that port is successfully established and operating at
1000Mbps
.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
■ 100/1000BASE-X Interfaces (Port-9 to Port-10)
LED Color Function
100
LNK/ACT
Amber
Lights:
To indicate the link through that port is successfully established and operating at
100Mbps
.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
1000
LNK/ACT
Green
Lights:
To indicate the link through that port is successfully established and operating at
1000Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
