User’s Manual of WGS Managed Series
WGS-4215-8P2S LED Indication

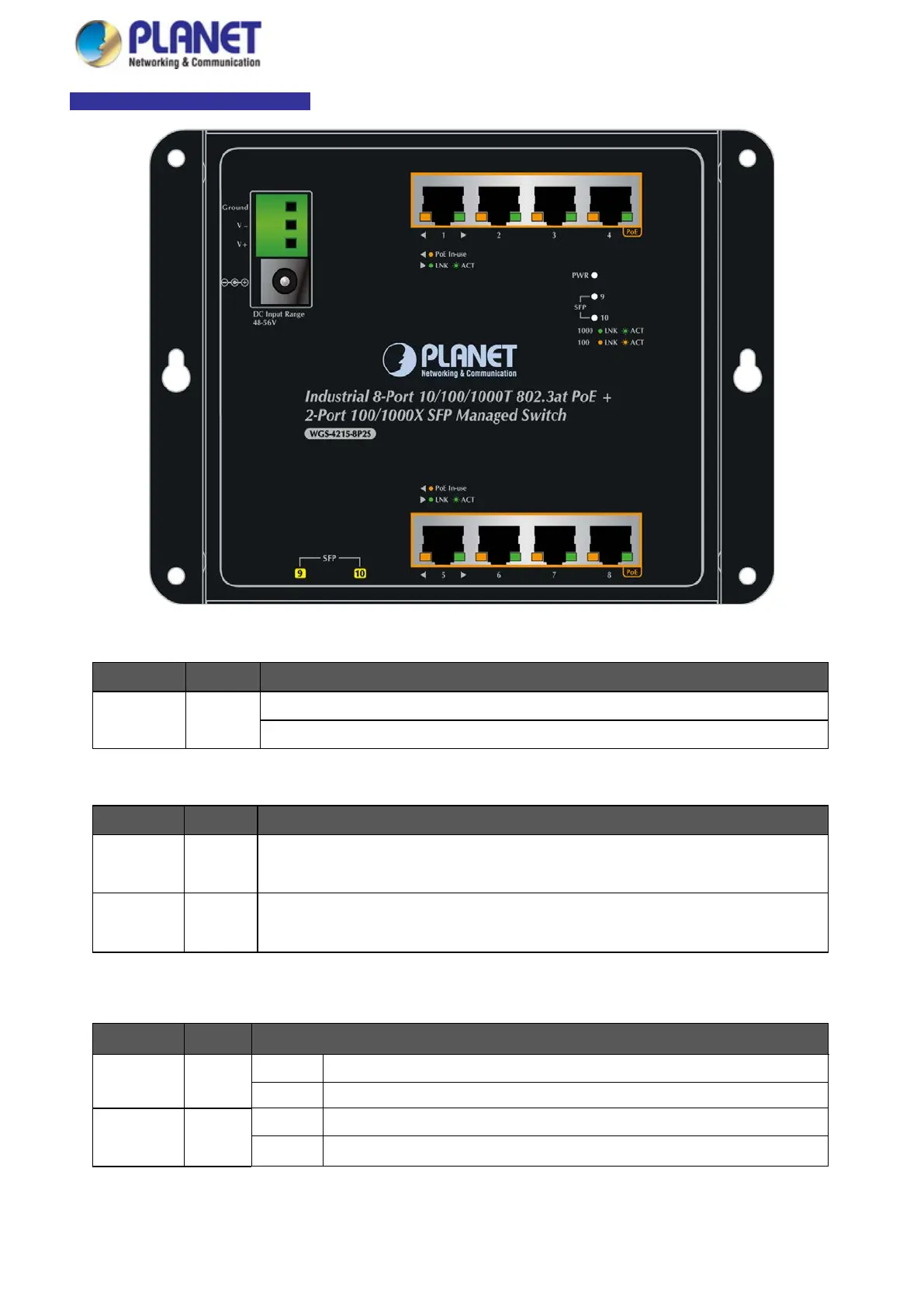

Figure 2-1-2d WGS-4215-8P2S LED Panel
■ System
LED Color Function
PWR Green
Lights to indicate that the Switch has power.
Blinks to indicate the system of the Switch is booting
■ PoE 10/100/1000BASE-T Interfaces (Port-1 to Port-8)
LED Color Function
LNK/ACT Green
Lights: To indicate the link through that port is successfully established.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
PoE Amber
Lights: To indicate the port is providing DC in-line power.
Off: To indicate the connected device is not a PoE Powered Device (PD)
Per 100/1000X SFP Interface (Port9 to Port10)
LED Color Function
1000
LNK/ACT
Green
Lights: It indicates the link through that port is successfully established at 1000Mbps.
Blinks: It indicates that the Switch is actively sending or receiving data over that port.
100
LNK/ACT
Amber
Lights: It indicates the link through that port is successfully established at 100Mbps.
Blinks: It indicates that the Switch is actively sending or receiving data over that port.
