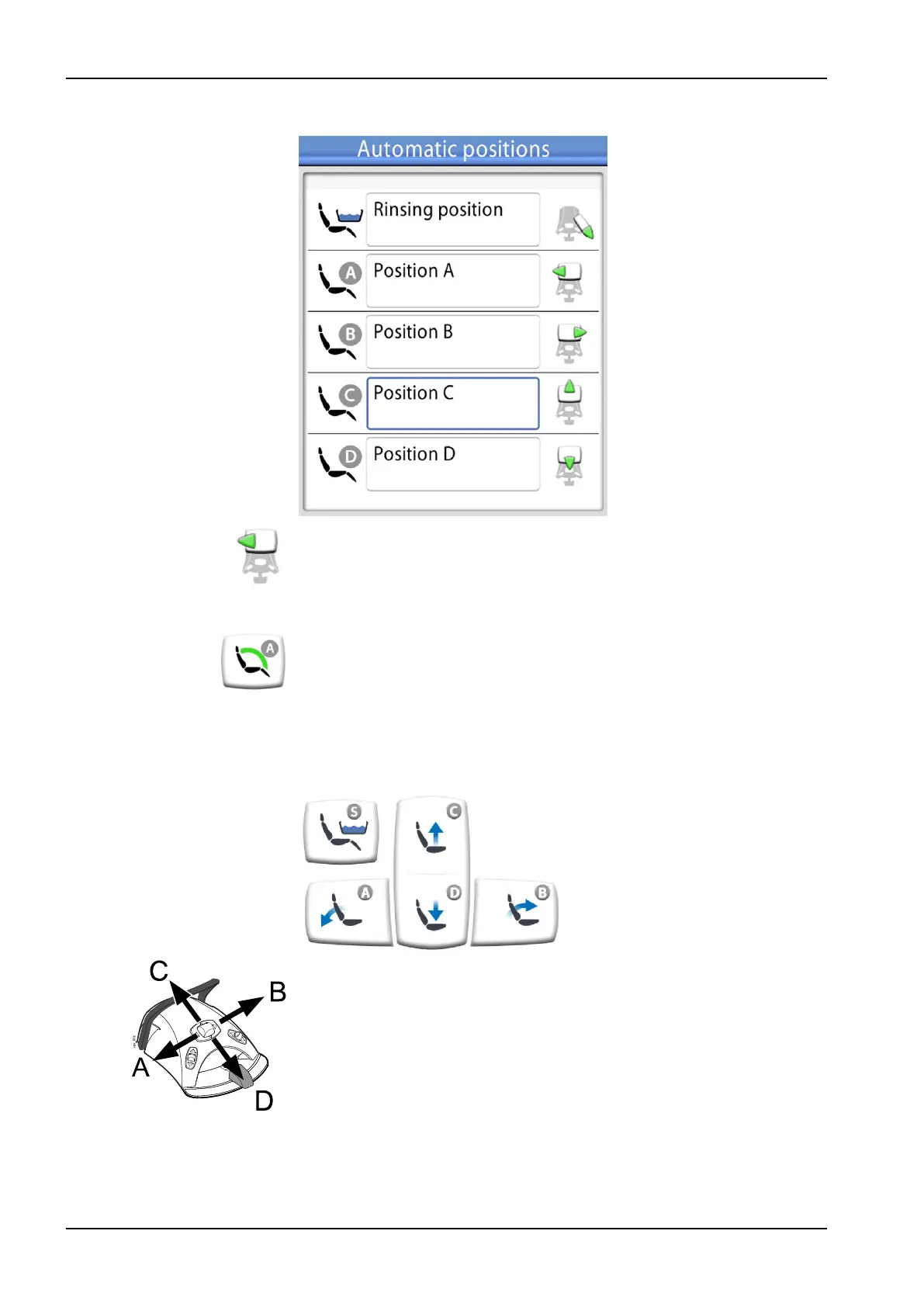

The position you are currently in is marked by a blue frame.
Foot control: A foot control symbol on the right side of the automatic position
on the list indicates in which direction you must push the right-side or centre
knob to drive the chair to the preprogrammed automatic position.
For information on how to adjust the preprogrammed automatic positions,
see section "Extended view" on page 174.
When the chair is in an automatic position, the current position is displayed
on the Chair positions button in the main window.
Traditional view
Control panel: To move the chair to a preprogrammed position, press briefly
the corresponding chair position button.
Foot control: Push the centre knob briefly to the position (A, B, C or D)
where the preprogrammed chair position has been stored. The chair will
move automatically to the preprogrammed position.
20 Operating patient chair
104 Planmeca Compact i User's manual
