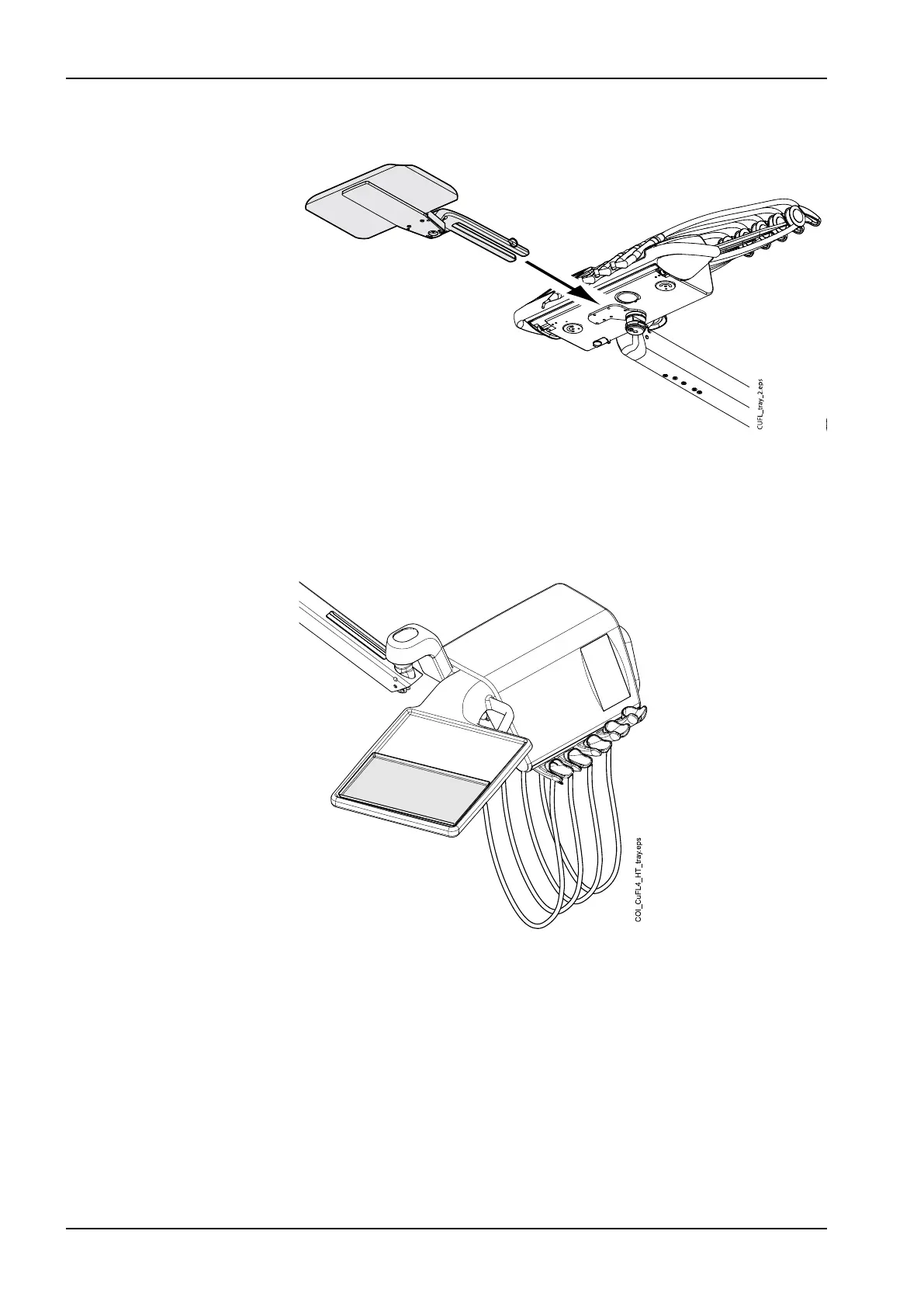

The mounting arm can be attached to the instrument console by pushing it to
its position.
10.5.2 Integrated tray table
The integrated tray table is available for OP-deliveries with hanging-tube
instruments. The maximum load on the tray table is 2 kilograms (4.4 lbs).
The integrated tray table is located on the left side of the instrument console.
10.5.3 Top tray table
The top tray table is placed on top of the instrument console and is available
for OP-deliveries with hanging-tube instruments and for the mobile cart. The
maximum load on the top tray table is 2 kilograms (4.4 lbs).
10 Instrument system
44 Planmeca Compact i User's manual
