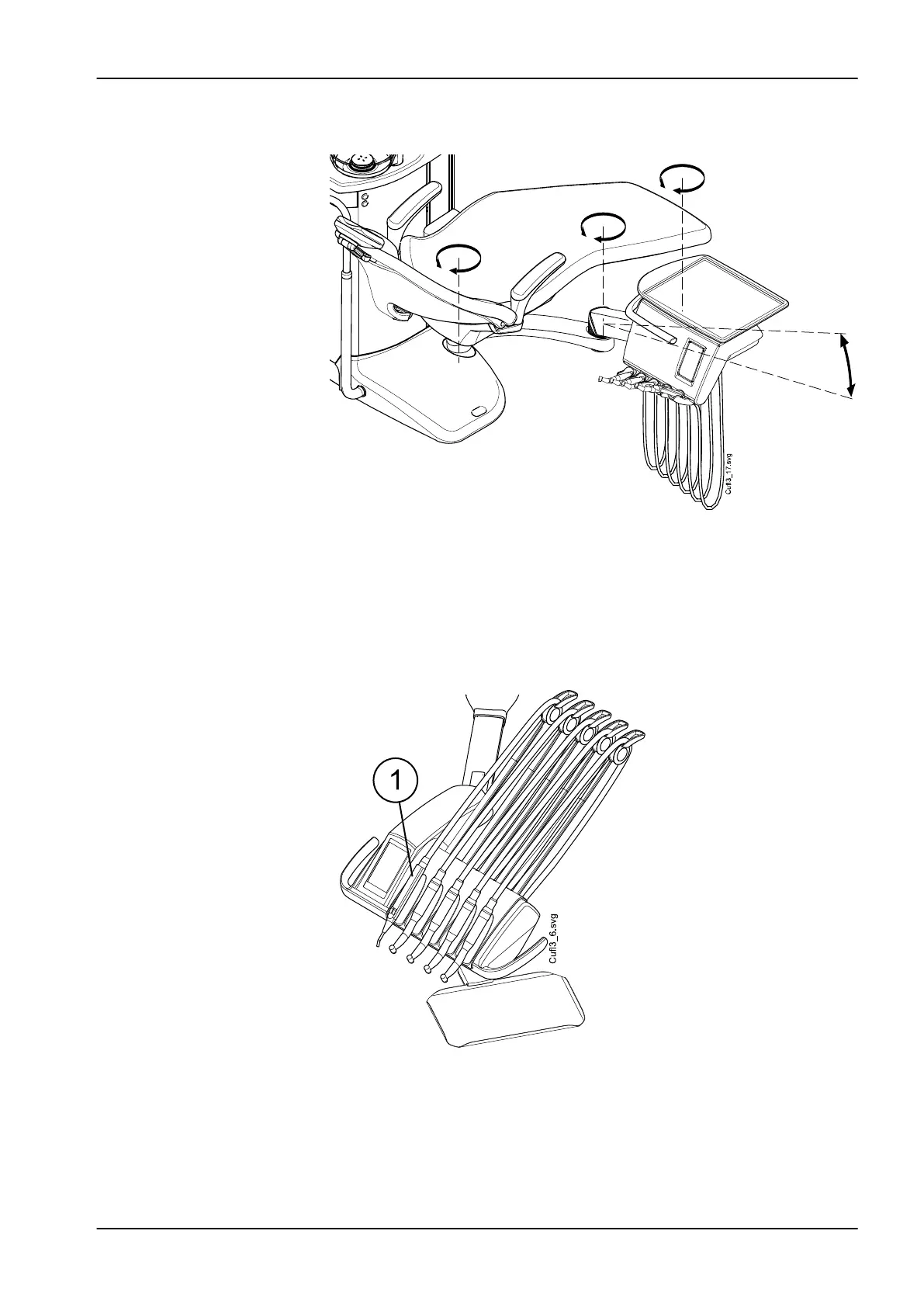

The rotation area of the side delivery arm is presented in the illustration
below.
10.2 Instrument console
10.2.1 Instrument console with balanced instrument arms
The console can be equipped with up to five instruments.
The leftmost position is reserved for the syringe only. The other instruments
can be positioned in any order in the four remaining positions.
1. Syringe
10 Instrument system
User's manual Planmeca Compact i 37
